Synthetic lubricants must not be mixed with mineral-based lubricants!
|
| |
|
|
|
On-site lubrication with “Molykote PG-75”, ABUS item number 5168.
Lubrication ex works with “Molykote PG-75”, ABUS item number 411.
Lubricate the wire rope during:
─ Wire rope change
─ Cable guide change
─ Regular inspection
─ General overhaul
For details, see Cleaning and lubricating the cable drum.
|
| |
|
|
|
On-site lubrication with “Chainlife S”, ABUS item number 2717
Lubrication ex works with “Chainlife S”, ABUS item number 2718.
Alternatives:
─ Castrol “Viscogen KL 23”
─ Klüber “Grafloscon CA 901 Ultra Spray”
─ Optimol “KL 23”
─ Shell “Malleus GL 95”
Lubricate the wire rope during:
─ Wire rope change
─ Regular inspection
─ General overhaul
For details, see Cleaning and lubricating the cable drum.
|
|
On-site lubrication with “Molykote PG-75”, ABUS item number 5168.
Lubrication ex works with “Molykote PG-75”, ABUS item number 411.
Lubricate the rope guide runner during:
─ Wire rope change
─ Cable guide change
─ Regular inspection
─ General overhaul
For details, see Replacing wire rope with reeving 2/1, 4/1 or 6/1.
|
|
On-site lubrication with “High temperature paste PBC 1574”, ABUS item number 6758.
Lubrication ex works with “High-Lub LT1 EP”, ABUS item number 317880.
Lubricate the load hook crosshead during:
─ Assembly and disassembly
─ General overhaul
|
|
On-site lubrication with “Molykote PG-75”, ABUS item number 5168.
Lubrication ex works with “High-Lub LT1 EP”, ABUS item number 317880.

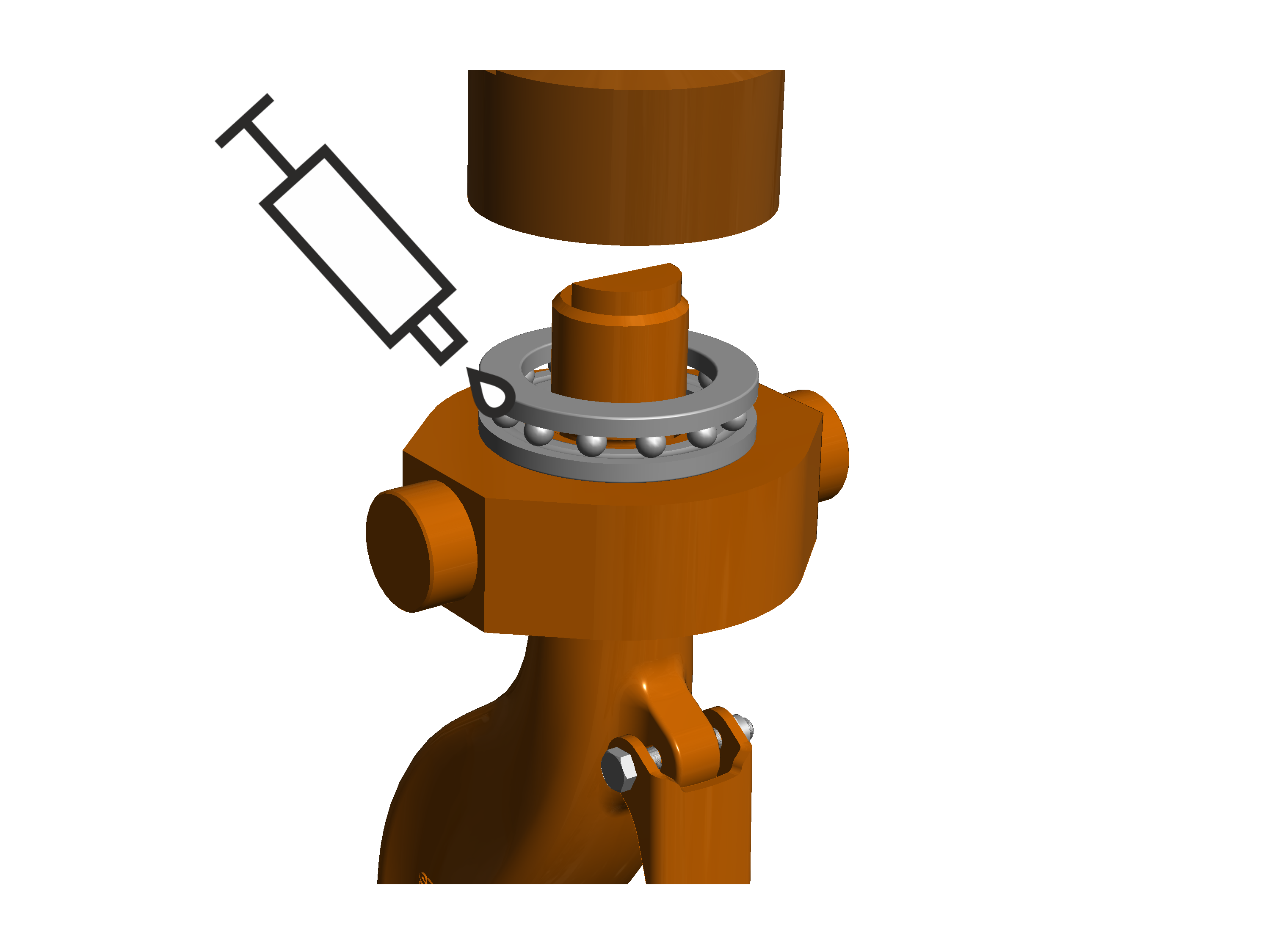

Lubricate the deep groove ball thrust bearing during:
─ Assembly and disassembly
─ General overhaul
|
|
On-site lubrication with “High temperature paste PBC 1574”, ABUS item number 6758.
Lubrication ex works with “High-Lub LT1 EP”, ABUS item number 317880.
Lubricate the rope socket during:
─ Wire rope change
─ Regular inspection
─ General overhaul
For details, see Exchanging the fixed point crosshead with rope socket and rope wedge.
|
|
On-site lubrication with “High temperature paste PBC 1574”, ABUS item number 6758.
Lubrication ex works with “High-Lub LT1 EP”, ABUS item number 317880.
Lubricate bolt for:
─ Assembly or disassembly of the deflection roller
─ General overhaul
For details, see Replacing deflection roller crosshead for reeving 4/1 or 6/1 or Replacing deflection roller crosshead for reeving 4/2 or 8/2.
|
|
On-site lubrication with “High temperature paste PBC 1574”, ABUS item number 6758.
Lubrication ex works with “High-Lub LT1 EP”, ABUS item number 317880.
Lubricate the hinge pin for:
─ Assembling or disassembling the end carriage
|
|
On-site lubrication with “High temperature paste PBC 1574”, ABUS item number 6758.
Lubrication ex works with “High-Lub LT1 EP”, ABUS item number 317880.
Lubricate the hinge pin for:
─ Assembling or disassembling the end carriage
|
|
On-site lubrication with “High temperature paste PBC 1574”, ABUS item number 6758.
Lubrication ex works with “High-Lub LT1 EP”, ABUS item number 317880.
Lubricate bearing bush (on collar bolt) during:
─ Assembly and disassembly of the deflection roller crosshead or fixed point crosshead
─ General overhaul
For details, see Exchanging the fixed point crosshead with rope socket and rope wedge or Replacing deflection roller crosshead for reeving 4/1 or 6/1.
|
|
On-site lubrication with “High temperature paste PBC 1574”, ABUS item number 6758.
Lubrication ex works with “OKS 511 bonded coating”, item number 18930 and “High-Lub LT1 EP”, ABUS item number 317880.
Lubricate the contact surfaces of the deflection roller crosshead for:
─ Assembling and disassembling the deflection roller crosshead
─ General overhaul.
For details, see Replacing deflection roller crosshead for reeving 4/1 or 6/1.
|
|
On-site lubrication with “High-Lub LT1 EP”, ABUS item number 317880.
Lubrication ex works with “High-Lub LT1 EP”, ABUS item number 317880.
Lubricate the self-aligning roller bearing during:
─ Assembling and disassembling the self-aligning roller bearing
─ General overhaul
