Confirm using the “OK” button.
Depending on the fault, the transmitters and receivers have to be reset differently.
In the event of transmitter faults:
● A message appears on the display.
Confirm using the “OK” button.
In the event of severe transmitter faults:
● A message appears on the display.
There is no button available.
Unscrew the cover cap from the battery compartment, wait several
seconds, then screw the cover back on and log in.
If the fault persists: Contact ABUS Service. See ABUS Service.
In the event of receiver faults:
● A message appears on the display which begins with “Receiver”.
Switch off the crane at the mains switch.
Wait at least 60 seconds.
● Message 101 “Receiver disconnected” appears on the display.
Switch on the crane at the mains switch.
Log in the transmitter.
If the fault persists: Contact ABUS Service. See ABUS Service.
In the event of ABURemote faults:
|
|
Fault code |
|
| |
● A message with the fault code appears on the display.
In the event of LIS-SV faults:
|
| |
|
|
LIS fault code |
● The fault from the LIS-SV appears on the display in the same place as where the load is usually shown.
See the LIS-SV product manual.
|
Code |
Fault |
Possible cause |
Eliminating the fault |
|
|
Transmitter does not switch on when batteries are inserted. |
The transmitter was switched off when the batteries were removed. |
Switch on the transmitter. See Checking, switching on and releasing prior to beginning work |
|
|
The transmitter cannot be switched on. |
Batteries are discharged. The display may also show the battery symbol with the inscription “0%”. |
Charge the batteries. See Charging the transmitter in the charging cradle |
|
|
|
No batteries inserted. |
Insert charged batteries. See Inserting rechargeable batteries |
|
|
|
The On/Stop button is defective. |
Contact ABUS Service. See ABUS Service |
|
|
The transmitter does not log in (no message appears on the display) |
Exit the transmitter/receiver range. |
Reenter the transmitter/receiver range and log in again. |
|
|
|
The receiver was switched off. |
Switch the receiver on again. |
|
|
|
Radio interference |
Identify and eliminate the cause of the interference. |
|
|
|
|
Change the radio channel. See Changing the radio channel |
|
|
|
Another transmitter is logged in to the crane in tandem operation. |
Log the other transmitter out from tandem operation. See Operating cranes in tandem operation |
|
207 208 209 210 |
“Receiver: emergency stop relays faulty” |
The relay for the emergency stop function is faulty. |
Switch the crane off and back on again. If the fault appears again, contact ABUS Service. See ABUS Service |
|
|
|
The relay for the emergency stop function does not switch on although the receiver switches the signal (e.g. because the hoist limit switch has been activated on the hoist). |
Eliminate the cause for the main contactor of the crane switching off. |
|
105 |
“Wrong key! To switch on: press On/Stop button only” |
A button was pressed when switching on. |
Press ENTER, release all buttons, and switch on again. |
|
|
|
Button is defective. |
Contact ABUS Service. See ABUS Service |
|
101 |
“Receiver disconnected” |
The receiver was switched off. |
Switch the receiver on again. |
|
|
|
Radio interference |
Identify and eliminate the cause of the interference. |
|
|
|
|
Change the radio channel. See Changing the radio channel |
For ABURemote messages:
|
|
Information code |
|
| |

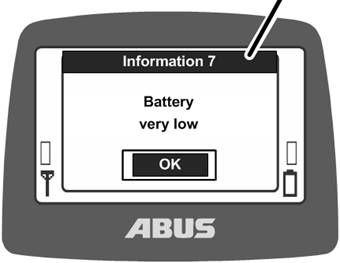

● A message with the information code appears on the display.
|
Code |
Information |
Cause |
Measure |
|
7 |
“Battery very low” |
The batteries are almost empty. |
Charge the batteries. See Charging the transmitter in the charging cradle. |
|
8 |
“Wrong code” |
The code entered is incorrect. |
Press ENTER, and enter the code again. |
|
9 |
“Scanning for free radio channel...” |
The CHANNEL CHANGE button was pressed. |
Wait until the transmitter has found a free radio channel. |
|
|
“On/Stop button activated! Press ENTER for release” |
The On/Stop button was pressed. |
Press ENTER to unlock. See Emergency stop. |
|
Charge state gauge |
Possible cause |
Measure |
|
Flashes red |
Transmitter does not lie properly in the charging cradle |
Remove the transmitter from the charging cradle and reinsert it |
|
|
Ambient temperature above 55°C (e.g. due to sunlight) |
Relocate the charging cradle to a different place |
|
Does not switch to red with the transmitter laid on it |
Transmitter does not lie properly in the charging cradle |
Remove the transmitter from the charging cradle and reinsert it |
|
|
Transmitter is not compatible with the charging cradle. See Charging the transmitter in the charging cradle. |
Charge the batteries in a standard battery charger. |
|
|
Batteries defective |
Insert new batteries. See Changing the batteries. |
|
|
No batteries inserted |
Insert new batteries. See Inserting rechargeable batteries. |
|
Alternating between red and white
|
Transmitter does not lie properly in the charging cradle |
Remove the transmitter from the charging cradle and reinsert it |
|
|
Batteries defective |
Insert new batteries. See Changing the batteries. |
|
|
No batteries inserted |
Insert new batteries. See Inserting rechargeable batteries. |
