Lubricants

Only for guide rollers



On-site lubrication with “High-Lub LT1 EP”, ABUS item number 318490.

Lubrication ex works with “High-Lub LT1 EP”,

ABUS item number 317880.

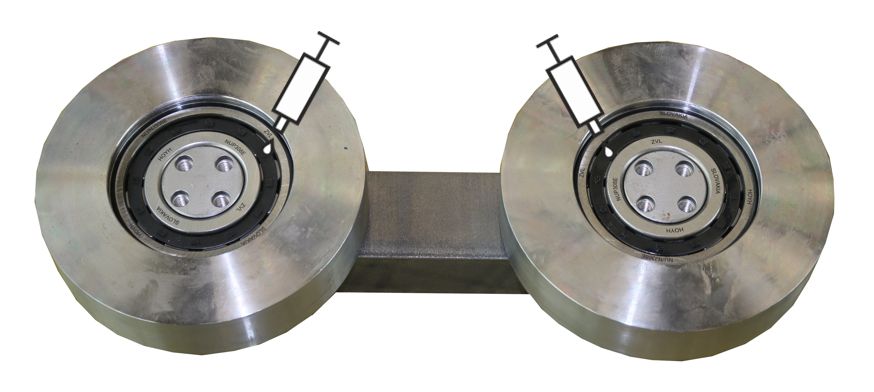

Lubricate the cylindrical roller bearing:

─     When assembling or disassembling the guide roller



Only with wheel size 350, 420, 500



On-site lubrication with “High-Lub LT1 EP”, ABUS item number 318490.

Lubrication ex works with “High-Lub LT1 EP”,

ABUS item number 317880.

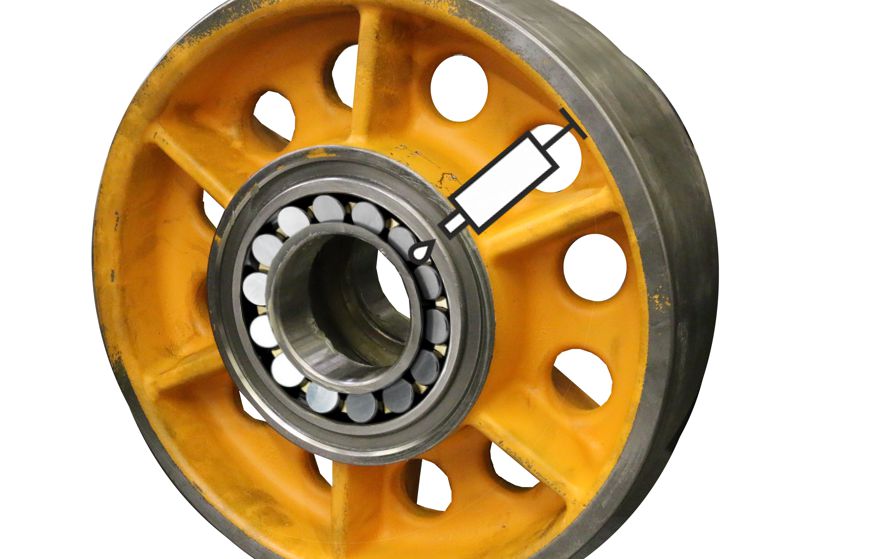

Lubricate the self-aligning roller bearing during:

─     Assembly or disassembly of the wheel

For details, see Disassembling the powered wheel.





Only with 8-wheel cranes



On-site lubrication with “High temperature paste PBC 1574”, ABUS item number 6758.

Lubrication ex works with “High temperature paste PBC 1574”, ABUS item number 1571.

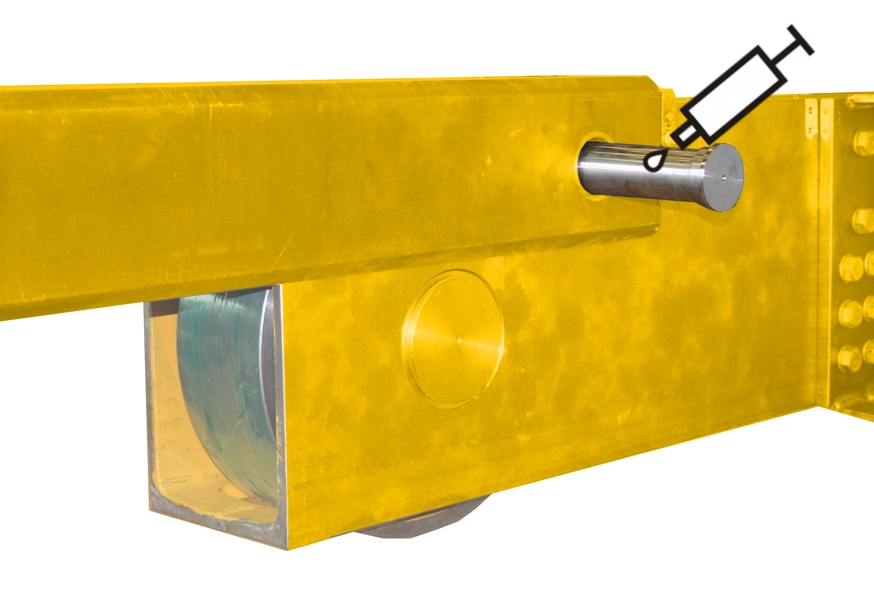

Lubricate the flanged bolt:

─     When the coupling bar is disassembled and reassembled (e.g. when the inner wheels are removed and installed).

For details, see Disassembling the non-powered wheel.
