Synthetic lubricants must not be mixed with mineral-based lubricants!
|
| |
|
|
|
On-site lubrication with “Molykote PG-75”, ABUS item number 5168.
Lubrication ex works with “Molykote PG-75”, ABUS item number 411.

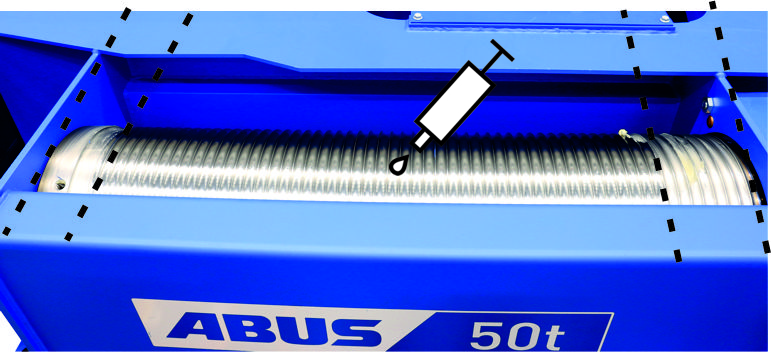

Lubricate the wire rope during:
─ Wire rope change
─ Cable guide change
─ Regular inspection
─ General overhaul
For details, see Cleaning and lubricating the cable drum.
|
| |
|
|
|
On-site lubrication with “Chainlife S”, ABUS item number 2717
Lubrication ex works with “Chainlife S”, ABUS item number 2718.
Alternatives:
─ Castrol “Viscogen KL 23”
─ Klüber “Grafloscon CA 901 Ultra Spray”
─ Optimol “KL 23”
─ Shell “Malleus GL 95”

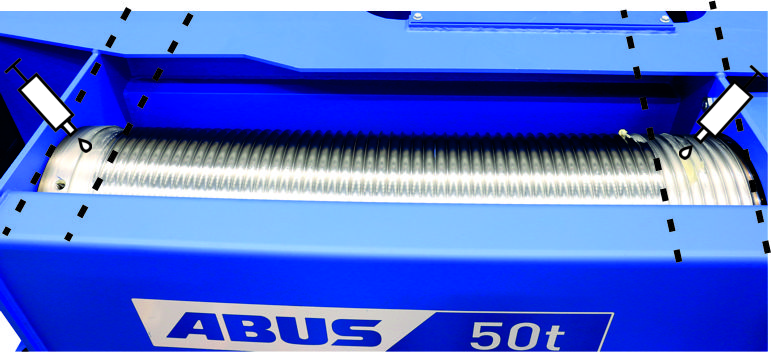

Lubricate the wire rope during:
─ Wire rope change
─ Regular inspection
─ General overhaul
For details, see Cleaning and lubricating the cable drum.
|
|
On-site lubrication with “Molykote PG-75”, ABUS item number 5168.
Lubrication ex works with “Molykote PG-75”, ABUS item number 411.

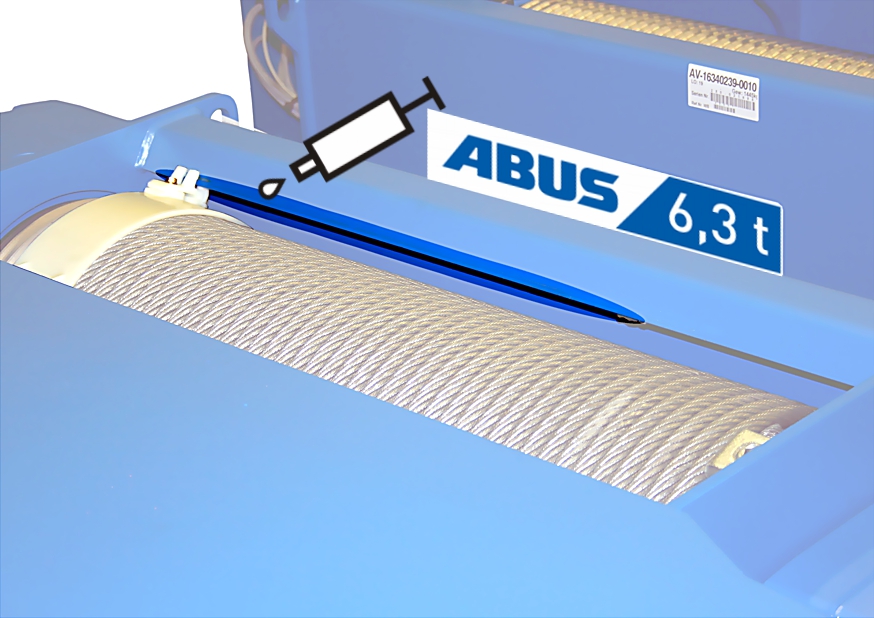

Lubricate the rope guide runner during:
─ Wire rope change
─ Cable guide change
─ Regular inspection
─ General overhaul
For details, see Replacing the wire rope.
|
|
On-site lubrication with “High temperature paste PBC 1574”, ABUS item number 6758.
Lubrication ex works with “High-Lub LT1 EP”, ABUS item number 317880.

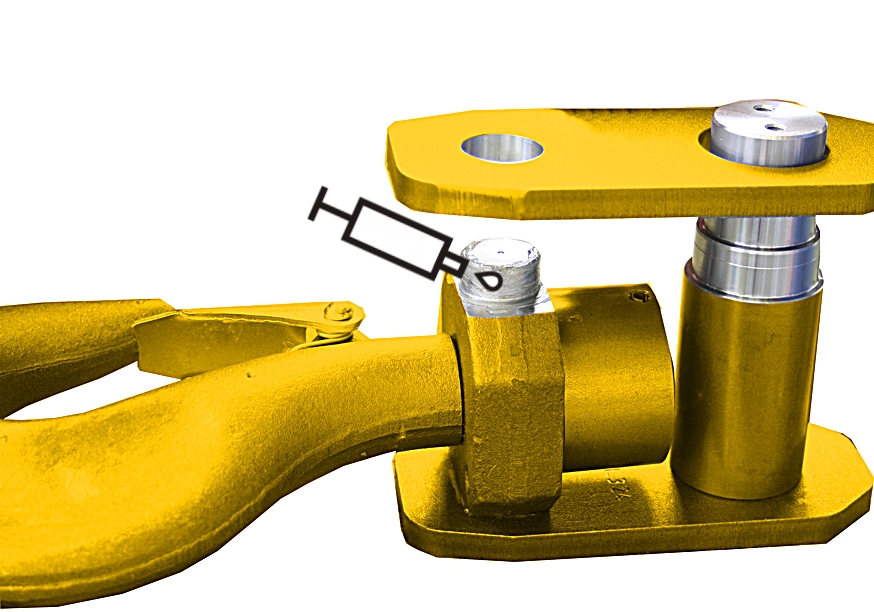

Lubricate the load hook crosshead during:
─ Assembly and disassembly
─ General overhaul
|
|
Lubrication ex works with multi-purpose grease “High-Lub LT1 EP”, item number 317880.
Quantity: Apply lubricant with brush to coat surface completely.

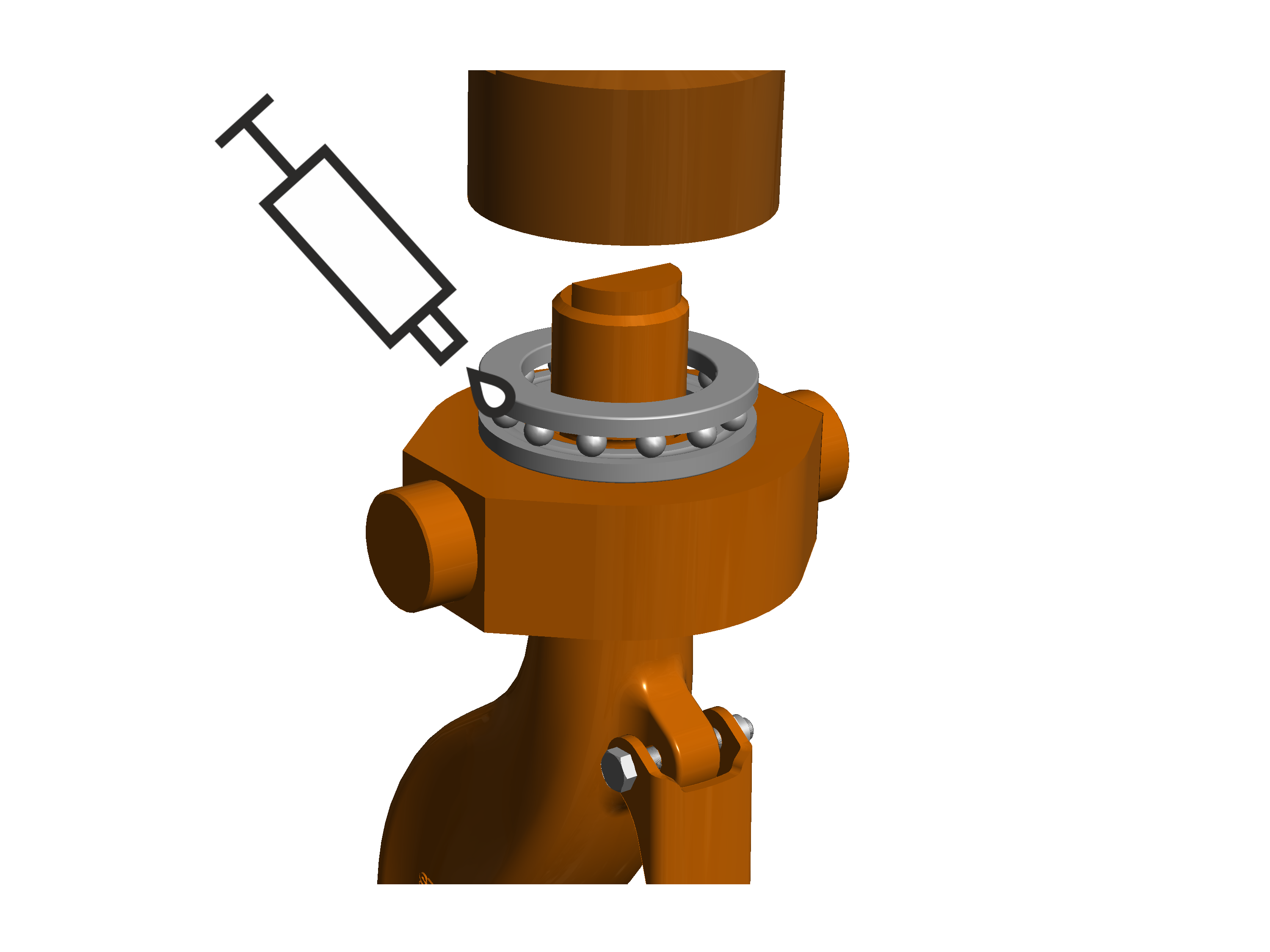

Lubricate the deep groove ball thrust bearing:
─ When the load hook is disassembled and reassembled
─ When carrying out a general overhaul
|
|
On-site lubrication with “High temperature paste PBC 1574”, ABUS item number 6758.
Lubrication ex works with multi-purpose grease “High-Lub LT1 EP”, item number 317880.

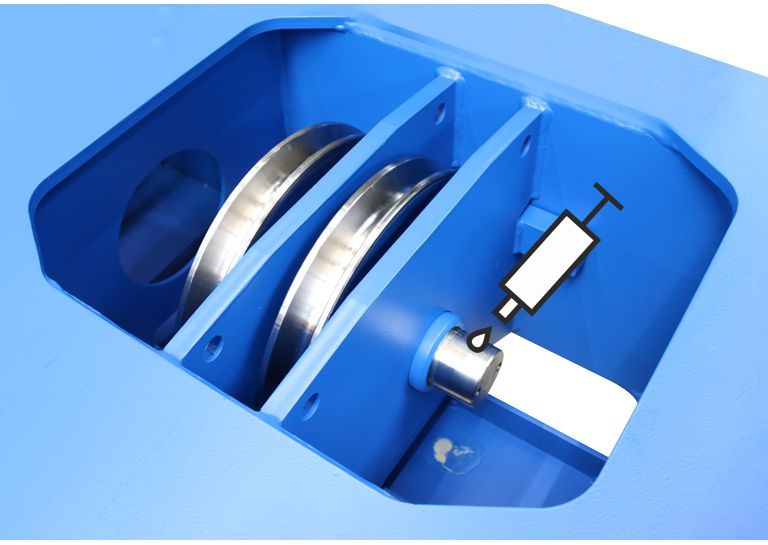

Lubricate the measurement bolt when:
─ Installing or removing the deflection rollers.
For details, see Replacing the deflection rollers.
|
|
On-site lubrication with “High temperature paste PBC 1574”, ABUS item number 6758.
Lubrication ex works with “High-Lub LT1 EP”, ABUS item number 317880.

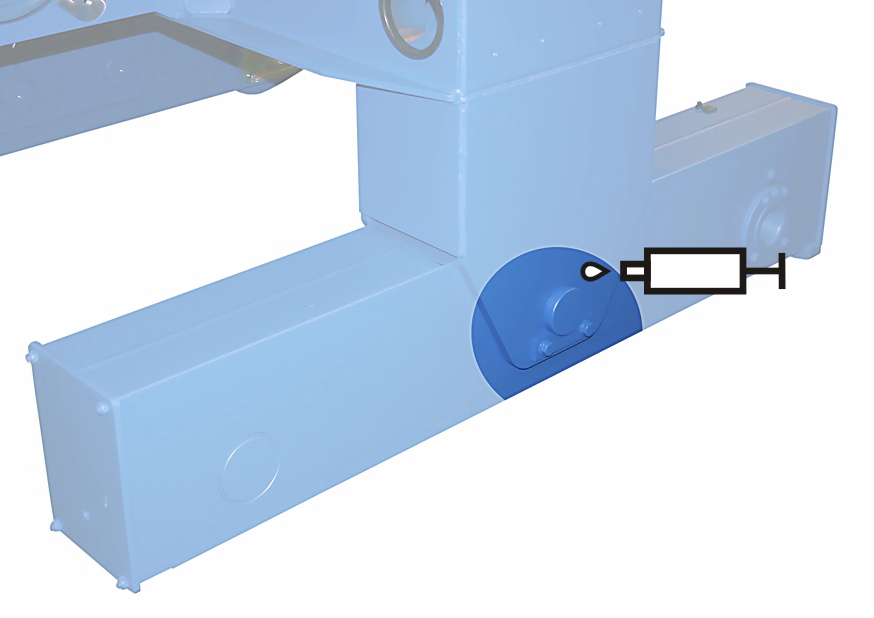

Lubricate the hinge pin for:
─ Assembling or disassembling the end carriage
|
|
On-site lubrication with “High temperature paste PBC 1574”, ABUS item number 6758.
Lubrication ex works with “High-Lub LT1 EP”, ABUS item number 317880.

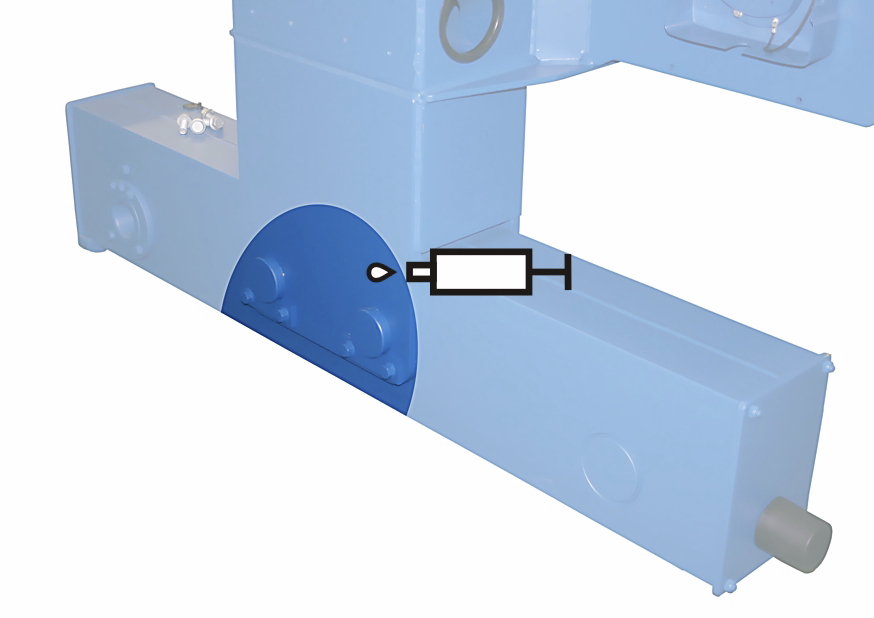

Lubricate the hinge pin for:
─ Assembling or disassembling the end carriage
