Inspecting the brake on the drive with the helical gear unit



To check the brake, a measurement is made of the air gap between magnet body and anchor plate, as well as the brake lining thickness.

The illustrations show the check on the air gap and brake lining thickness on a drive of size 80. Checks on larger or smaller drives are carried out in the same way.



Overview:

Air gap (between magnet body and anchor plate)

Brake lining thickness

Magnet body and anchor plate

Brake rotor with brake lining



Dimension

Size 80 / 112

Size 140

Maximum air gap

1.3 mm

1.3 mm

Minimum air gap

0.3 mm

0.3 mm

Brake lining thickness, new

7.5 mm

8.5 mm

Brake lining thickness, minimum

4.5 mm

5.5 mm

Due to the wear of the brake lining as the motor is braked, the brake rotor gradually becomes thinner. The anchor plate is thereby pressed ever further toward the brake rotor during braking and the air gap thus becomes wider. If the air gap has reached its maximum width, a gap limiter prevents the anchor plate from being pressed any further, thus ensuring that the anchor plate is reliably ventilated. When the gap limiter is employed, the braking effectiveness gradually lessens.

This is the point at which the air gap must be readjusted at the latest. If the minimum lining thickness has been reached, the brake rotor must be replaced.

If the width of the air gap is within the permitted range but usage behaviour leads to the expectation that the air gap will be wider than permitted before the next regular inspection, the air gap must be readjusted now.





Taking off the fan cover

Screws

Fan cover



*   Unscrew and remove screws (4x).

*   Take off the fan cover.





Only with size 140

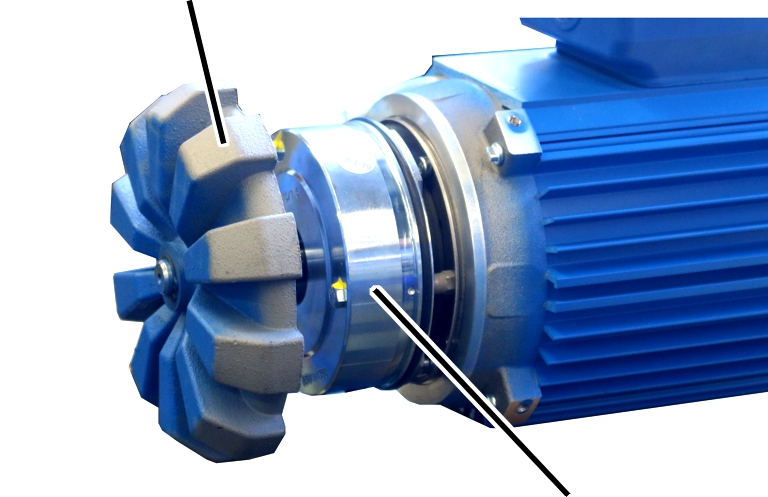

The size 140 drive has a cast fan blade which is used as an oscillating weight.



Fan blade





Brake

*   The fan blade does not have to be removed for the examination of air gap and brake lining thickness.







Checking the air gap

Hexagon head screw

Anchor plate

Magnet body

Feeler gauge

*  Insert the feeler gauge next to one of the hexagon head screws in the air gap between magnet body and anchor plate and measure the distance.

*   If the air gap has reached the maximum width of the operating range, adjust the brake. See Adjusting the air gap at the brake on the drive with the helical gear unit.

Dimension

Size 80 / 112

Size 140

Maximum air gap

1.3 mm

1.3 mm

Minimum air gap

0.3 mm

0.3 mm

If the width of the air gap is within the permitted range but usage behaviour leads to the expectation that the air gap will be wider than permitted before the next regular inspection, the air gap must be readjusted now.

*   Repeat the steps for all hexagon head screws (3x).

*   Clean the entire brake with compressed air.





Measuring brake lining thickness

Brake rotor with brake lining



*   Check the thickness of the brake lining with a calliper.

Dimension

Size 80 / 112

Size 140

Brake lining thickness, new

7.5 mm

8.5 mm

Brake lining thickness, minimum

4.5 mm

5.5 mm

*   If the brake lining is thinner than permitted, replace the brake rotor. See Replacing brake rotor and anchor plate on drive with the helical gear unit.





Closing the motor



Screws

Fan cover



*   Attach fan cover.

*   Tighten screws (4x).
