Whether the trolley selection and crane selection are set with the flip switch “Direct” or “Safe” is set here.

In direct trolley and crane selection, the flip switch is pressed to switch between trolleys and cranes.

In safe trolley and crane selection, first the flip switch is pressed and held and then ENTER is additionally pressed to switch between trolleys and cranes.

This prevents unintentional switching between trolleys or cranes (e.g. due to a glove catching on the switch).

The menu item can be opened with the transmitter logged out or with it logged in.

    Hold MENU depressed (5 seconds).

●   The code query appears on the display.

    Enter the code for the service menu.

See Entering the code or PIN.

The code for the service menu is “0055”.

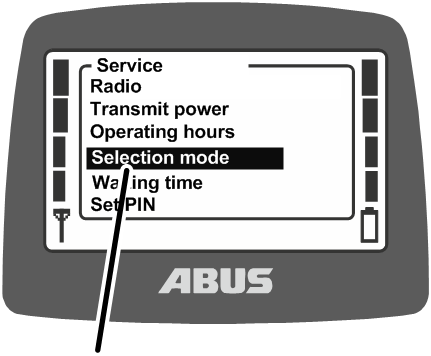

    Open the menu item “Selection mode”.

●   The setting which is currently set is shown on the display.

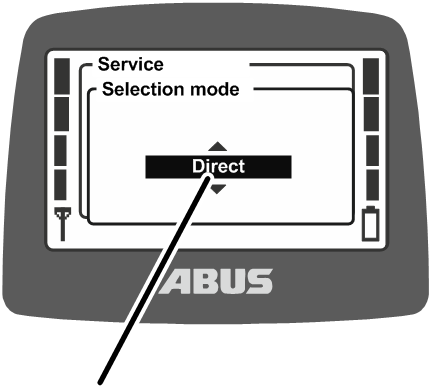

    Set the required value:

With “Direct”, the crane operator can change between cranes and trolleys directly using the flip switches.

With “Safe”, the crane operator can change between cranes and trolleys by pressing and holding the flip switches and then pressing ENTER.

    Confirm using ENTER.

To operate a crane with two trolleys, see Operating a crane with two trolleys.

To operate two trolleys in tandem operation, see Operating cranes in tandem operation.
