Danger from falling suspended load! If the suspension of a load is shared by both trolleys and one trolley is moved on its own, the load may no longer be securely suspended from the load hook, and could fall. Work with particular caution. Observe the end user's hazard analysis! |
With two trolleys on one crane, it is possible to switch back and forth between trolley I and trolley II.
After switching on the crane, the trolley is selected that was also selected when switching off.
For a crane with one trolley, you can also switch between the displays for “I” or “II” on the transmitter, but only trolley I will be controlled.
|
|

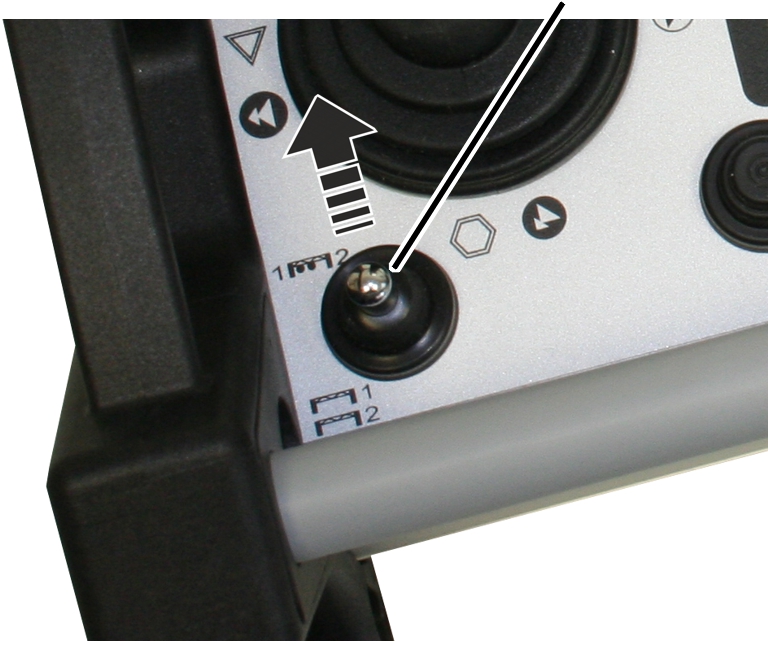

Flip switch “Select trolley” |
|
| |
Either:
Press the flip switch “Select trolley” once or twice until the desired trolley appears on the display.
If the selection mode “Safe” is set in the service menu: Press and hold the flip switch “Select trolley” and then also confirm with the ENTER button.
Or:
Open the main menu with the MENU button,
open the menu “Crane operation”,
select the desired trolley in the menu item “Select trolley”,
confirm by pressing ENTER.
|
|

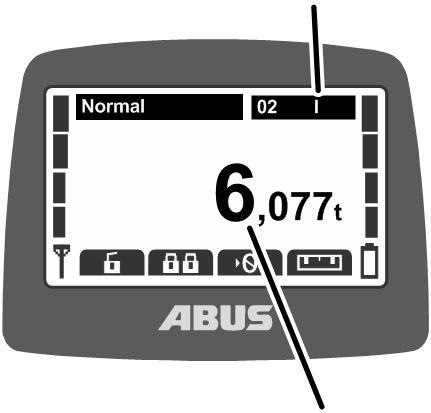

Trolley selected |
|
| |
|
|
Load of the selected trolley |
● The selected trolley is shown on the display.
● The load of the selected trolley is indicated on the display.
Press the joystick to
control the selected trolley.
On a crane with joint operation, it is also possible to switch back and forth between trolley I and trolley II in joint operation of both trolleys.
|
|
Flip switch “Select trolley” |
|
| |
Either:
Press the flip switch “Select trolley” once or twice until trolley I+II appears on the display.
If the selection mode “Safe” is set in the service menu: Press and hold the flip switch “Select trolley” and then also confirm with the ENTER button.
Or:
Open the main menu with the MENU button,
open the menu “Crane operation”,
select the value “I+II” in the menu item “Select trolley”,
confirm by pressing ENTER.
|
|

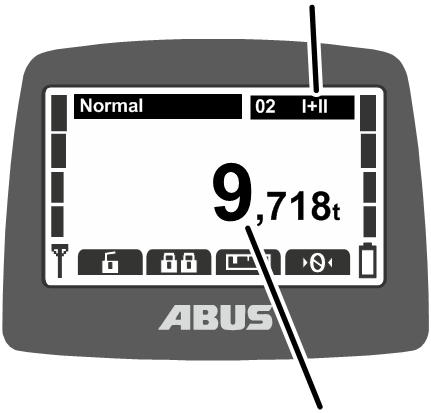

Trolley I+II | |
|
| ||
|
|
Total load trolley I and trolley II | |
● Trolley I+II appears on the display.
● The total load on trolley I and II appears on the display.
Press the joystick to
operate trolley I and II at the same time.
