Only for size 200 to 420
|
|
Buffer plate |
|
| |
|
Self-locking nut |
Plastic washer |
Unscrew the self-locking nuts
(4x).
Remove the plastic washers (4x).
Remove the buffer plate.
The running surfaces of the wheels become worn during operation. This reduces the diameter of the wheels.
|
|
Buffer plate |
|
| |
|
Self-locking nut |
Plastic washer |
Unscrew the self-locking nuts
(4x).
Remove the plastic washers (4x).
Remove the buffer plate.
|
Buffer plate |
Mounting plate |
|
| |
|
Rib screw M16x60 |
Safety buffer |
Unscrew rib screws M16x60 (6x) and remove the buffer plate from the
mounting plate.
|
|

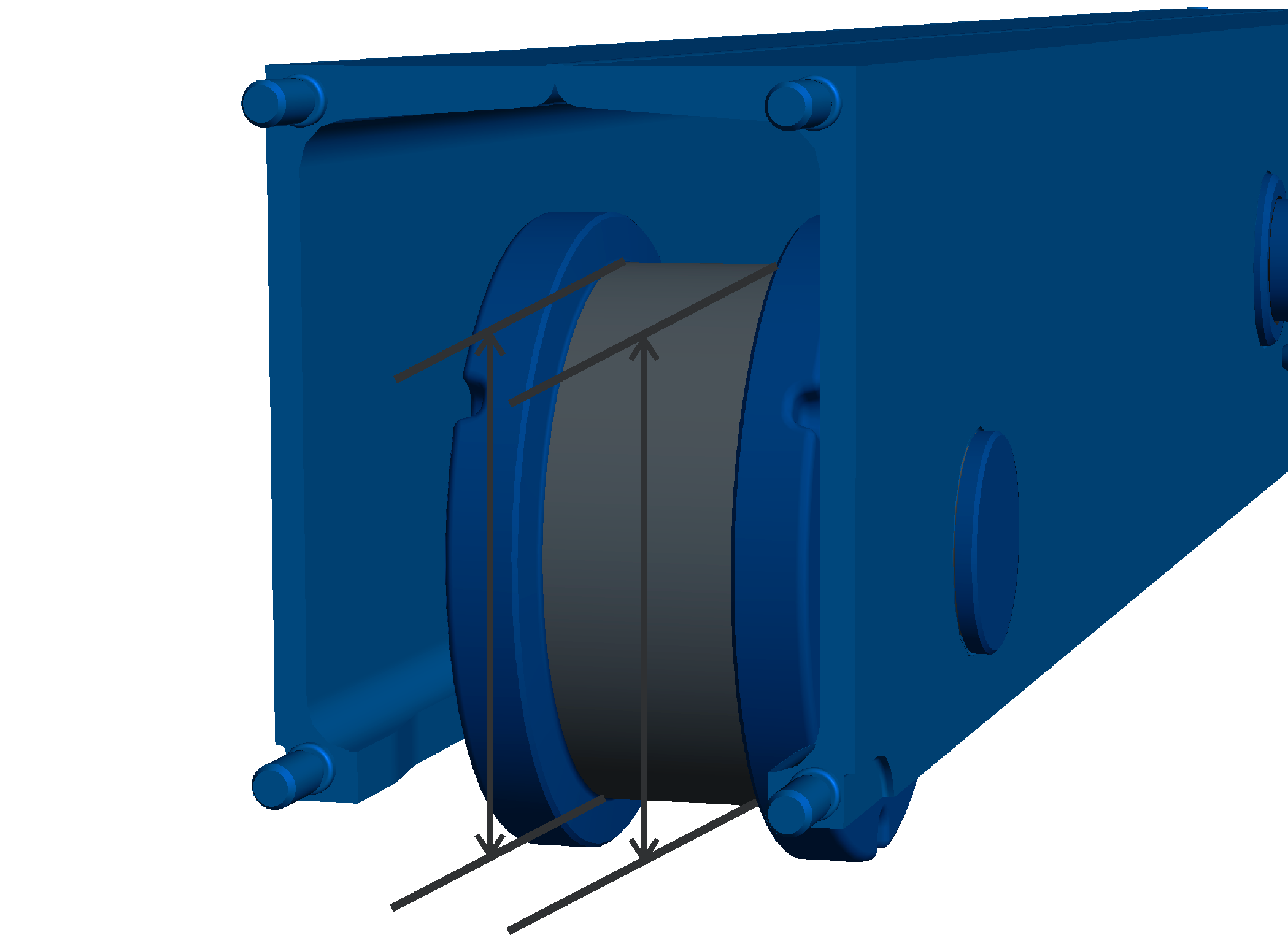

Measure the diameter of the wheel
at multiple points over the width of the wheel.
The diameter may not be smaller than is
specified in the table.
If the diameter is smaller, the wheel must be replaced. See Disassembling the powered wheel.
|
Wheel |
Maximum permissible wear |
Minimum diameter |
|
200 |
-4 mm |
196 mm |
|
280 |
-5 mm |
275 mm |
|
350 |
-5 mm |
345 mm |
|
420 |
-5 mm |
415 mm |
|
500 |
-5 mm |
495 mm |
