Installing the trolley power supply: Overview



The power supply is now installed on the HB profile rail.



Planungsunterlagen

The side and position intended for the power supply is specified in the planning documents.

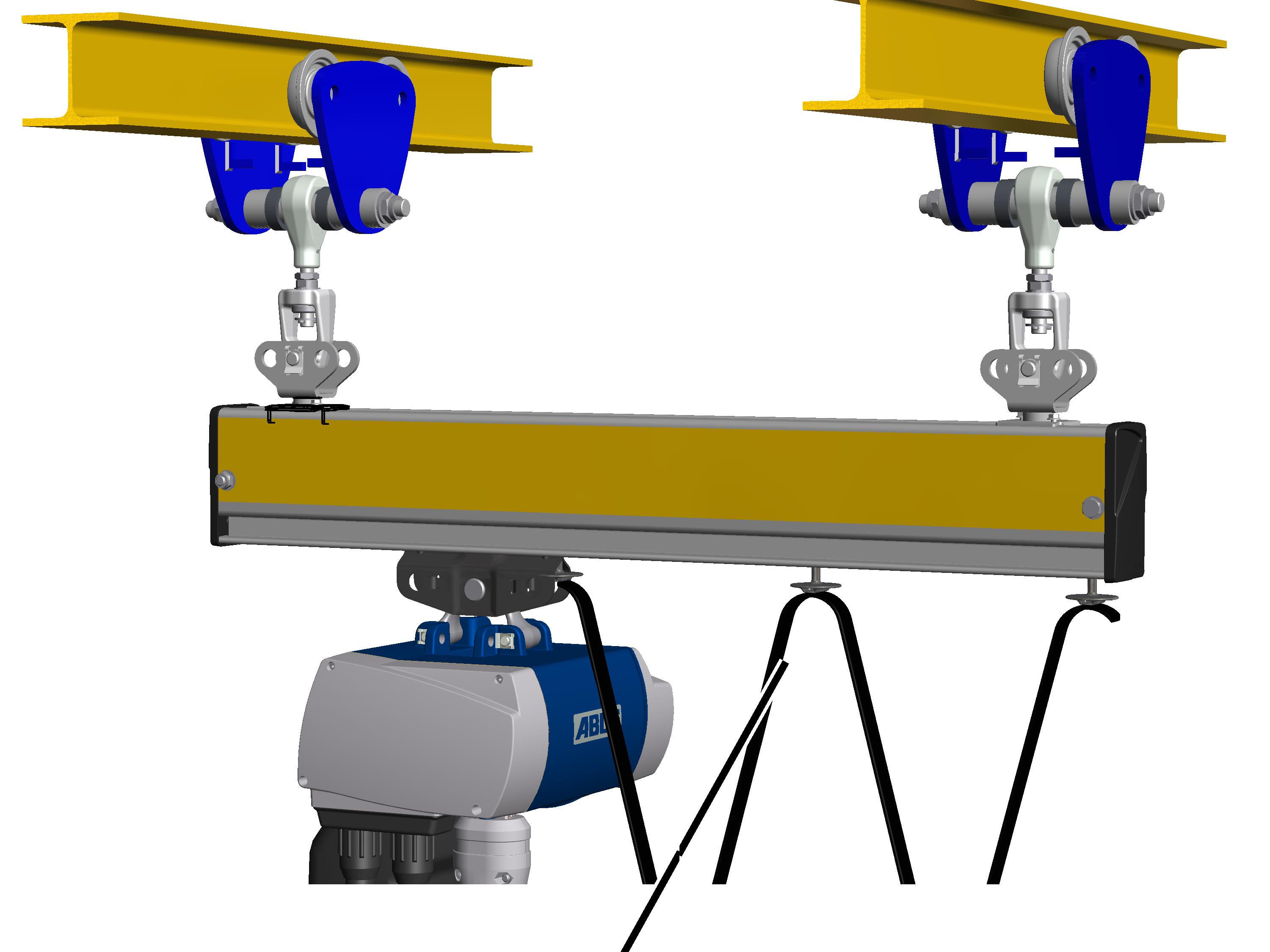

Trolley power supply on the EHB-I as festoon cable system

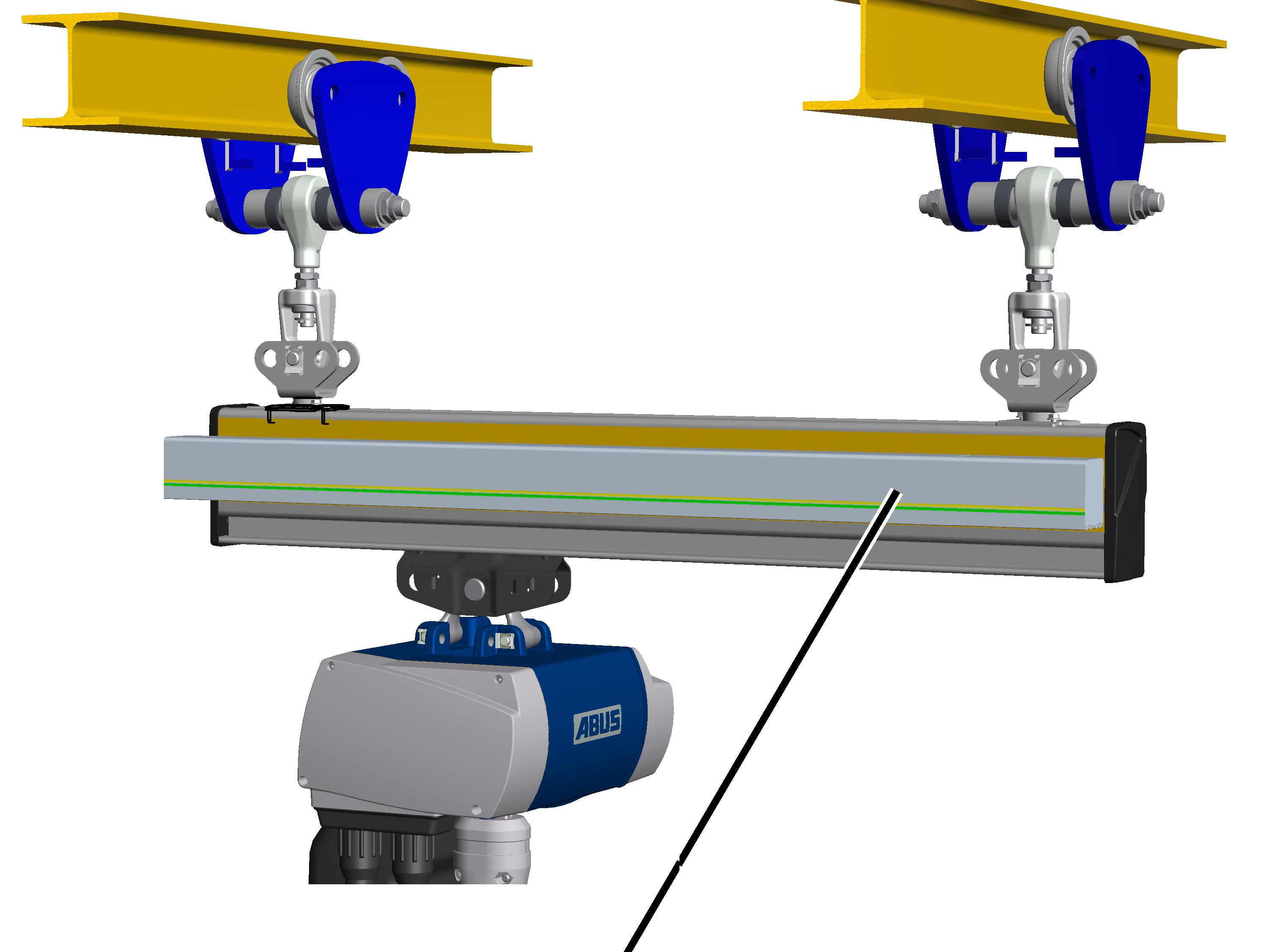

Trolley power supply on the EHB-I as conductor system VKL

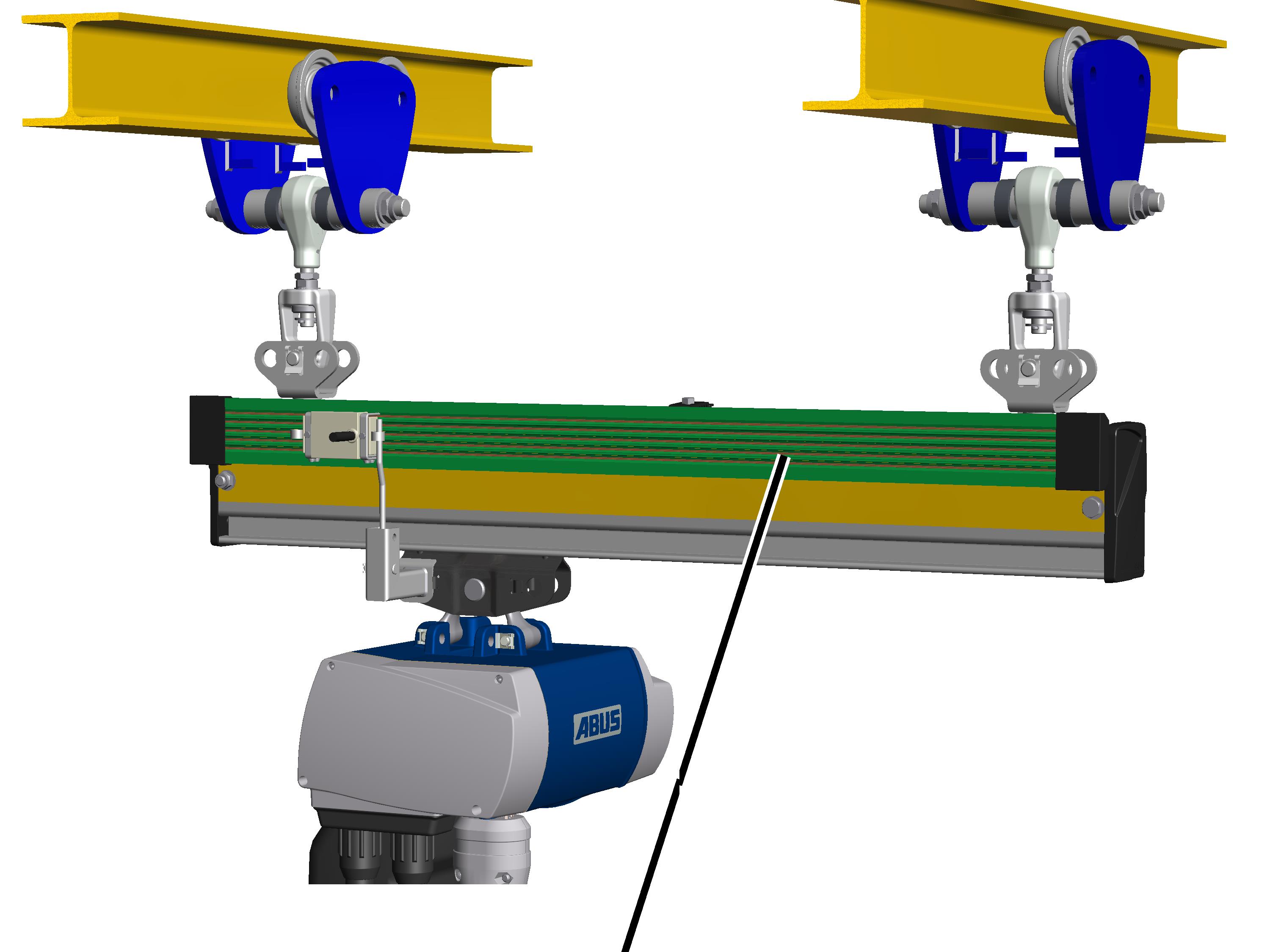

Trolley power supply on the EHB-I as conductor system KBH



The power supply is available in three versions:

─     Festoon cable system in the HB profile rail: the power supply consists of a flat cable which is fastened to cable sliders. These cable sliders run parallel in the HB rail and are pulled along by the trolley. Alternatively, a festoon cable system with cable carrier instead of cable sliders is also available.

See Trolley power supply: Installing the festoon cable system.

─     Conductor system VKL: the mains power supply consists of a conductor system which is mounted on the HB profile rail. In the conductor system, a current collector is pulled along by the trolley.

See Trolley power supply: installing the conductor system VKL.

─     Conductor system KBH: the power supply consists of a conductor system which is mounted on the HB profile rail. In the conductor system, a current collector is pulled along by the trolley.

See Trolley power supply: installing the conductor system KBH.
