Load display and tare

Only for crane with LED matrix display

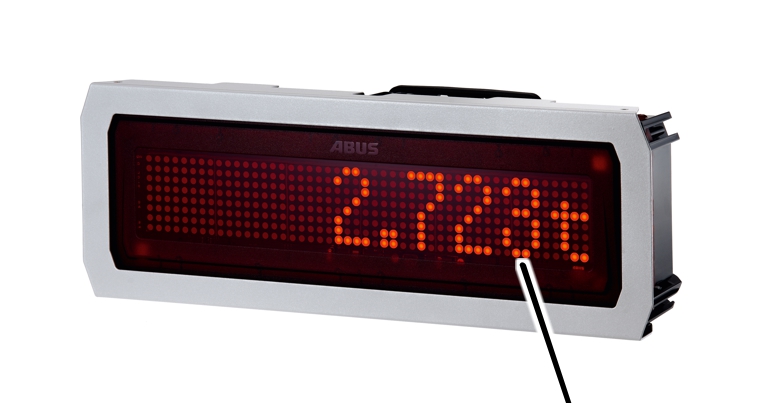

	Displayed load

●   The suspended load is displayed in metric tons on the LED matrix display.

The displayed load is not a calibrated measurement and is only an approximate estimate of the suspended load.

The displayed load can in the worst case deviate by up to 10% from the actual weight of the suspended load.

For an exact and calibrated weight, use a crane scale or a weighing bottom block.





The load display of the crane can be reset to zero using the “Tare” function. This enables a differential measurement, e.g. in order not to include the weight of a load lifting attachment (such as a crosshead).



Tare the hoist:

   Select the hoist to be tared using the pendant control or the ABURemote.

   Press and hold the “Tare” button until the load display shows 0.000.

In the case of an overload, the tare value is deleted and the load is displayed!



To reset the tare:

   Press the “Tare” button for 5 s.

●   The LED matrix display shows the original value again.



Only for crane with multiple trolleys



Load display on the crane	Load display on the trolley



Only with ABUS Electrics 3



Only for crane with multiple LED matrix displays:

●   The load display on the crane shows the joint total load currently suspended on the load hook.

●   The load display on the trolley shows the weight of the load currently suspended on the load hook of the respective trolley.



For crane with an LED matrix display:

●   The weight of the load on the selected trolley or the total load is shown on the load display.

See Operating a crane with two trolleys.





Only with ABUControl



●   The LED matrix display(s) show the fixedly set load of trolley I, trolley II or the total load.

The LED matrix displays are fixedly set accordingly and cannot be switched off in running operation.
