Installing the drive



The images show the installation of an AZP drive on a crane. There is no major difference between the installation of an AZP drive on a double-rail trolley or side-mounted trolley or an E drive on a single-rail trolley or lower flange trolley.



Only for a drive which is installed on an ABUS crane



*   Determine the weight of the drive. See Technical data.

*   Secure the drive so that the weight can be held safely and the output shaft will not be subject to load (e.g. insert in round sling).

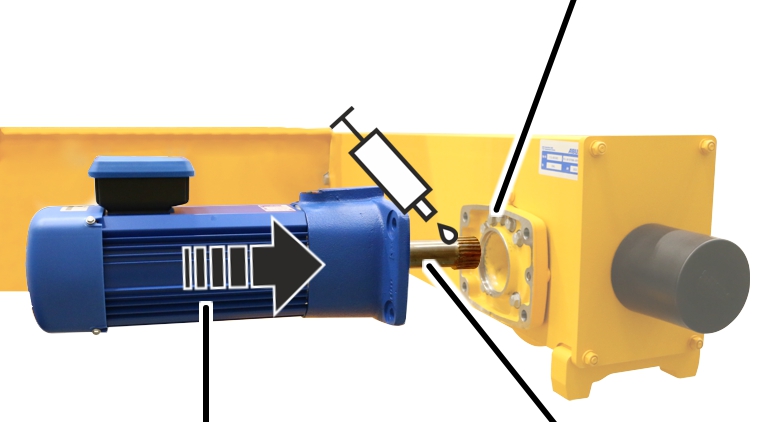

Bearing flange

Drive

Output shaft

*   Lubricate the gearing on the output shaft. Apply lubricant with brush to coat surface completely.

Lubricant: “High temperature paste PBC 1574”. For details, see Lubricants.

*   Push the drive into the wheel.

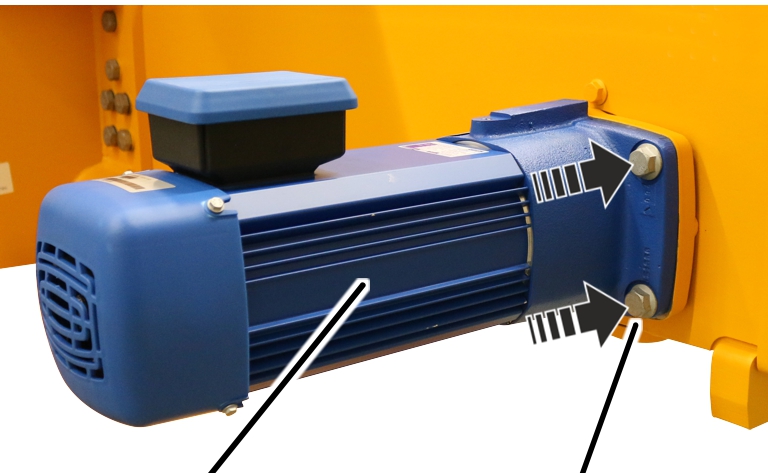

Drive

Rib screw

*   Bolt on the drive with the rib screws (4x).

Size

Type

Tightening torque

130

M8x25

35 Nm

160

M10x30

75 Nm

200

M12x30

115 Nm

280

M16x40

300 Nm





Wheel diameter

Drive

Type

Tightening torque

100

E

M8x25

35 Nm

130

E

M8x25

35 Nm

160

E

M8x25

35 Nm

200

E

M10x40

75 Nm
