The crane type for the display symbols is set here. During operation of the crane in “Normal” operating mode, symbols for the direction of crane, trolley and load hook are displayed.

If the transmitter is used on a jib crane, the displayed symbols can be changed so that the symbols for slewing left and right are shown instead of the symbols for crane travel forward and back.

    Open the main menu with the MENU button.

    Open the “Settings” menu.

    Enter the code for the “Settings” menu.

See Entering the code or PIN.

The code for the menu is “0005”.

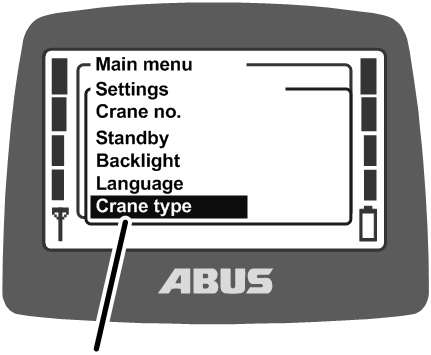

    Open the menu item “Crane type”.

●   The selected crane type is shown on the display.

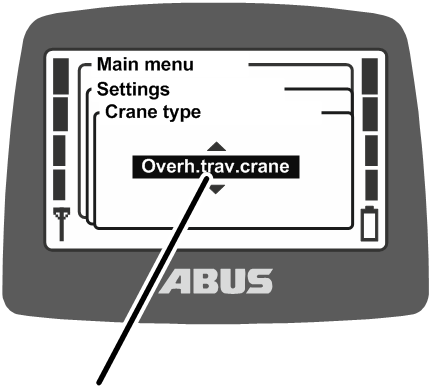

    Select the required crane type (overhead travelling crane or jib crane).

    Confirm using ENTER.
