Installing the trolley

This section only applies if a trolley of construction D, DA, Z or ZA is to be placed on an overhead travelling crane.

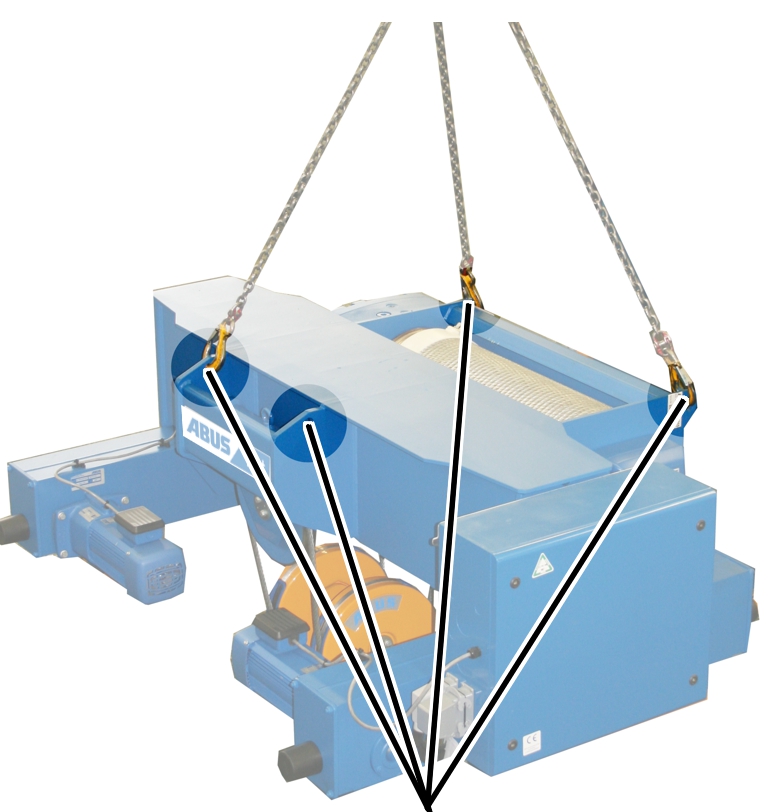

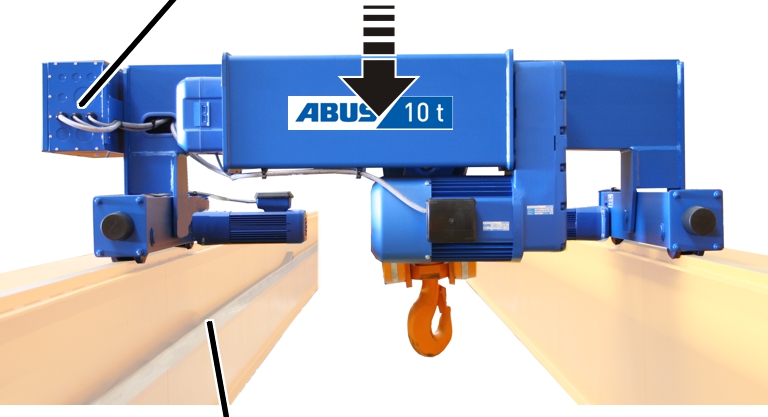

Rotate the trolley as in the diagram.

Place the trolley with the wheels onto the trolley track.

Only for guide rollers: do not fit the trolley with the guide rollers. Otherwise, they will be damaged.

Check whether all wheels come into contact with the trolley track.

This section only applies if a trolley of construction DQA is to be placed on an overhead travelling crane.

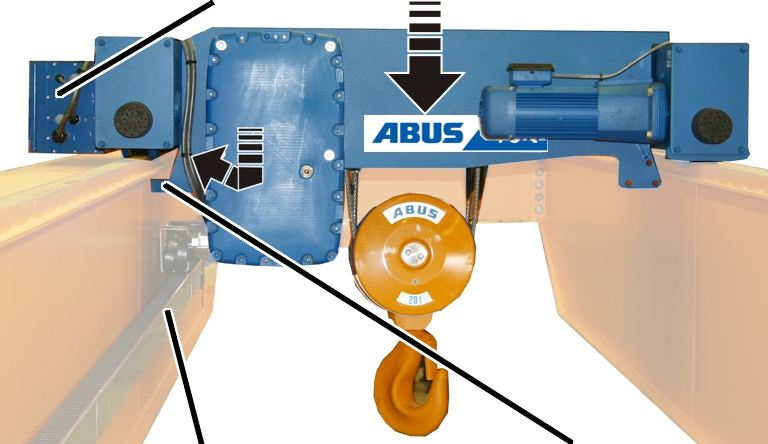

Turn the trolley so that the hoist panel is facing the trolley power supply (energy chain or festoon cable system).

Tilt the trolley slightly and with the lift-off prevention device move it underneath the upper flange of the main girder.

Place the trolley with the wheels onto the trolley track.

Only for guide rollers: do not fit the trolley with the guide rollers. Otherwise, they will be damaged.

Check whether all wheels come into contact with the trolley track.

This section only applies if a trolley of construction D, DA, Z or ZA is to be placed on an ZLK overhead travelling crane.

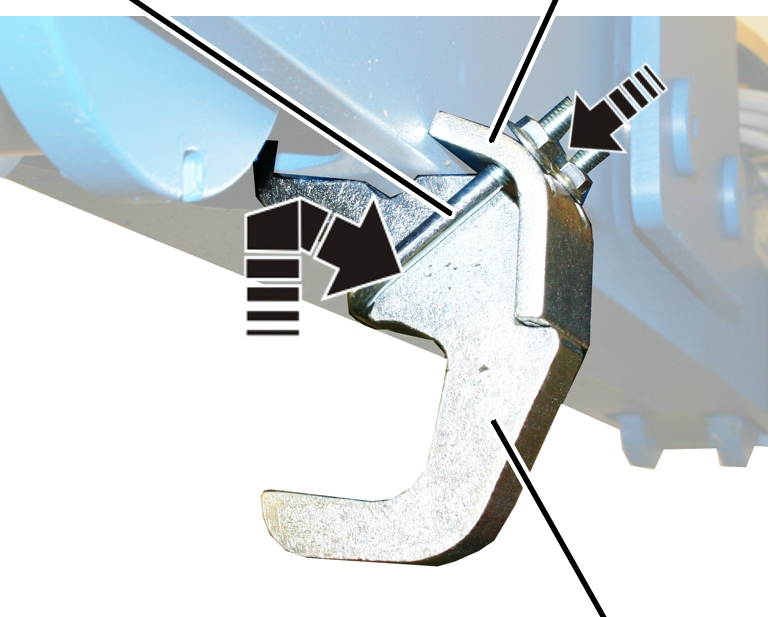

Connect the clamp strap and threaded bracket to the lift-off prevention device.

Fasten the lift-off prevention device to the non-powered wheel from below in the opening.

Screw the clamp strap tightly with M8 rib nuts (2x). 25 Nm.

This section only applies if a trolley of construction DQA is placed on an ZLK overhead travelling crane.

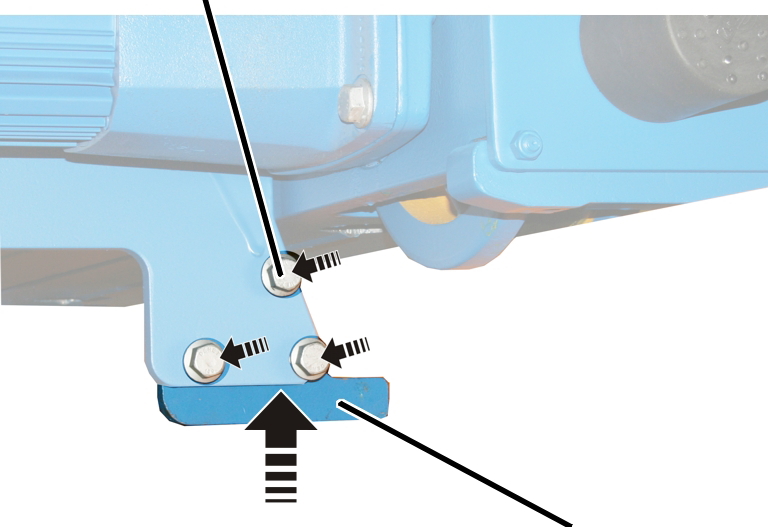

Fasten the lift-off prevention device to the trolley frame.

Screw on the lift-off protection device tightly with rib screws (3x).

This section only applies if a trolley (all constructions) is to be placed on an ZLV overhead travelling crane.

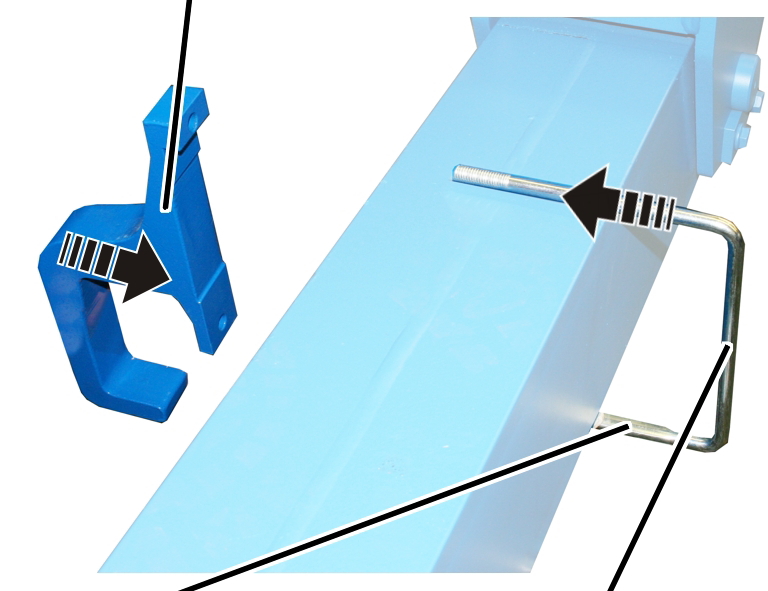

Rotate the threaded bracket with the flat side facing downwards.

Slide the threaded bracket on the non-powered wheel over the end carriage.

Push the lift-off prevention device onto the threaded bracket.

Screw on the lift-off protection device tightly with rib screws (2x).
