Installing the non-powered wheel

The figures show the assembly of a size 130 wheel. The mounting of larger wheels does not essentially differ from this.

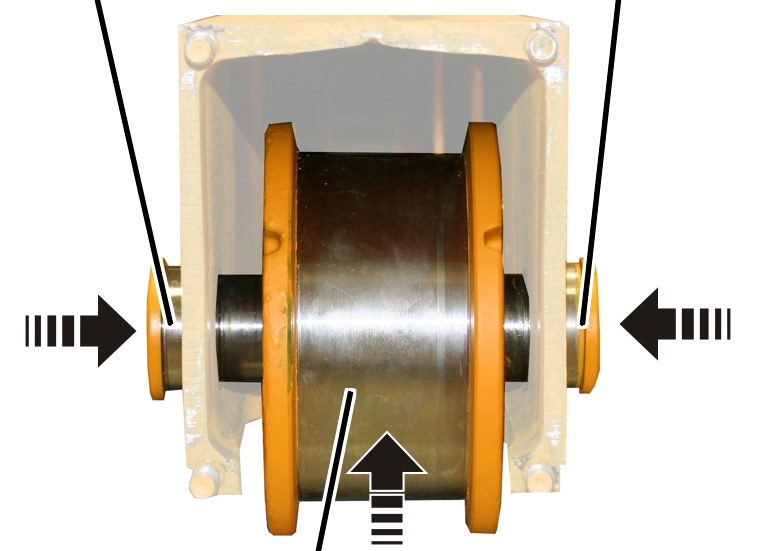

Insert the bolt and distance bush. If necessary, lightly hammer the bolt and distance bush.

This work step applies only to end carriages of the sizes 130 to 420.

Tighten screws (2x).

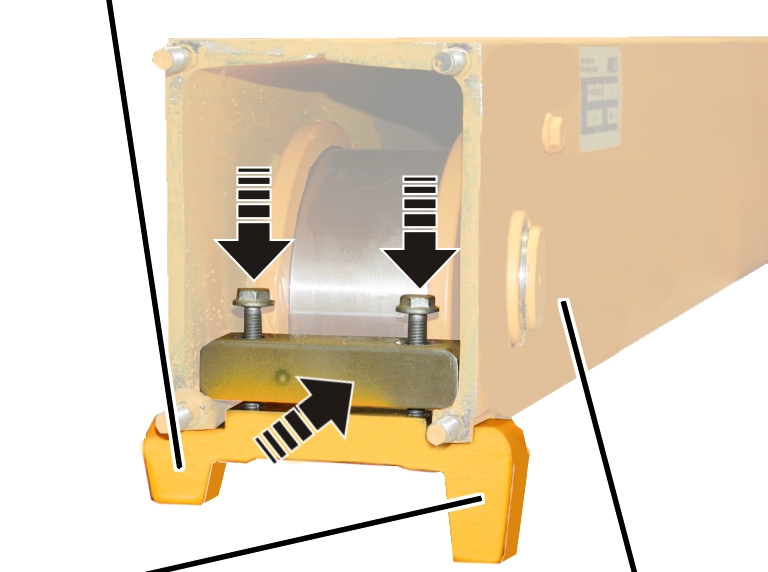

This work step only applies if the end carriage of size 130 to 420 has a derailing protection device.

Rotate the derailing protection device in such a way that the large side faces inwards (towards the crane travel drive).

Insert the derailing protection device.

Tighten screws (2x).

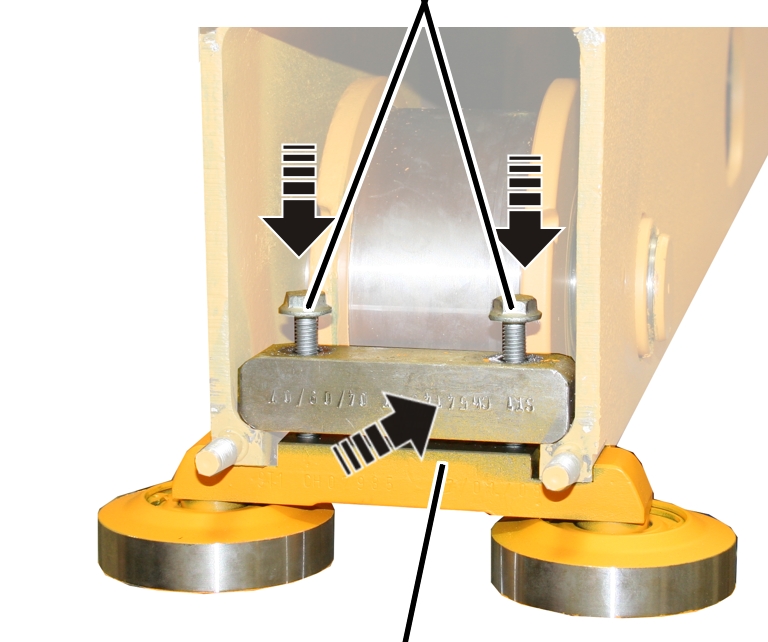

Slide the buffer plate onto the threaded bolt.

Size 160 to 420: fit the plastic washers (4x).

Tightly screw the self-locking nuts M10 (4x). 6 Nm.

The self-locking nuts may only be reused maximally 3 times. After this, new self-locking nuts must be used.

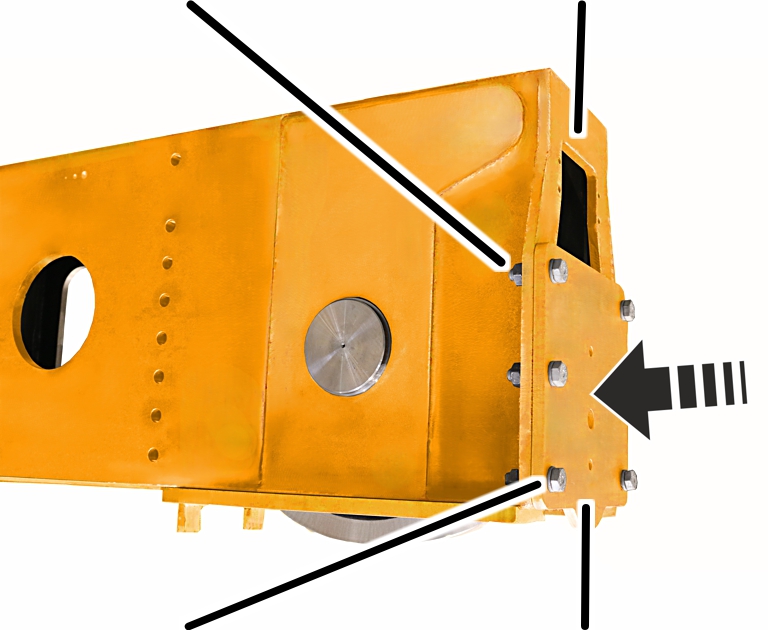

This work step applies only to end carriages of size 500.

High-tensile nut M16	Mounting plate

High-tensile bolt M16x60 with washer 16	Buffer plate

Fit the washer 16 (6x) on high-tensile bolt M16x60 (6x) and screw buffer plate on mounting plate.

Secure high-tensile bolt M16x60 (6x) with high-tensile nut M16 (6x). 250 Nm.

The high-tensile nuts may only be reused 3 times at most. After this, new high-tensile nuts must be used.

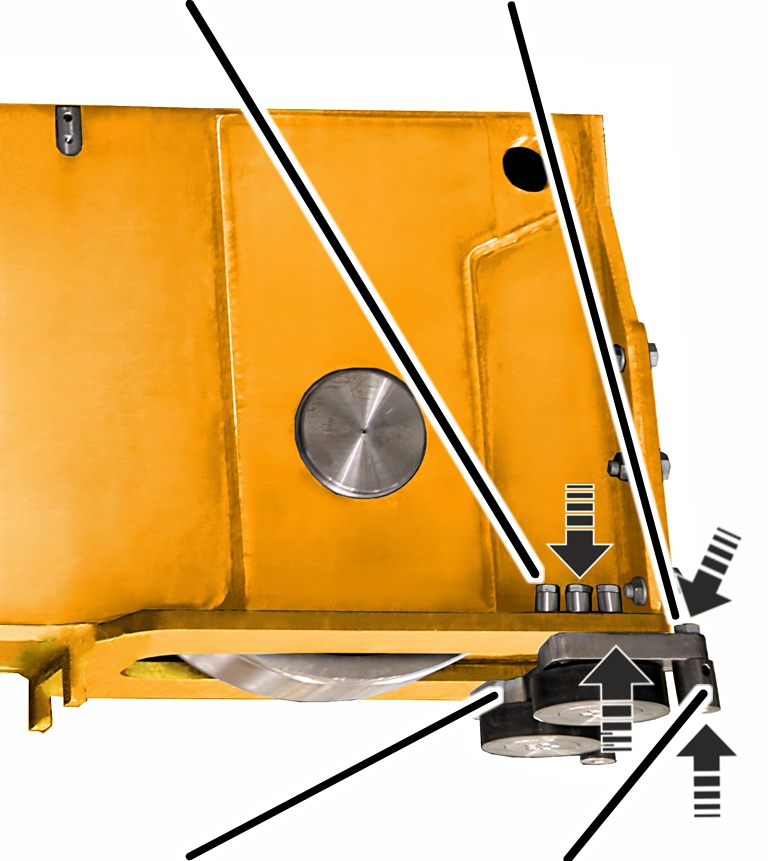

This work step only applies if the size 500 end carriage has guide rollers.

High-tensile bolt M20x70 with washer 38/21x30	Hexagon head screw M20x70

Bracket	Bolt

Fit washers 38/21x30 (6x) on high-tensile bolts M20x70 (6x) and screw brackets on the end carriage on both sides. 450 Nm.

Here, the bevel must be positioned towards the screw head.

Screw bolts with hexagon head screws M20x70 (1x) to the bracket. 25 Nm.

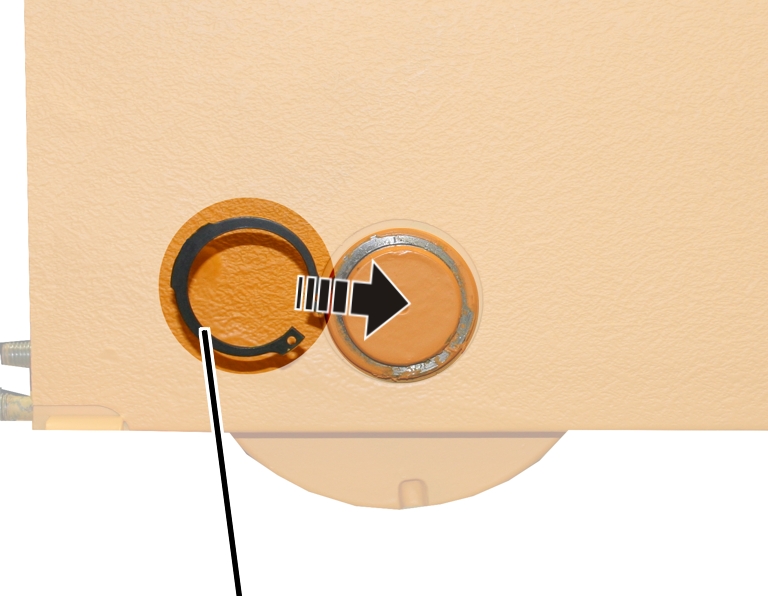

Circlip
