The buffer rods prevent two trolleys (e.g. from two cranes) from running into each other. They are made up of a metal frame on the side panels of the trolley and one rubber buffer each.

On the mounts of all trolleys:

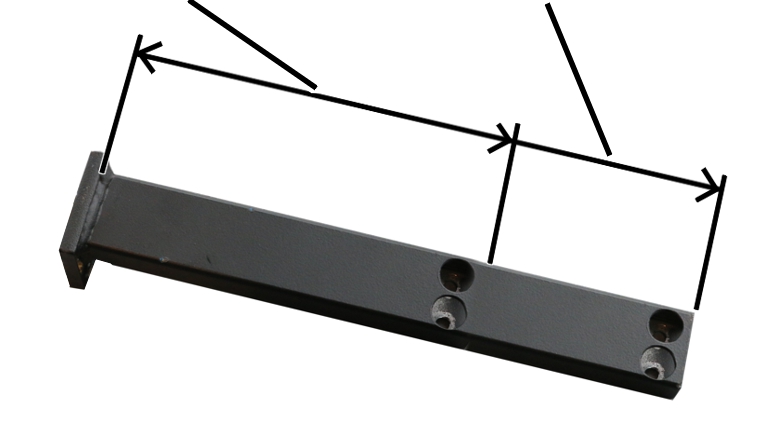

    For each trolley, saw off two mounts each at a right angle at 192 mm.

    Deburr the sawed edge.

On both sides of the trolley and on both trolleys:

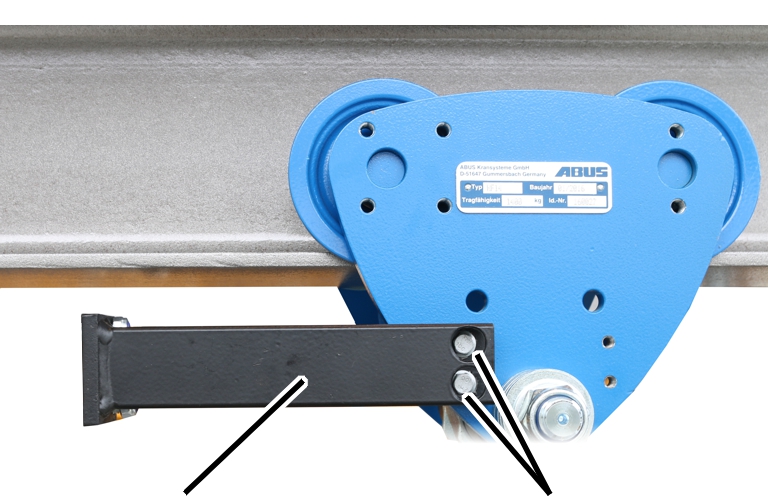

    Hold the mount against the hole pattern on the trolley side panel (or the mounting plate).

    Tighten the mount using rib screws M6x12 (2x each), only hand-tight at first.

    Shorten the buffer rod evenly on both sides in accordance with the flange width.

The rubber buffer must be exactly in the centre of the buffer rod later.

    Screw the rubber buffer to the buffer rod using the self-locking nut M8. 19 Nm.

    Screw the threaded bracket loosely to the mount at first using the self-locking nut M8.

    Slide the buffer rod into the threaded bracket on both sides.

    Align the buffer rods to both trolleys. The rubber buffers must be exactly above one another.

    Tighten the rib screws M6x12 on the side panel. 19 Nm.

    Screw the threaded bracket tight. 25 Nm.

Note:

If a greater distance between two cranes is required than is possible with the buffer rods, an additional trolley with buffer rods on both sides can be mounted between the cranes.
