Installing the ABURemote receiver

For ABURemote radio remote control only



On the side where the receiver is to be mounted:

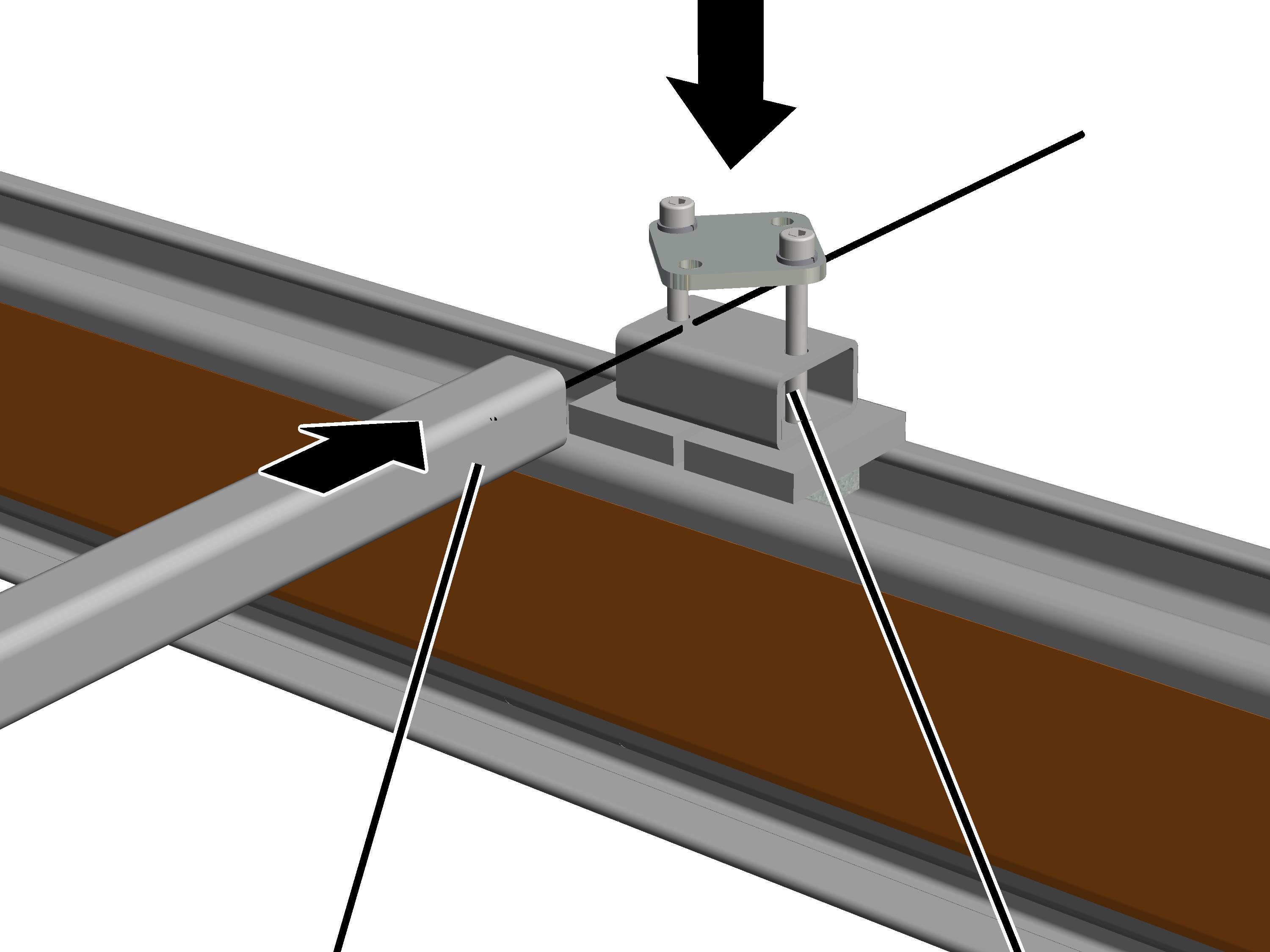

Square tube	Clamping unit in the profile head

    Insert the clamping unit in the profile head as shown in the figure. In doing so, bring the head nut into the profile head.

    Push the square tube into the clamping unit.

    Do not yet screw the clamping unit tight (so that the receiver can still be aligned later).

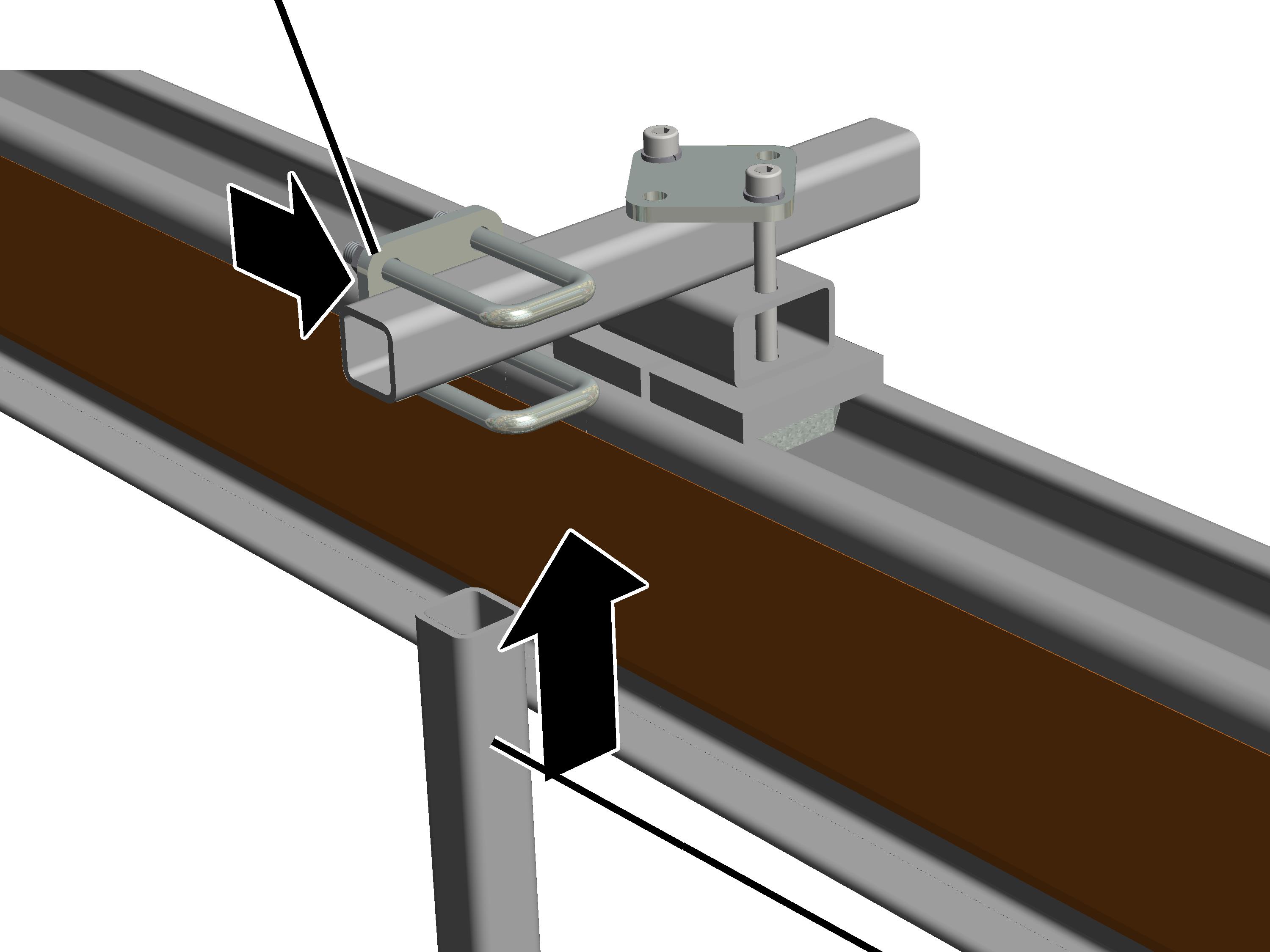

Pipe clamp
	Vertical square tube

    Push the pipe clamp onto the square tube.

    Push the vertical square tube from below into the pipe clamp.

    Screw the pipe clamp tight. 25 Nm.

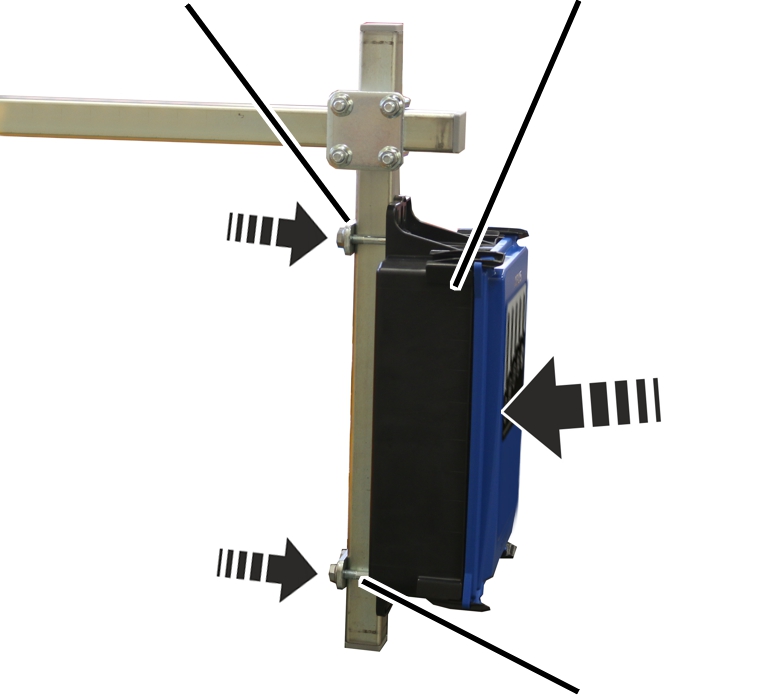

Plate	Receiver
	Threaded bracket

    Push the threaded bracket (2x) through the lugs on the receiver.

    Push the receiver, together with the threaded brackets, onto the vertical square tube from the front.

    Place the plates onto the threaded bracket from the rear.

    Screw the plates in place using rib nuts M8. 25 Nm.





    Connect the connection cables in the receiver. See the wiring diagram.

    Lay the connection cable from the receiver along the square tube to the control.

    Fasten the connection cable in place using cable ties.
