Only with electric trolley EF
Laying connection cables
Route connection cables
from the electrical system housing to the crane travel drive.
If the crane travel drive is not near the electrical system housing: Lay the connection cable in the profile head of the crane girder.

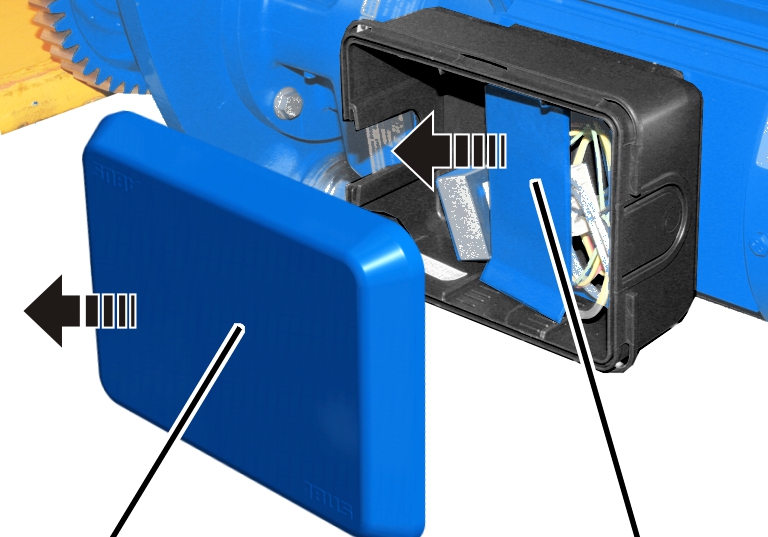

Opening the connector housing
|
| |
|
Housing cover |
Intermediate plate |
Open the housing
cover.
Take out the intermediate
plate.
|
Pin multipoint connector on the drive |
Pin multipoint connector on the drive |
|
| |
|
Connection cable of drive |
Rectifier for brake |
Insert the connection cable for the drive in
the pin multipoint connector on the drive.
Insert the rectifier for
the brake in the pin multipoint connector on the drive.
Lay the plug-in
connections and connection cable in the connector housing.
Closing the connector housing
|
|
Intermediate plate |
|
| |
Press the intermediate plate in.
Close the housing
cover.
