Connecting the control cable and pendant control

For a pendant control on the trolley only



    Connect the control cable and pendant control on the chain hoist. See the product manual for the chain hoist.





Only with mobile control

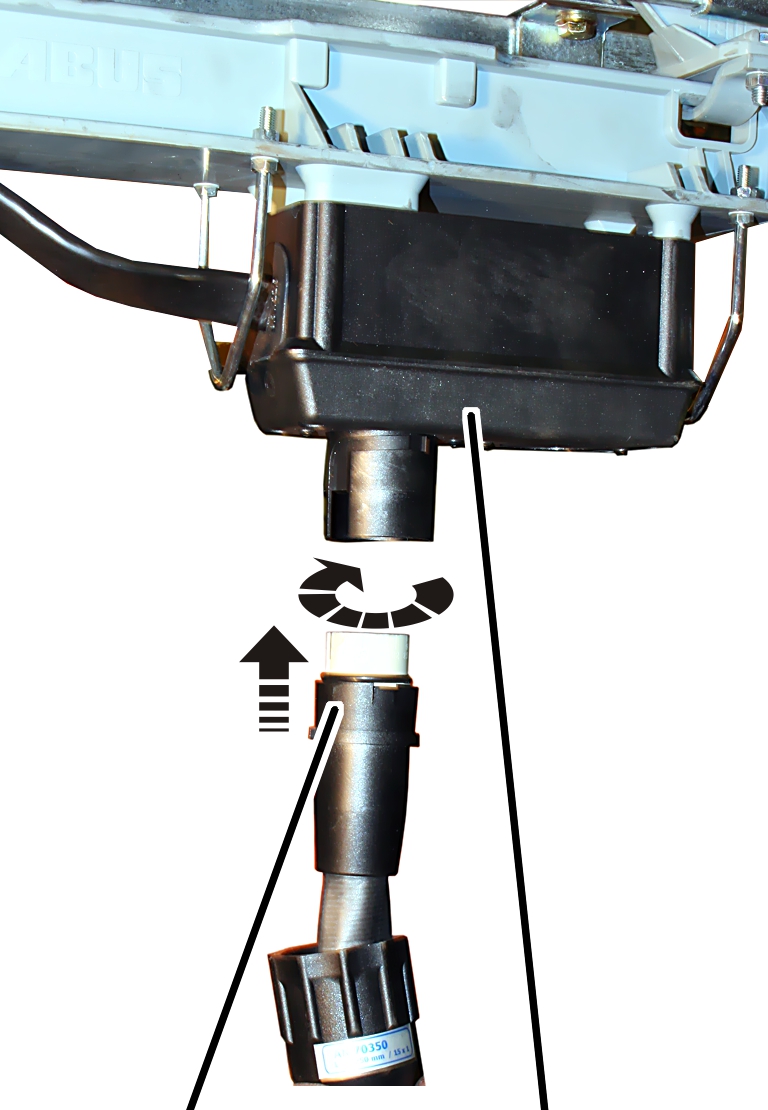

Bayonet connector	Socket

    Insert the bayonet connector for the control cable onto the socket on the control trolley. There is a notch to ensure the bayonet connector only fits in one position.

    Place the bayonet nut on and turn it.





    Insert the bayonet coupling on the control cable into the pendant control.

    Place the bayonet nut on and turn it.
