Overview of tightening torques

Overview of tightening torques

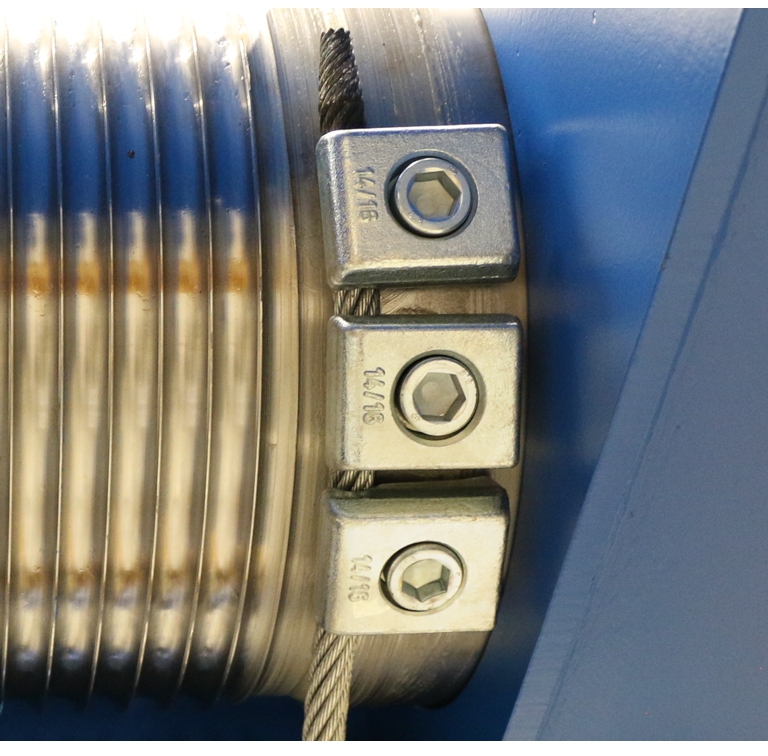

End clamp

Size	Fillister-head screw	rope diameter	Tightening torque
GM 5000	M16x35	14 mm	210 Nm
GM 6000	M16x35	16.2 mm	210 Nm
GM 7000	M16x35	14 mm	210 Nm
GM 7000	M20x40	20.2 mm	425 Nm

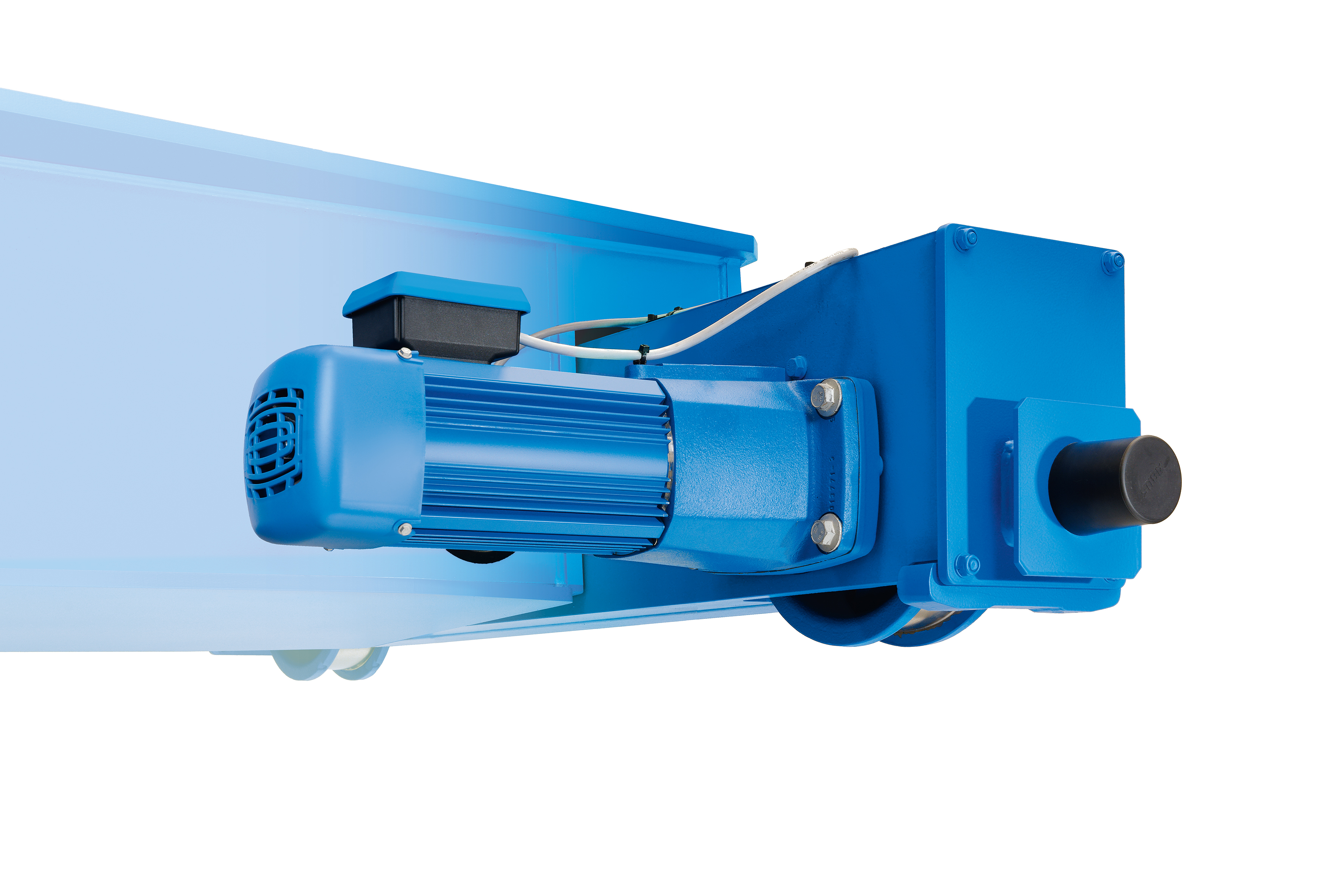

AZP drive

Size	Type, size and length	Number	Tightening torque
200	Rib screw M12x30	4x	115 Nm
280	Rib screw M16x40	4x	300 Nm

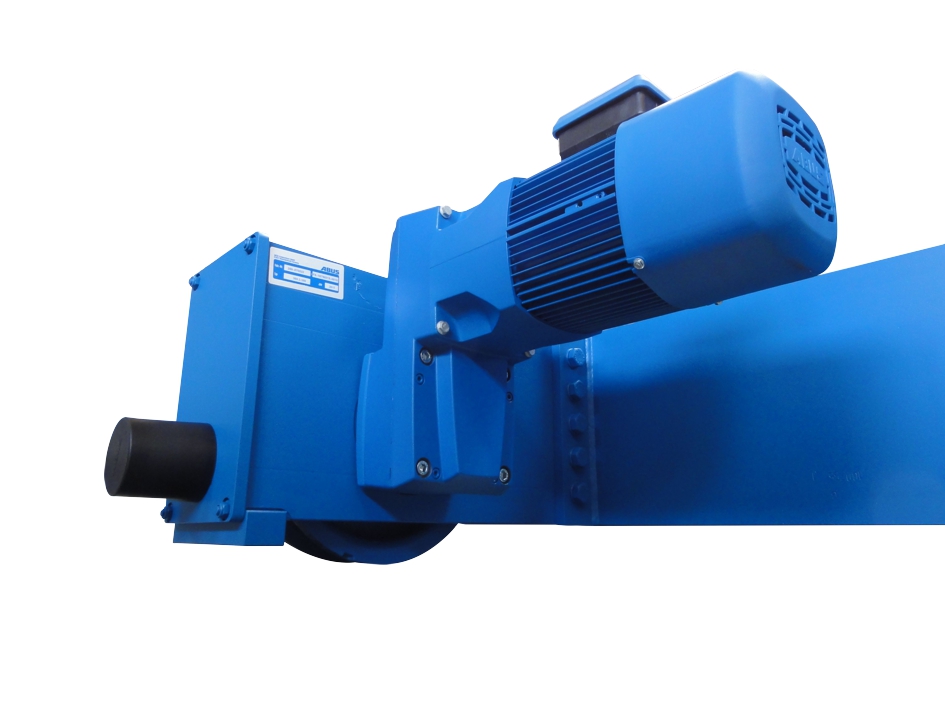

AZF drive

Size	Type, size and length	Number	Tightening torque
AZF 350	Fillister-head screw M12x100	4x	85 Nm
AZF 420	Fillister-head screw M12x100	4x	85 Nm
AZF V420	Fillister-head screw M16x140	4x	210 Nm
AZF V500	Fillister-head screw M16x140	4x	210 Nm

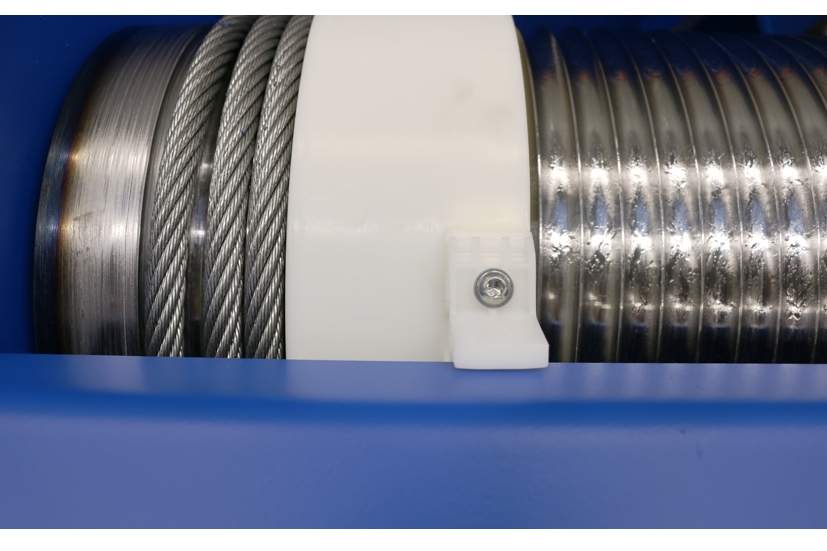

Rope guide runner

Size	Screw	Number	Tightening torque
GM 5000	Self-tapping screw M6x16	1x	5 Nm
GM 6000	Self-tapping screw M6x16	1x	5 Nm
GM7000	Self-tapping screw M6x16	1x	5 Nm

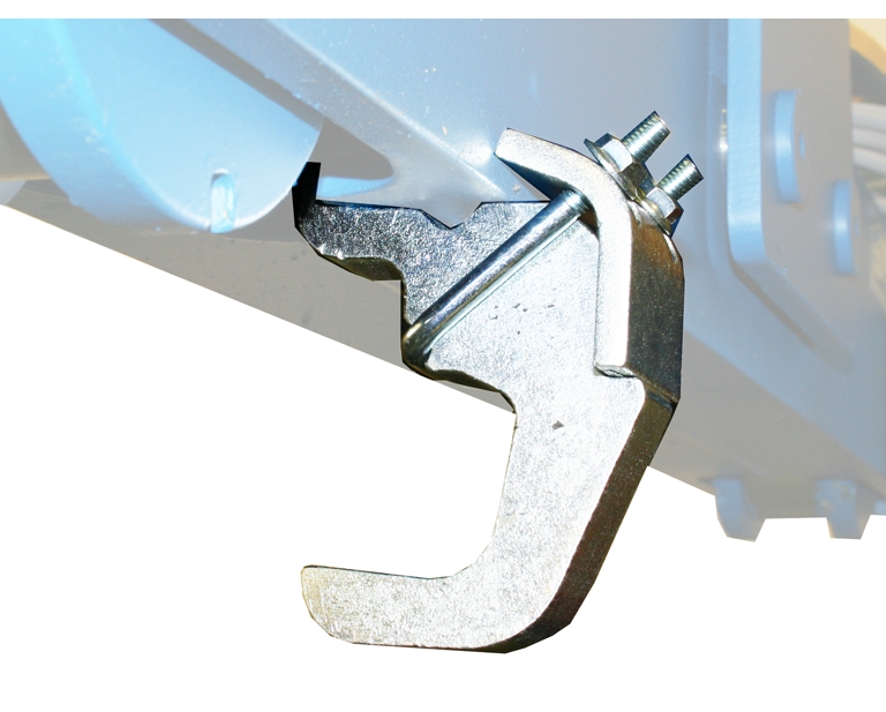

Lift-off prevention device

Only with hoist drive GM 5000 and GM 6000

─ Rib nut M8

─ 2x per lift-off prevention device

─ 15 Nm

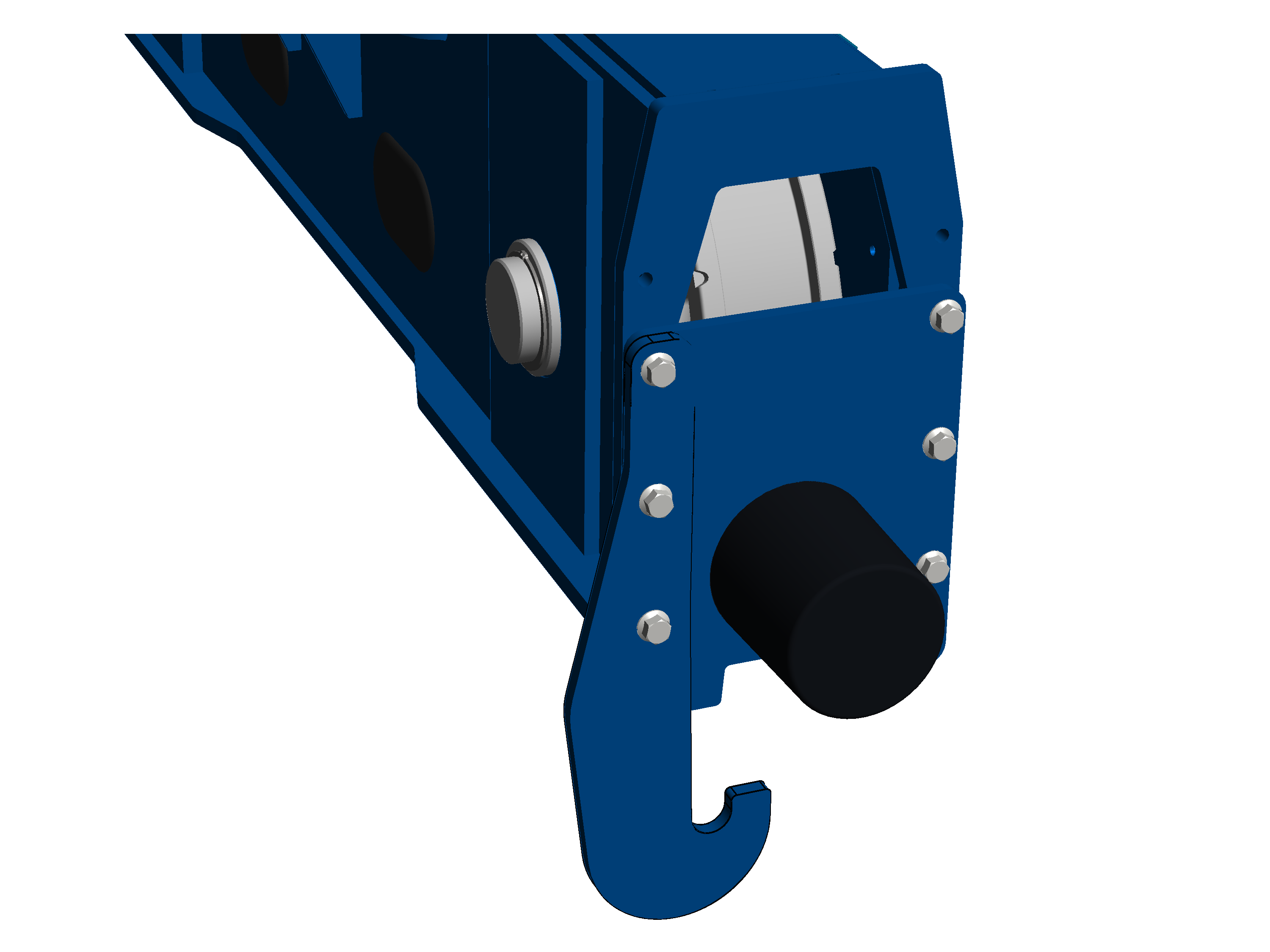

Only with hoist drive GM 7000 with reeving 10/2 and 12/2

─ Rib screws M16x60

─ 3x per lift-off prevention device

─ 250 Nm
