Installing the wire rope hoist on the main girder



If the wire rope hoist has not been installed yet, continue here. Otherwise, skip this section.



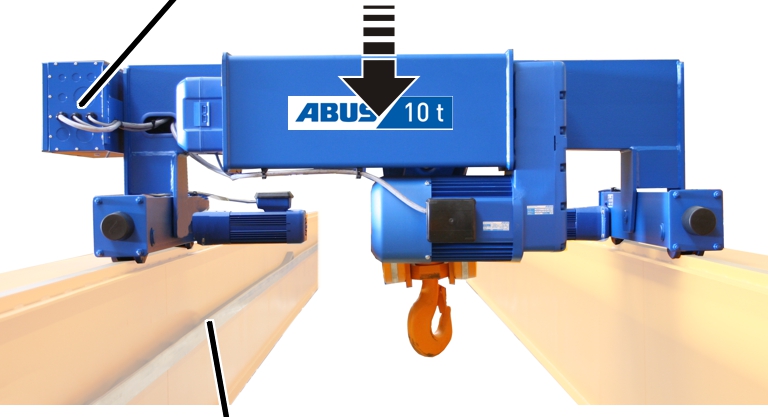

Lifting the trolley onto the overhead travelling crane

Hoist panel



Trolley power supply



*   Rotate the trolley as in the diagram.

*   Place the trolley with the wheels onto the trolley track.

*   Only for guide rollers: do not fit the trolley with the guide rollers. Otherwise, they will be damaged.

*   Check whether all wheels come into contact with the trolley track.





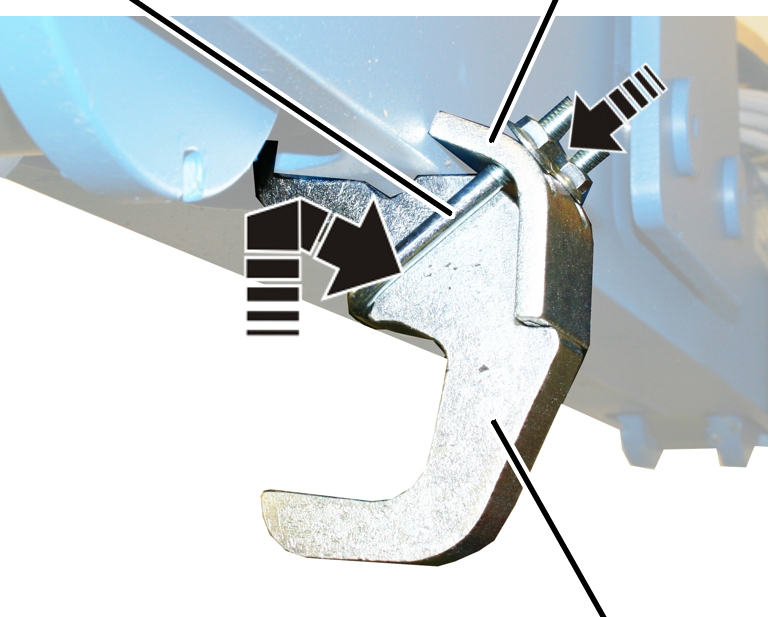

Installing the lift-off prevention device

Only with hoist drive GM 5000 and GM 6000

The lift-off prevention device is installed on the trolley. It consists of a load hook, which runs under the upper flange of the main girder. The trolley is therefore not able to fall from the main girder even in the event of accidents or similar incidents.





Threaded bracket

Clamping bracket



Lift-off prevention device

*   Connect the clamping bracket and threaded bracket to the lift-off prevention device.

*   Fasten the lift-off prevention device to the non-powered wheel from below in the opening.

*   Screw the clamping bracket tightly with M8 rib nuts (2x). 25 Nm









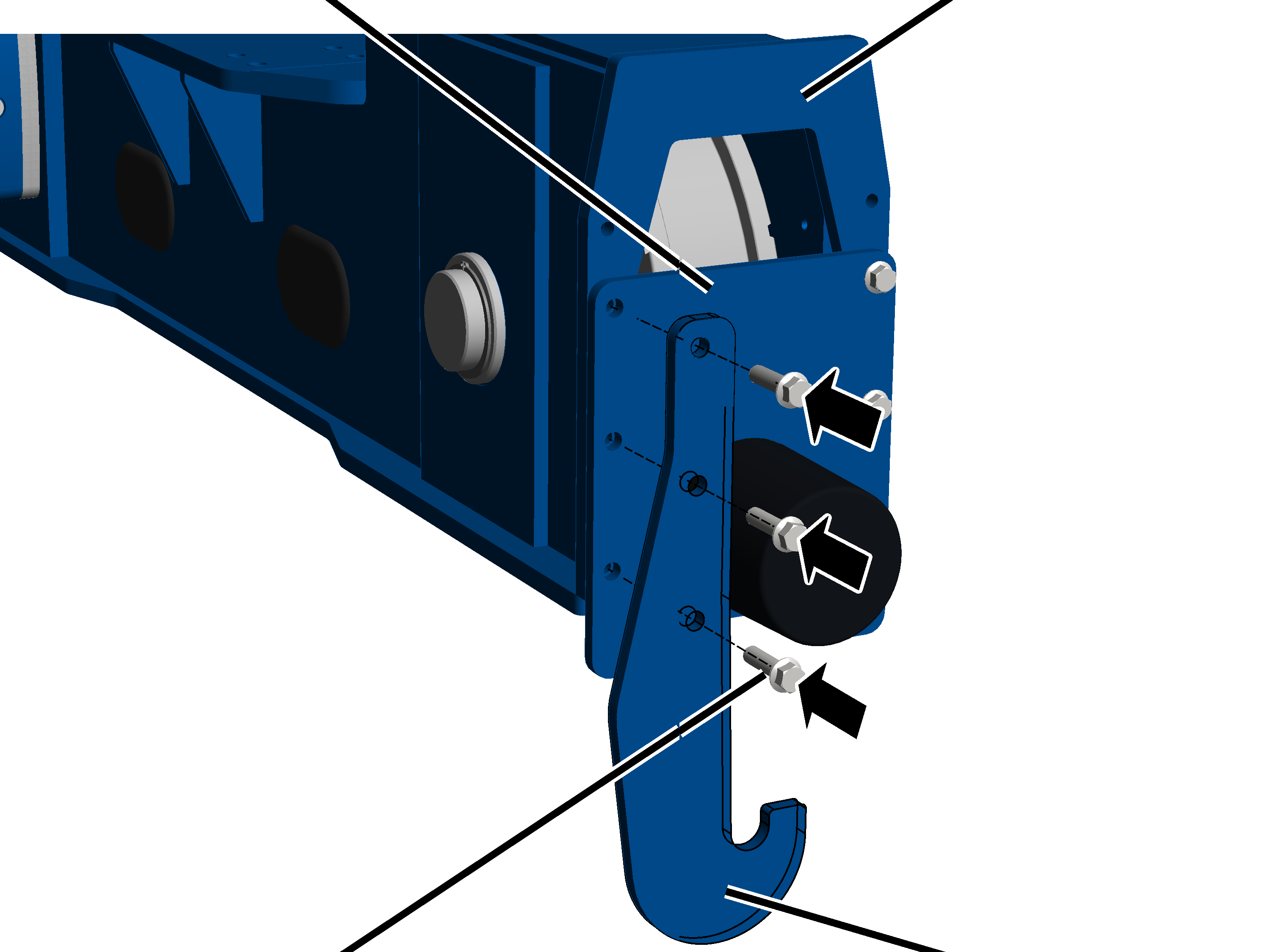

Only with hoist drive GM 7000 with reeving 10/2 and 12/2



Buffer plate

Mounting plate

Rib screw M16x60

Lift-off prevention device

*   Screw the lift-off prevention device onto the buffer plate of the non-powered wheel with rib screws M16x60 (3x). 250 Nm.
