Disassembling the non-powered wheel



If the wheel is damaged or worn, it must be replaced with a new wheel.



Preparing the wire rope hoist

*   Comply with occupational health and safety requirements.

*   Relieve the load of the end carriage on the wire rope hoist near the wheel from below.





Exposing the wheel

Only for size 200 to 420





Buffer plate

Self-locking nut

Plastic washer

*   Unscrew the self-locking nuts (4x).

*   Remove the plastic washers (4x).

*   Remove the buffer plate.









Only with size 500

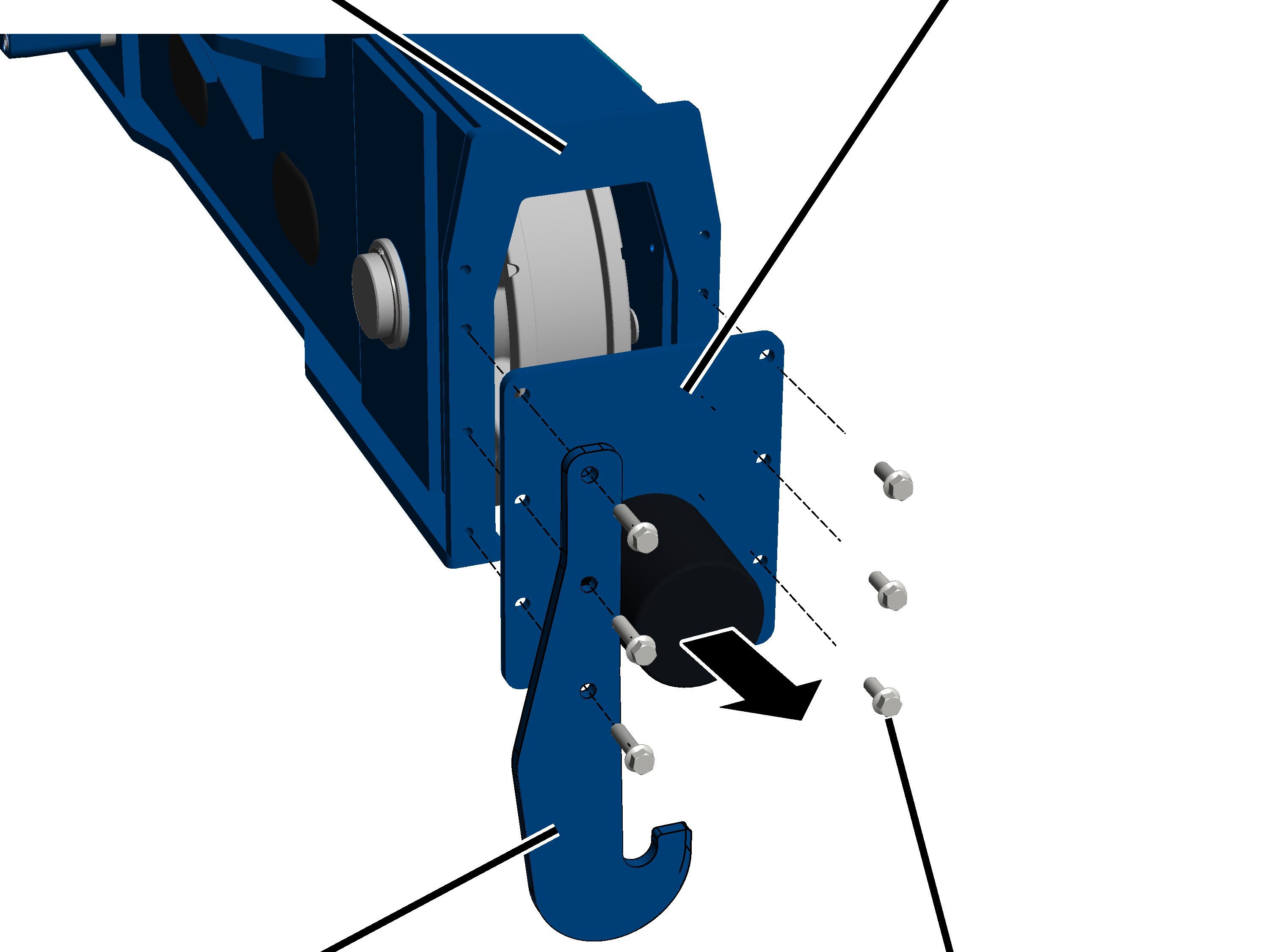

Mounting plate

Buffer plate

Lift-off prevention device

Rib screw M16x60

*   Release the M16x60 rib screws (6x).

*   Remove the lift-off prevention device and buffer plate with safety buffer from the mounting plate.

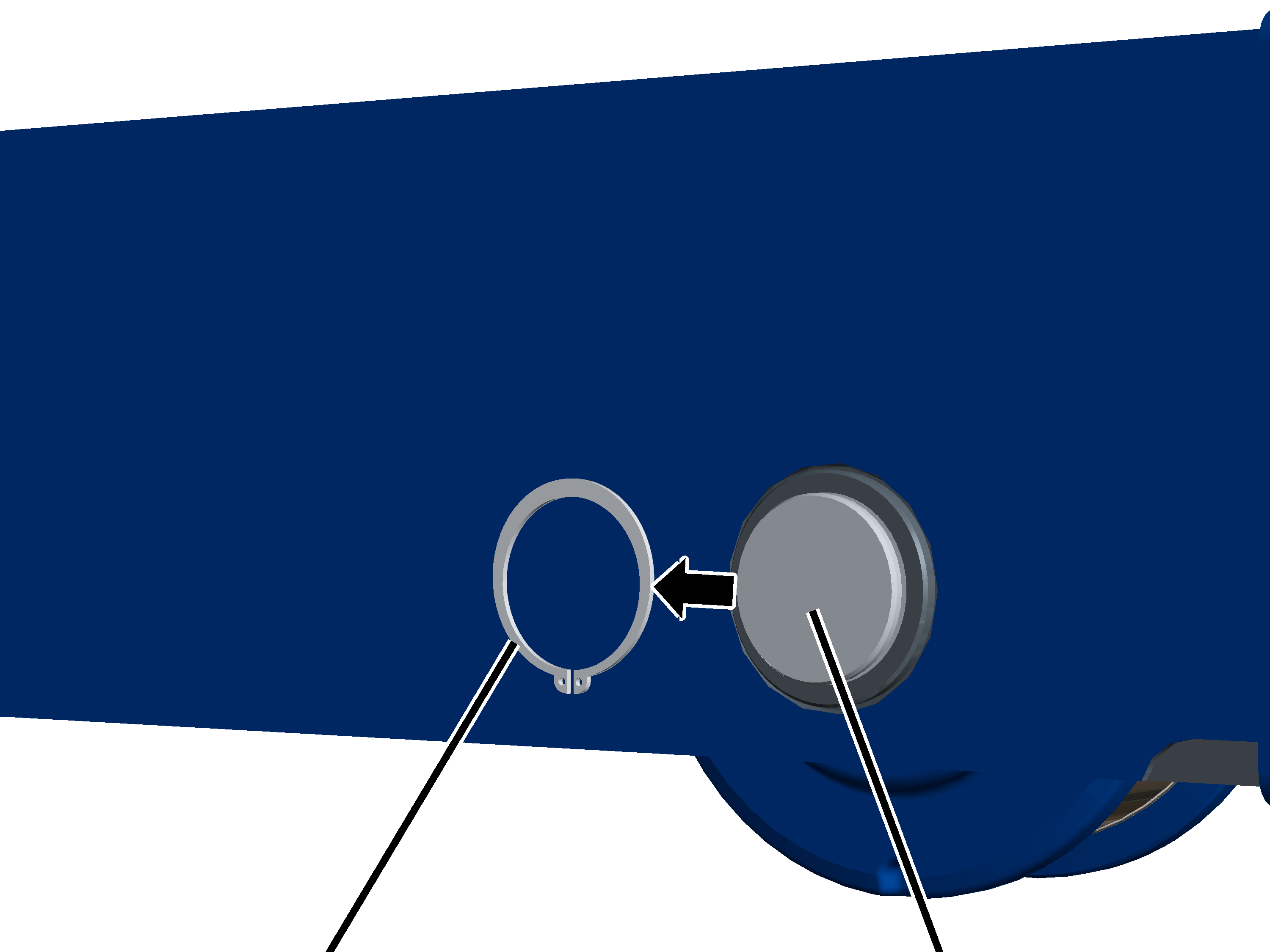

Circlip

Bolt

*   Remove the circlip.





Removing the wheel

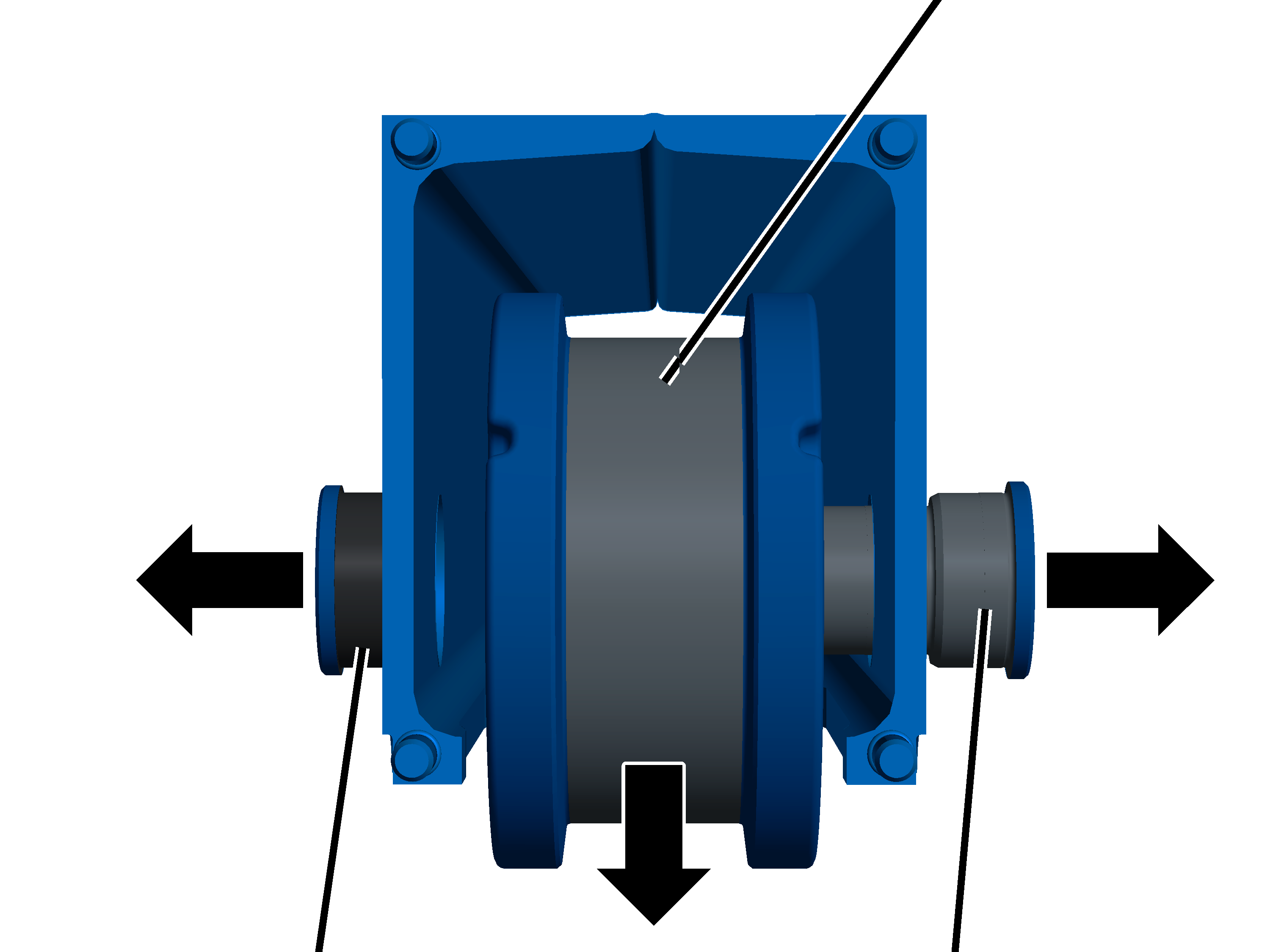

Wheel

Distance bush

Bolt

*   Take out the bolt, distance bush and wheel.
