Danger due to tipping!
The jib arm could tip over during installation and injure persons if it is not correctly secured.
Put the jib arm down on a stable base (e.g. pallet cage, trestles) and secure it.
In the following sections, all components are now installed on the jib arm (trolley, trolley power supply, slewing gear unit, etc.).
|
|
Danger due to tipping! The jib arm could tip over during installation and injure persons if it is not correctly secured. Put the jib arm down on a stable base (e.g. pallet cage, trestles) and secure it. |
|
|

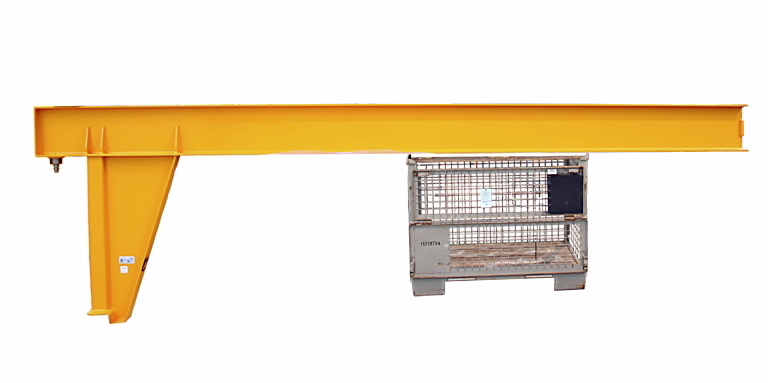

Place the jib arm with the
lower flange onto the base.
Secure the jib arm against
tipping and falling using tensioning straps.
