Note

Synthetic lubricants may not be mixed with mineral-based lubricants!

Lubrication ex works using lubricant with the standard designation “Multi-use grease NGLI2 with solid matter MoS2 KF2”.

Quantity: Apply a liberal coating of lubricant using a brush.

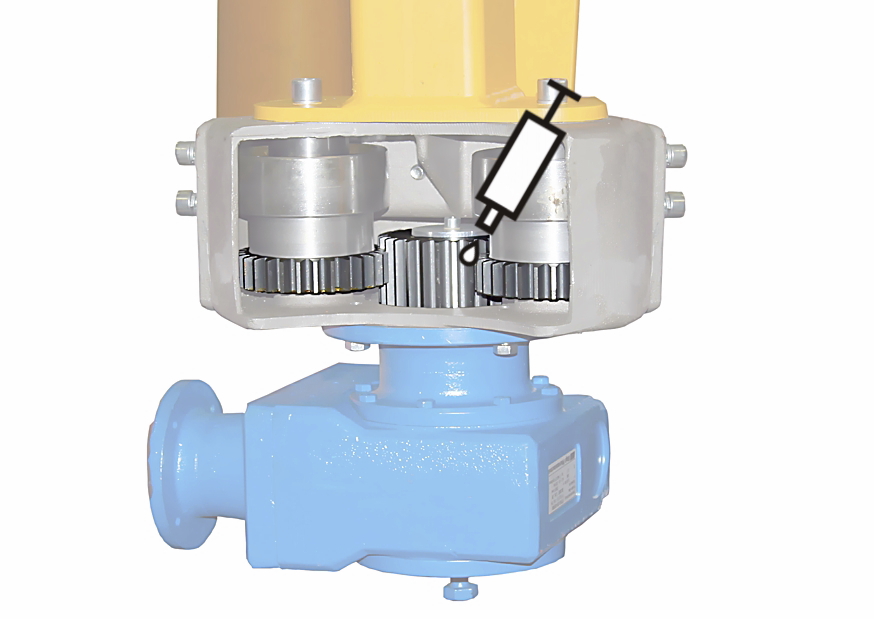

    Lubricate gear rims:

─     When the slewing drive is being disassembled and reassembled.

─     When carrying out a general overhaul.

    Regularly check that the gear rims are completely lubricated and the lubricant is not dirty.

    If the lubricant is dirty: Clean the gear rims and reapply lubricant.

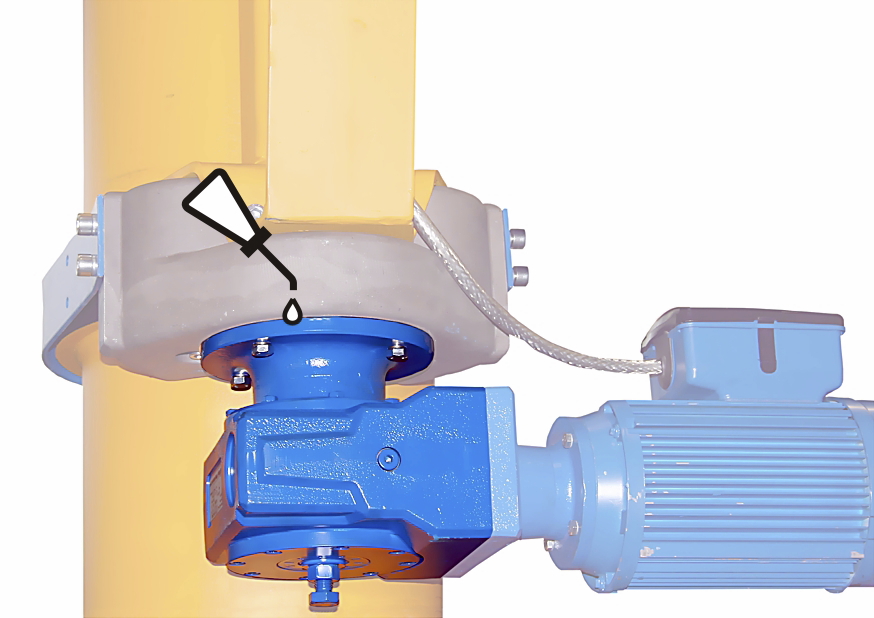

Lubrication ex-works using lubricant with the standard designation “CLP PG DIN 51502”.

Quantity for pillar diameter 273: 0.34 l
Quantity for pillar diameter 323: 0.56 l
Quantity for pillar diameter 355: 0.56 l
Quantity for pillar diameter 406: 0.56 l
Quantity for pillar diameter 457: 0.56 l
Quantity for pillar diameter 558: 1.05 l
Quantity for pillar diameter 660: 1.05 l
Quantity for pillar diameter 762: 2.26 l

    The gear unit in the slewing drive is lubricated for its entire service life. At the end of its service life (in a general overhaul), assess whether the lubricant needs to be changed.

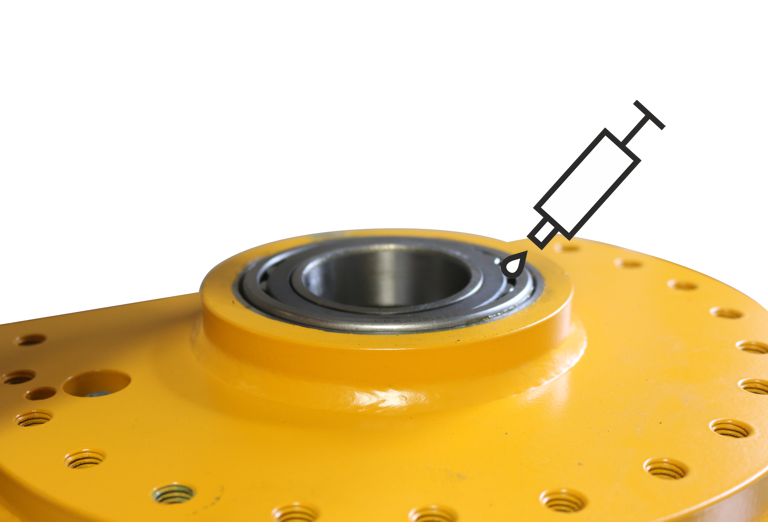

Lubrication using multi-purpose grease ABUS-AN 101336.

Quantity: 80 ml

    During installation, put all the grease in the slew bearing.
