Only with stationary control
This section applies only to a stationary control device. This is especially the case if the crane is controlled with radio remote control and a pendant control is used as a substitute control device.
The stationary control is mounted on a short C-rail section next to the crane control. If necessary, the installation of the stationary control can be adapted for the on-site conditions in the building.
|
|
Where a control is to be installed is specified in the planning documents. |
|
|
Mounting bracket |
|
| |
|
Clamping claw |
Rail mount |
Bolt the mounting bracket
(2x) on the jib arm using clamping claws (4x) on the left and right side.
23 Nm.
Insert the rail mount (2x)
into the mounting bracket (2x).
|

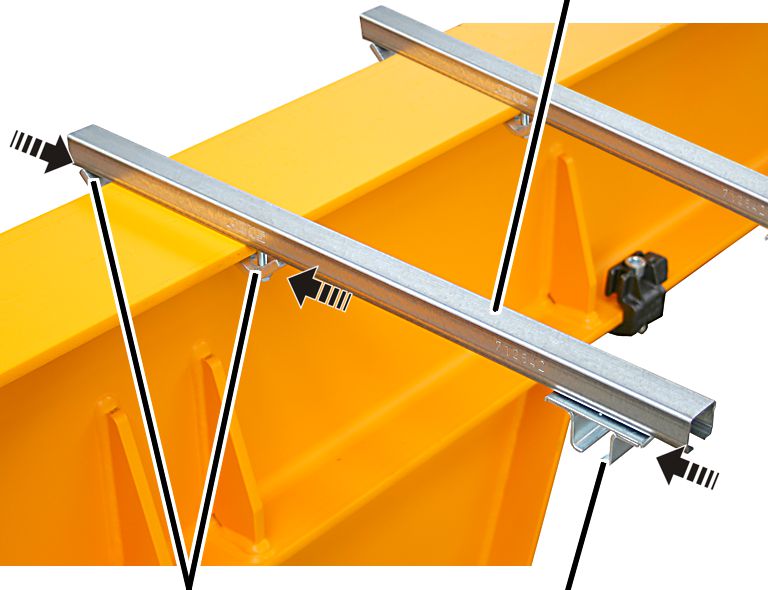

C-rail |
Socket with base plate |
|
| |
Shorten the C-rail so that
it is the same length as the base plate with socket.
Insert the C-rails into
the rail mount.
Tighten all rail mounts.
23 Nm.

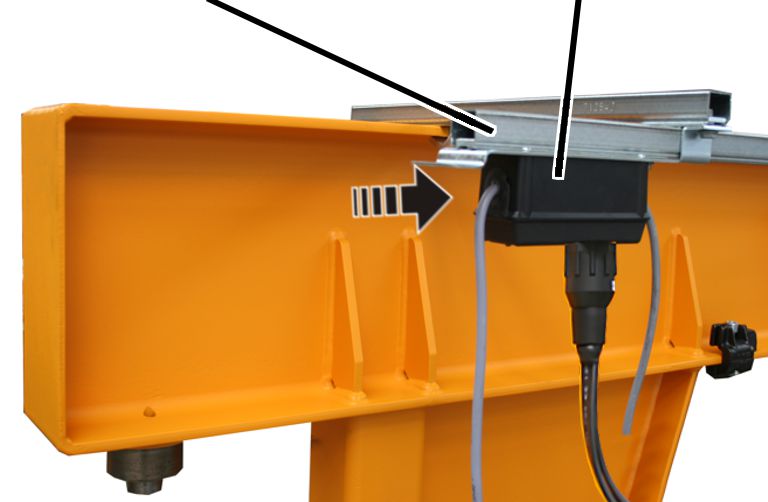

Push the base plate with
socket into the C-rail.
Screw on the base plate
until hand-tight.
