Installing the socket

Depending on the crane version, a socket is now installed, or one of the versions in the following sections.



Only with a control without housing and pendant control on the trolley

This section only applies when the jib crane does not have a housing for the control, and the pendant control is plugged into the trolley.



Installing the socket on the C-rail system

Rib screws

Socket with base plate

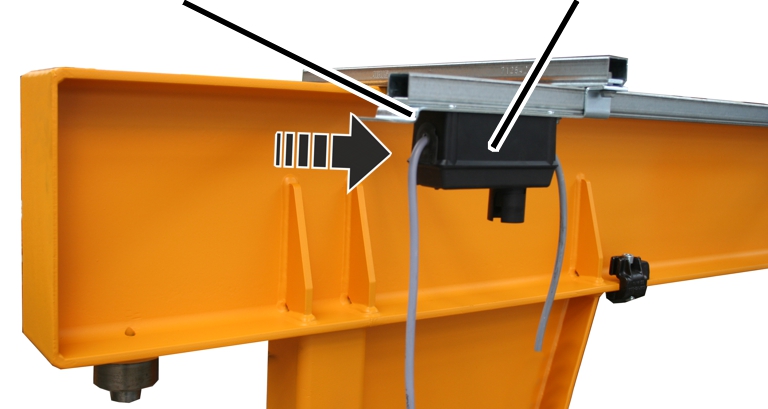

*    Push the base plate with socket into the C-rail.

*    Screw the base plate in place using rib screws M8x16 (2x). 23 Nm.





Socket

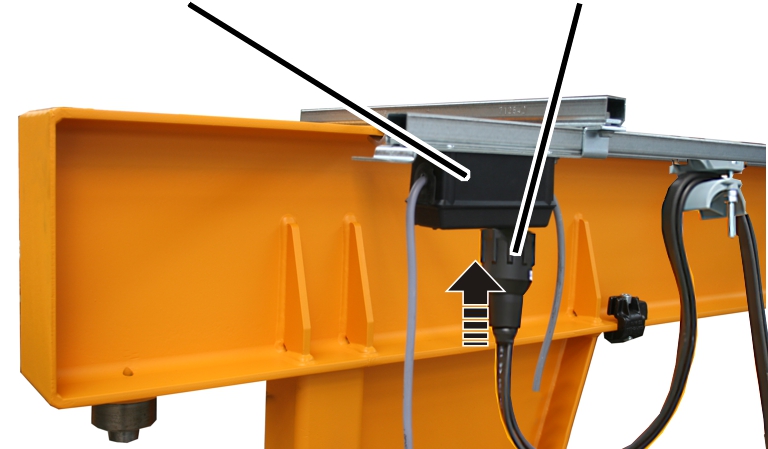

Trolley power supply bayonet connector

*    Plug the bayonet connector for the trolley power supply into the socket on the C-rail system.
