Only with a slewing drive

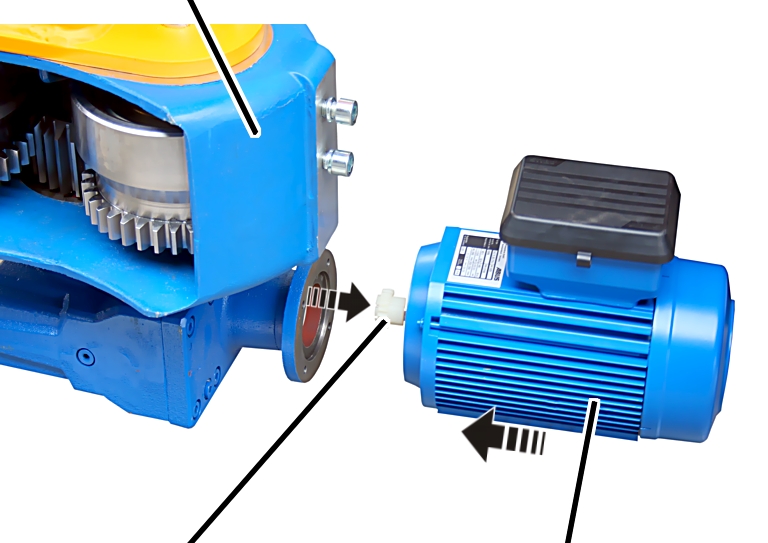

Installing the slewing motor on the slewing gear
|
Slewing gear unit |
|
|
| |
|
Sprocket |
Slewing motor |
Place the sprocket on the output shaft
of the slewing motor.
Secure the sprocket using
a stud.
Place the slewing motor in
the slewing gear.
Screw the slewing motor in
place using hexagon head screws M6x20 (4x). 10 Nm.

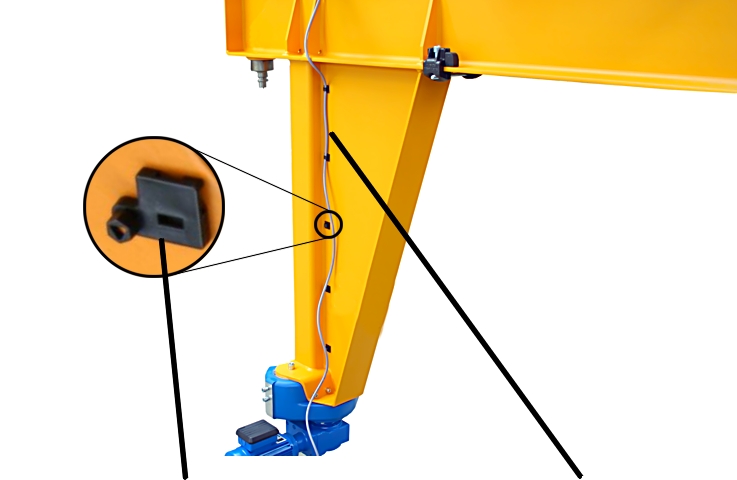

Connecting the slewing drive
|
| |
|
Cable fasteners |
Slewing drive connection cable |
Push the cable fastener
onto the jib bracket.
Lay the connection cable
for the slewing drive along the jib bracket.
Fasten the connection
cable to the cable fasteners using cable ties.
Plug the coupler plug for
the connection cable onto the slewing drive.
Close the housing cover of
the connector housing on the slewing drive.
