Only with a jib crane without adjustable brake
|
Fillister-head screws |
Tab washer |
|
| |
|
Slewing gear unit |
|

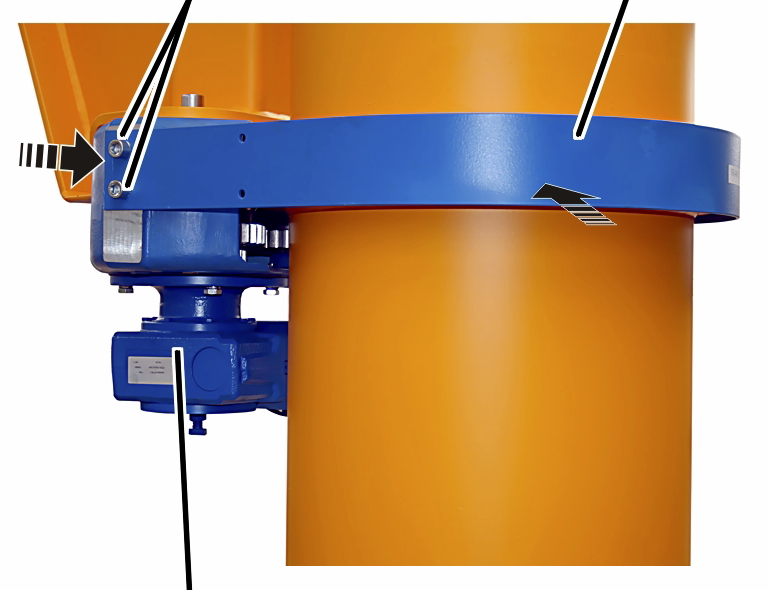

Place the safety plate
around the pillar thrust ring, and push it onto the slewing gear unit.
Screw the safety plate in
place using fillister-head screws.
|
Size |
Number |
Fillister-head screw |
Tightening torque |
|
273 |
4x |
M10x20 |
20 Nm |
|
323 - 457 |
4x |
M12x20 |
35 Nm |
|
558 - 660 |
8x |
M12x25 |
35 Nm |
|
762 |
8x |
M16x25 |
80 Nm |
