Installing the ABURemote receiver

Only with ABURemote radio remote control

This section only applies when the jib crane is controlled using a ABURemote radio remote control.





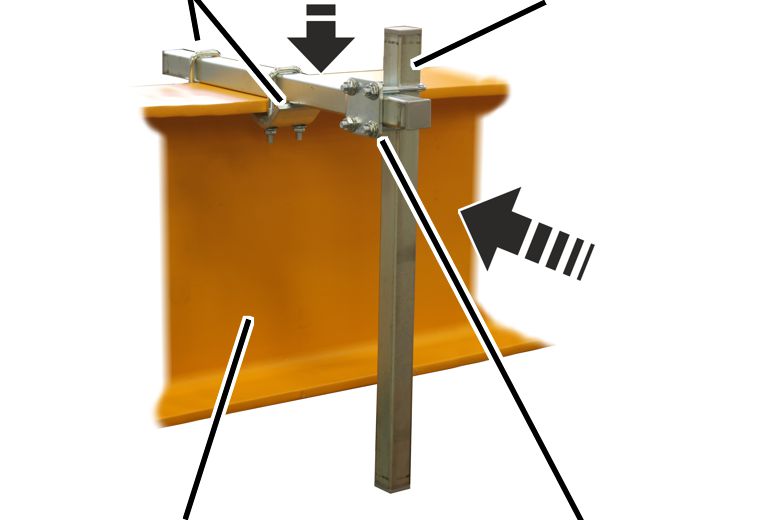

Clamping claws	Vertical square tube
Jib arm	Pipe clamp

    Lay the horizontal square tube onto the jib arm so that the trolley power supply cable carrier does not collide with the housing.

    Screw the horizontal square tube with clamping claws (2x) on the jib arm. 23 Nm.

    Push the vertical square tube with a pipe clamp onto the horizontal square tube.

    Screw the pipe clamp in place. 23 Nm.





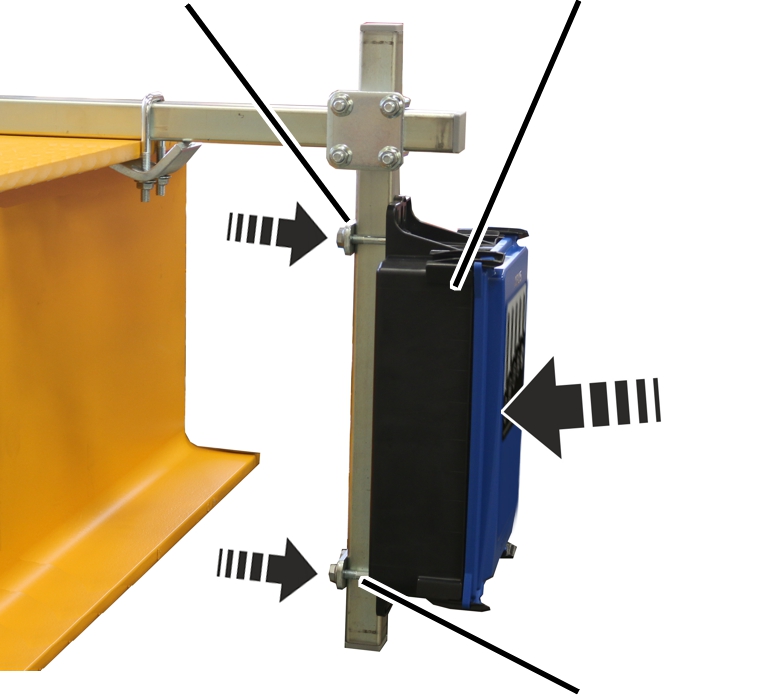

Plate	Receiver
	Threaded bracket

    Push the threaded bracket (2x) through the lugs on the receiver.

    Push the receiver, together with the threaded brackets, onto the vertical square tube from the front.

    Place the plates onto the threaded bracket from the rear.

    Screw the plates in place using rib nuts M8. 23 Nm.





    Connect the connection cables in the receiver. See the wiring diagram.

    Lay the connection cable from the receiver along the square tube to the control.

    Fasten the connection cable with cable ties.
