Installing a wire rope hoist

Only with a jib crane with wire rope hoist



The wire rope hoist must be installed with the drives facing the left side of the jib arm (when viewed from the pillar).



	Left side of the jib arm

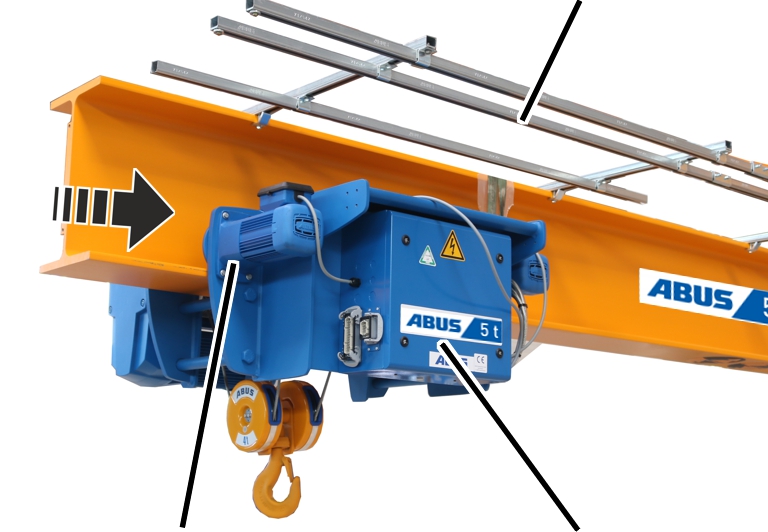

Trolley drive	Wire rope hoist

    Rotate the wire rope hoist so that the drives are facing the left side of the jib arm.

    Observe the occupational health and safety requirements, and raise the wire rope hoist.

    Working from the jib tip, push the wire rope hoist onto the jib arm and put it on with the castors.

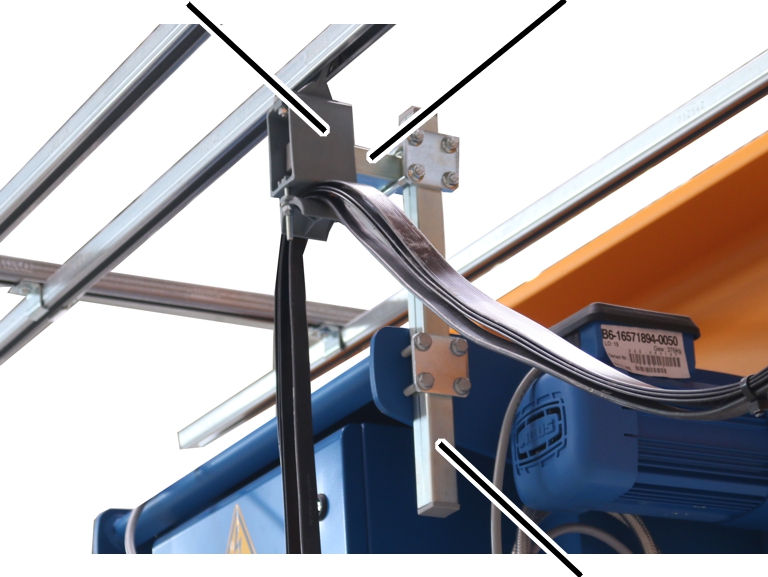

Towing trolley	Horizontal square tube
	Vertical square tube

    Screw the vertical square tube and the plate onto the wire rope hoist using rib screws M8. 23 Nm.

    Push the horizontal square tube into the towing trolley.

    Screw the horizontal square tube onto the vertical square tube using a pipe clamp. 23 Nm.

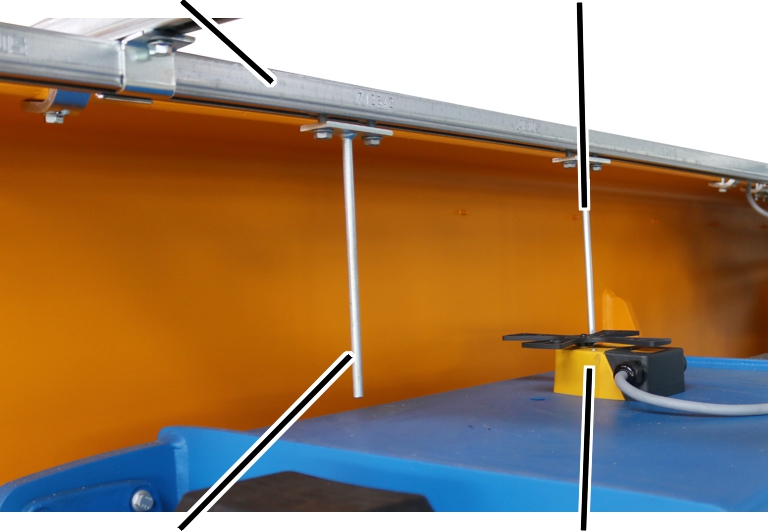

C-rail	Switching lug
Switching lug	Cross-type limit switch

    If necessary: install additional C-rails for the switching lugs on the C-rail system.

    Install the cross-type limit switch on the wire rope hoist.

    Guide the connection cable from the cross-type limit switch into the wire rope hoist and connect it.

    Push the switching lugs into the C-rail and bolt them in place.
