Rotate the operating direction sign for the slewing direction so that the black arrow (yellow background) is pointing to the right when viewed from the pillar.

The slewing direction of the jib crane is always viewed from the pillar, meaning that it is as if the crane operator has his or her back to the pillar and is looking towards the jib tip.

    Fasten the operating direction sign below the jib arm flange.

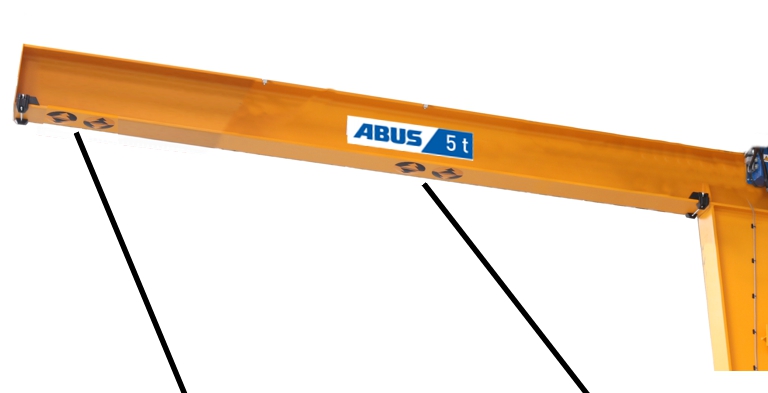

─     For jib arms up to 5 m: affix the operating direction sign for trolley travel and slewing to the jib tip.

─     For jib arms more than 5 m: affix the operating direction signs for trolley travel and slewing to the jib tip and to the centre of the jib arm.

    Connect the crane to the mains supply for testing purposes.

See “General Product Manual for ABUS Cranes”.

    Use the pendant control to test the travel direction of the trolley and the slewing direction of the slewing drive.

See “General Product Manual for ABUS Cranes”.
