Only with uninstalled wire rope hoists
|
|
Danger from falling components! The wire rope hoist can fall from the lorry and kill or injure people if it is not correctly loaded and secured. Transport and securing of loads must be performed by trained persons. |
Observe the following points, amongst others:
|
|
|

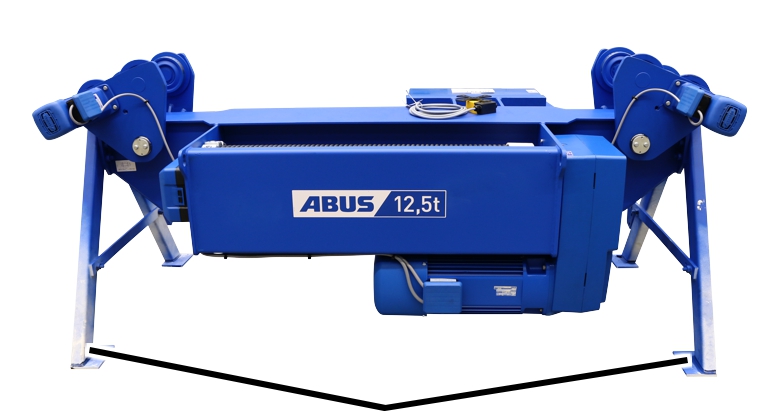

Transport supports |
Secure all loose parts and cables.
Secure the load according to
regional regulations.
Secure the wire rope hoist to
the loading area with suitable lifting tackle.
Secure load hook so that it
cannot slide back and forth during transport.
● The cable guide holds the wire rope firmly against the cable drum. Thus, no loops can form on the cable drum and the wire rope is free of kinks.
The transport supports may only be removed if the wire rope hoist is appropriately fixed and secured.
