Mounting the trolley towing arm

The trolley towing arm is installed above the hoist panel. It pulls the electrical cables for the trolley power supply (festoon cable system or energy chain) and the cross-type limit switch of the trolley travel limit switch back and forth parallel to the trolley.

The trolley towing arm must be installed differently, depending on the main girder (I-beam or box girder) and the type of power supply (festoon cable system or energy chain).

Only with energy chains

Installing energy chain on carrying tube

The energy chain is fastened to the horizontal carrying tube.

	Individual components of the energy chain

Fasten the individual components of the energy chain (deflection bracket and connection element) with bolts and SL safety clip to the square tube.

Cable ties	Flat cable

Connection element		Energy chain

Lead through the flat cable from the energy chain and guide in a curve around the deflection bracket.

Fasten the flat cable with cable ties to the upper section of the deflection bracket.

Insert the energy chain into the connection element and click into place.

Only with festoon cable system

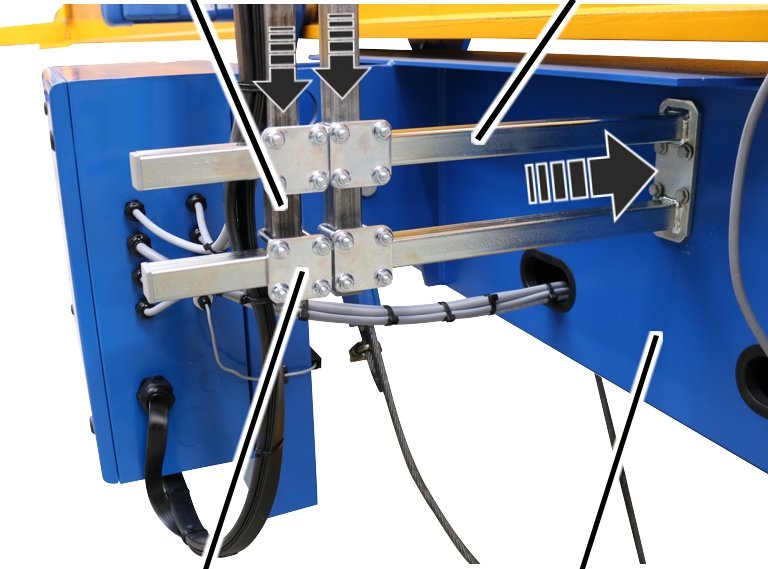

Mounting the trolley towing arm

Vertical square tube	Trolley towing arm

Pipe clamp with plate	Trolley frame

Screw trolley towing arm onto the trolley frame with rib screws. 15 Nm.

Screw vertical square tube with rib screws M8 and plate to the trolley towing arm. 15 Nm.

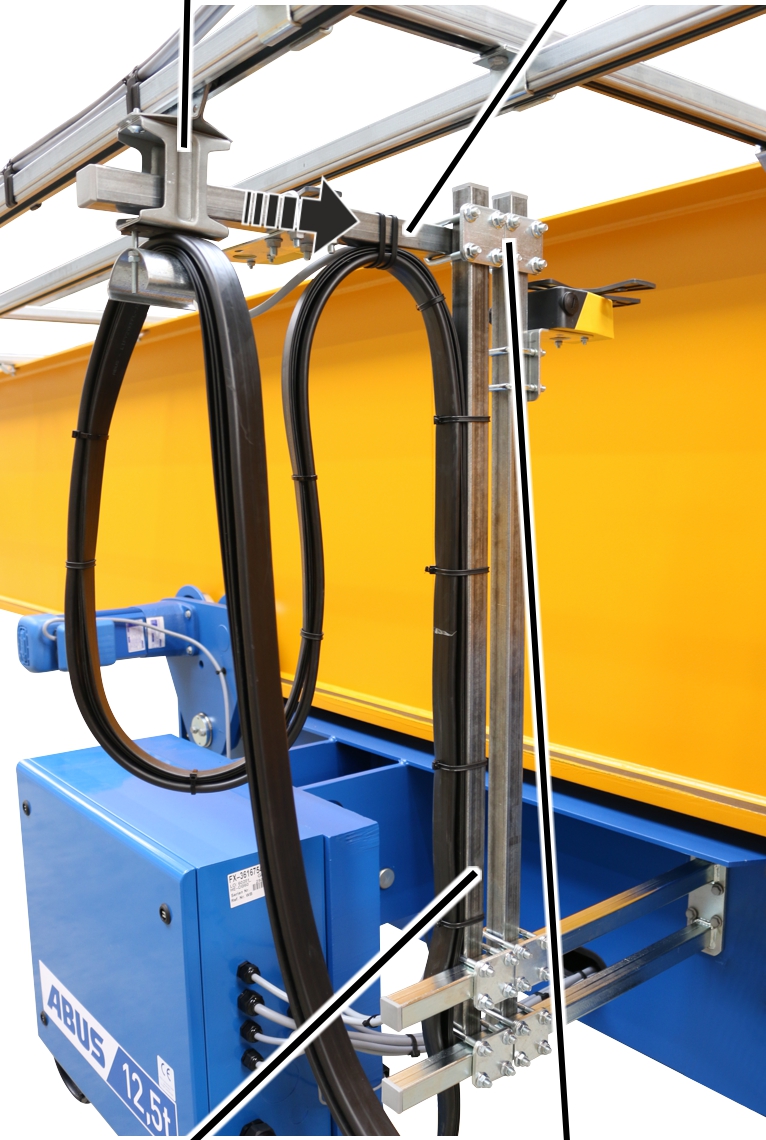

Towing trolley	Horizontal square tube

Vertical square tube	Pipe clamp with plate

Push the horizontal square tube into the towing trolley.

Screw the horizontal square tube onto the vertical square tube using a pipe clamp. 15 Nm.
