Installing the wheel



If the wheel is damaged or worn, it must be replaced by a new wheel.



Fitting the wheel

Bolt



Wheel

Side panel

*   Hammer the wheels (2x) onto the bolt.







Wheel

Bolt

Side panel

*   Insert circlips (2x) into the inner wheels using pliers.

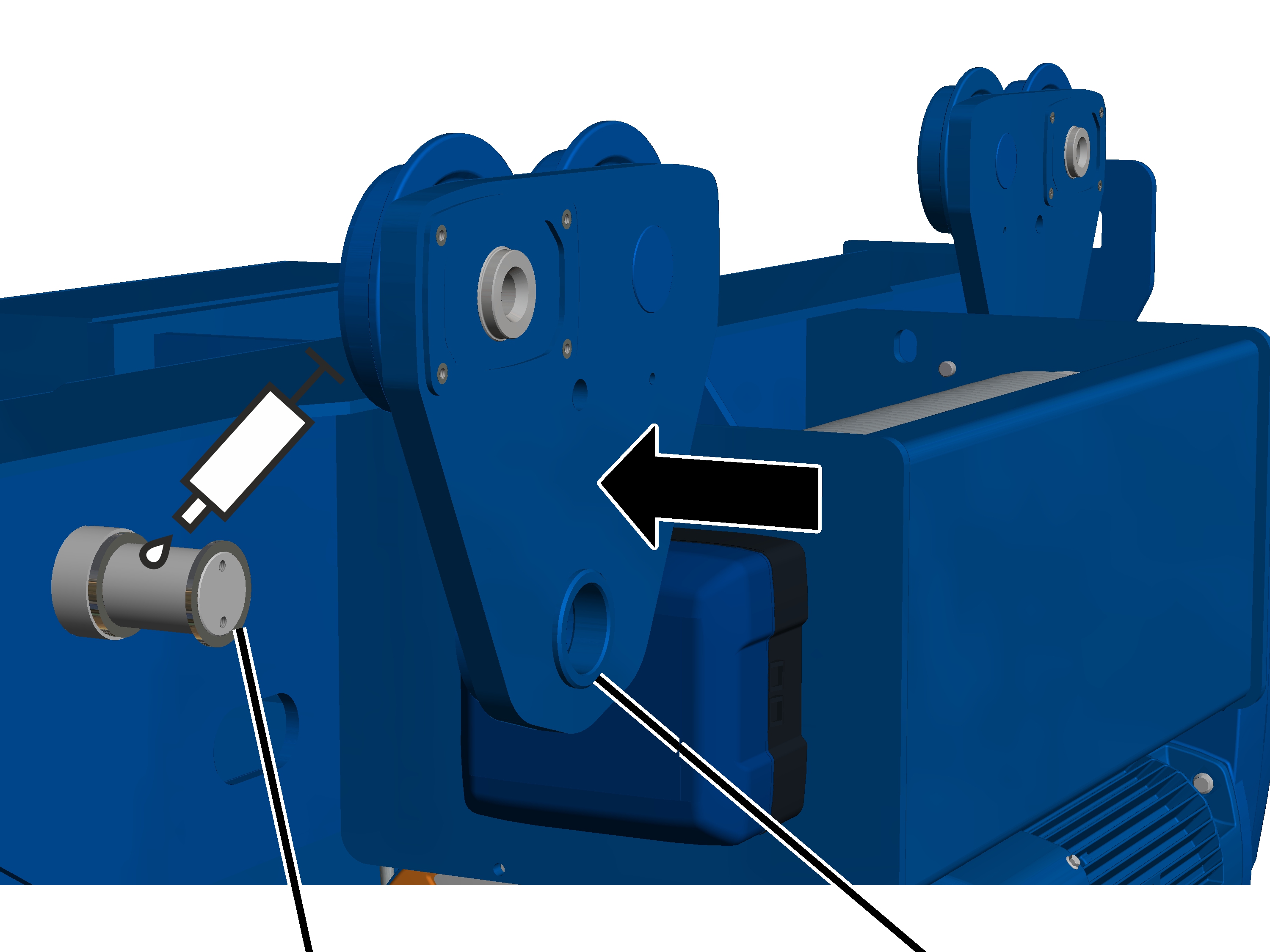

Fitting the side panel

Bearing bolt

Side panel

*   Lubricate bearing bolt.

Lubricant: “High temperature paste PBC 1574 SF”. For details, see Lubricants.

*   Push the side panel onto the bolt in the end carriage.







Side panel

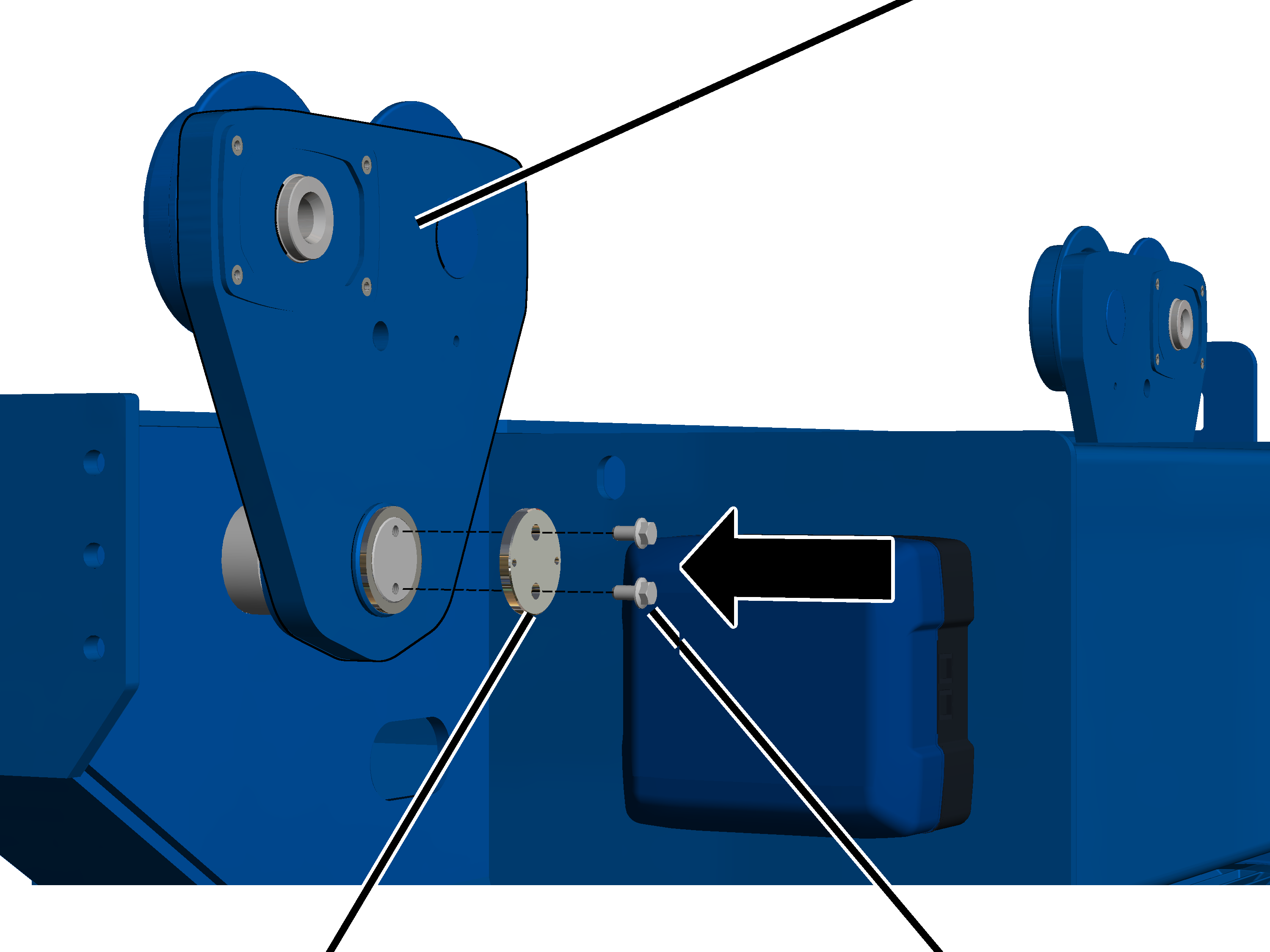

Cover

Rib screw

*   Bolt the cover onto the side panel with the rib screws M10x30 (2x). 75 Nm.





Installing the drive

*   Determine the weight of the drive. See the ABUS Drive product manual.

*   Secure the drive so that the weight can be held safely and the output shaft will not be subject to load (e.g. insert in round sling).





Side panel

Drive

Output shaft



*   Lubricate the gearing on the output shaft.

Lubricant - Fuchs Lubritech high temperature paste PBC 1574.





Side panel

Drive

*   Push the drive into the wheel.

*   Bolt on the drive with the rib screws M10x30 (4x). Tighten to 75 Nm.





Connecting the drive

Only with contactor control



Pin multipoint connector on the drive

Pin multipoint connector on the drive

Connection cable of drive

Rectifier for brake

*   Insert the connection cable for the drive in the pin multipoint connector on the drive.

*   Insert the rectifier for the brake in the pin multipoint connector on the drive.

*   Lay the plug-in connections and connection cable in the connector housing.









Only for frequency converter



Pin multipoint connector on the drive

Pin multipoint connector on the drive

Bush multipoint connector for drive

Bush multipoint connector for brake

*   Insert the bush multipoint connector for the drive on the pin multipoint connector on the drive.

*   Insert the bush multipoint connector for the brake on the pin multipoint connector on the drive.





Plug-in connection

Cable bushing

Screening clamp connection

Connection cable

*   Push the front end of the connection cable (where the sheathing around the shield has been removed) into the screening clamp connection.

*   Fasten the connection cable to the screening clamp connection using cable ties.

*   Lay the plug-in connections and connection cable in the connector housing.

*   Close the connector housing.









Checking the wire rope hoist

*   Set the wire rope hoist down again.

*   Put the wire rope hoist into operation.

*   Check the function of the wheel.
