The serial number allows your ABUS product to be clearly identified and assigned.

To access the documentation on ABUS.help, you will also need the order number under which the crane was ordered. Access to the documentation on ABUS.help is only possible with the correct combination of order number and serial number. The serial number of the crane or the hoist(s) can be used as the serial number.

The order number begins with a 2-digit letter code, followed by the 8-digit order number beginning with 36xxxxxx and then the item number. Only the 8-digit order number is required to log in to ABUS.help.

The serial number begins with a three-digit product identifier, followed by the 6-digit serial number.

All information is specified on the crane:

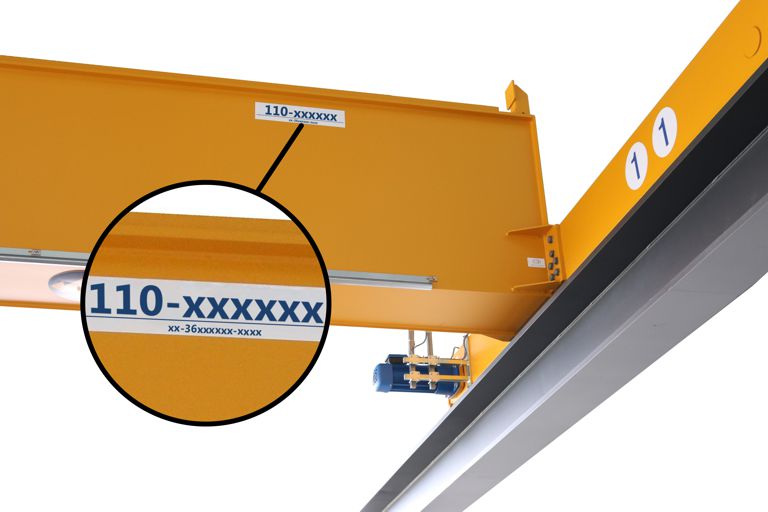

─     Overhead travelling crane: The order number and serial number are indicated on a sticker affixed to the main girder. The numbers are written in large letters so that they can be read from the ground.
Serial number: 110-xxxxxx
Order number: xx-36xxxxxx-xxxx

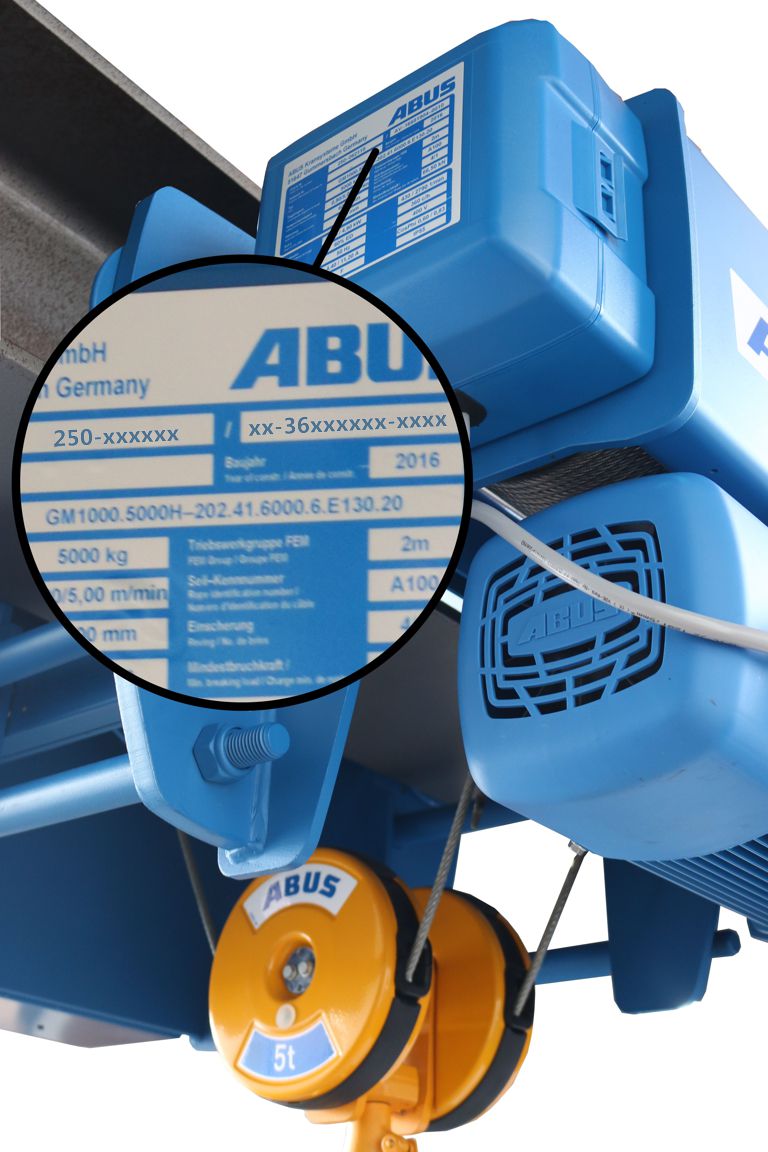

─     Wire rope hoist: The order number and serial number are indicated on the cover of the hoist limit switch on the type plate.
Serial number: 250-xxxxxx
Order number: xx-36xxxxxx-xxxx

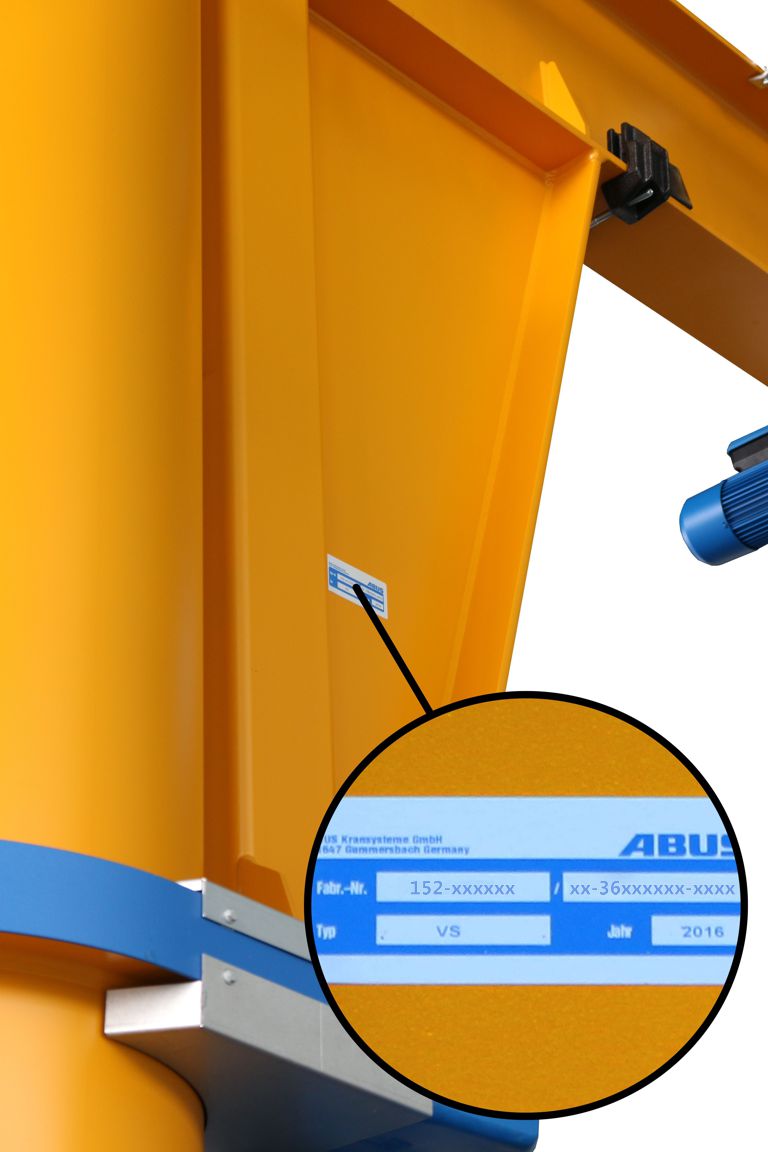

─     Jib crane: The order number and serial number are indicated on the bracket of the jib arm on the type plate.
Serial number: 151-xxxxxx or 152-xxxxxx
Order number: xx-36xxxxxx-xxxx

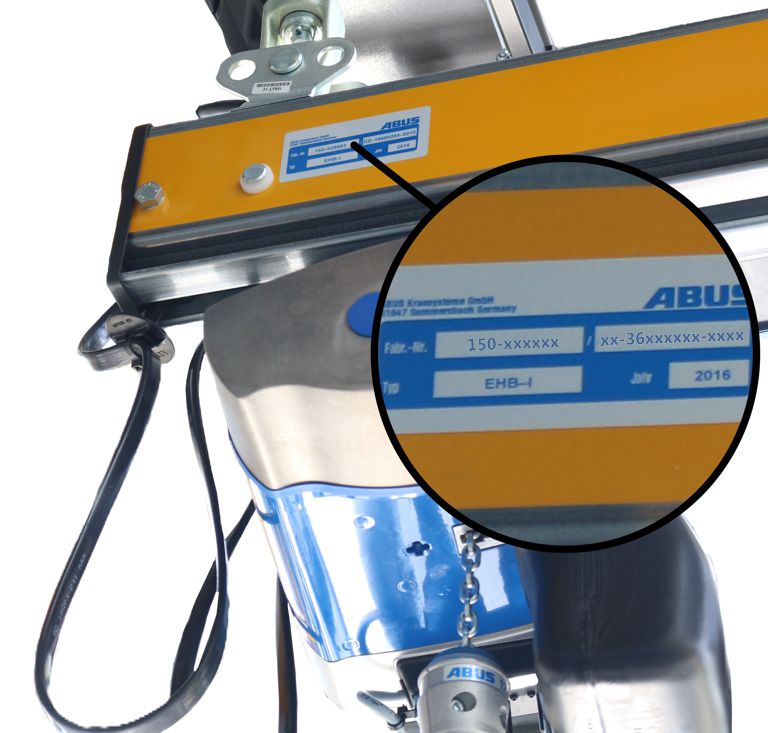

─     HB crane: The order number and serial number are indicated on the type plate on the crane girder of the HB crane.
Serial number: 150-xxxxxx
Order number: xx-36xxxxxx-xxxx

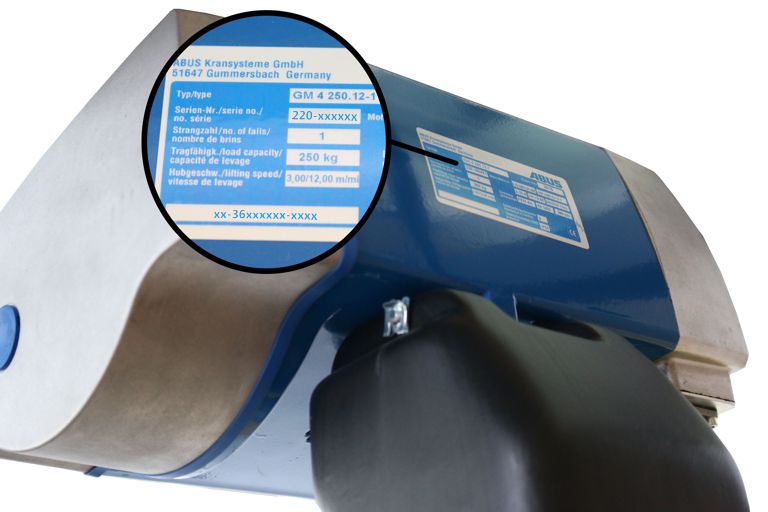

─     Chain hoist: The order number and serial number are indicated on the type plate on the housing of the chain hoist.
Serial number: 220-xxxxxx
Order number: xx-36xxxxxx-xxxx

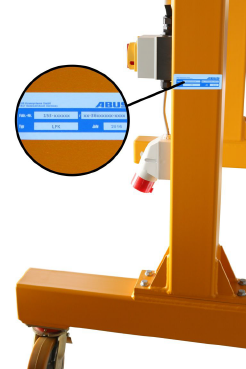

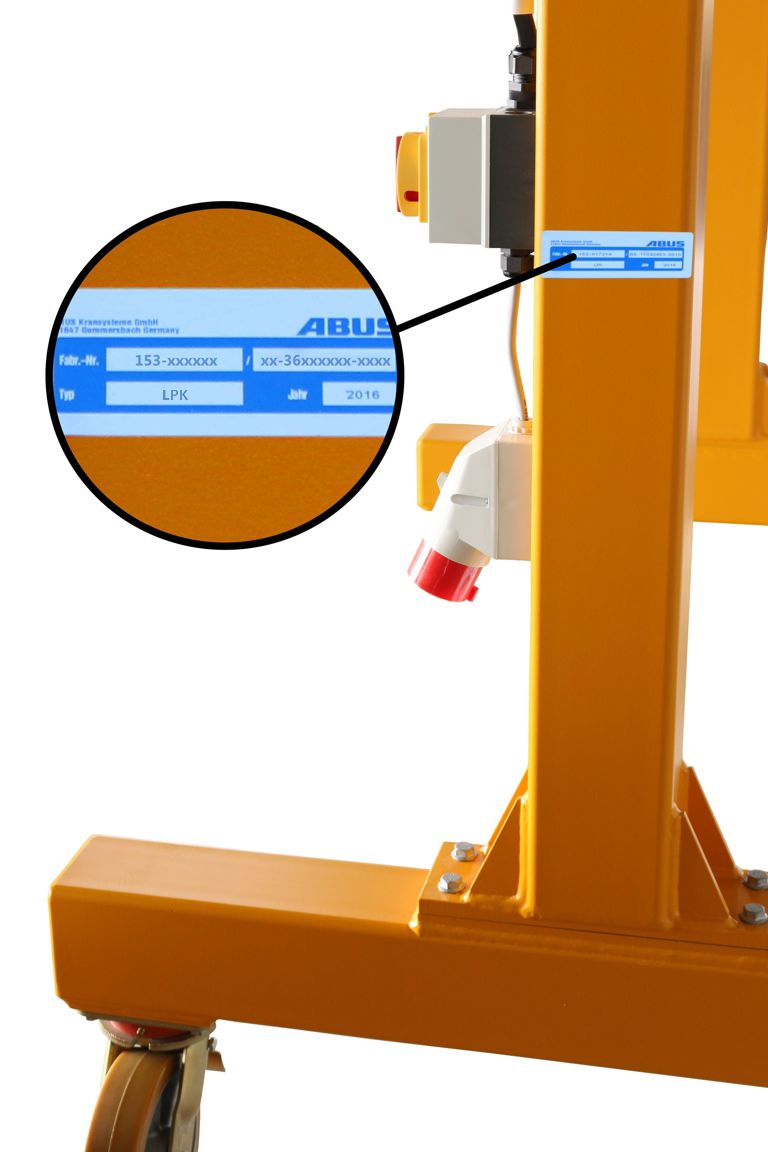

─     Mobile gantry crane: The order number and serial number are indicated on the support of the mobile gantry crane on the type plate on the housing of the chain hoist.
Serial number: 153-xxxxxx
Order number: xx-36xxxxxx-xxxx
