Using replacement control

Only with pendant control
as replacement control



If the crane is fitted with a pendant control as a replacement control, the pendant control can be used when the radio transmitter is not available.

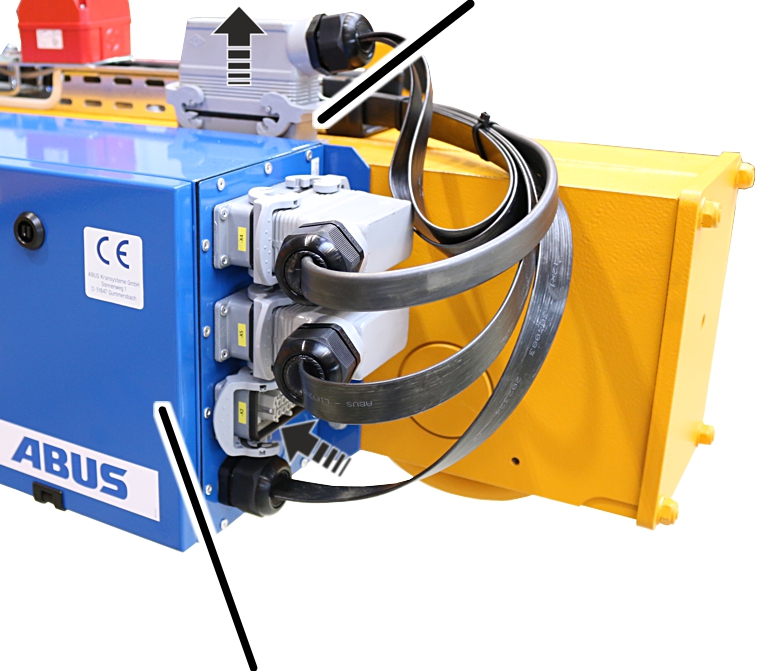

	Dummy socket
Crane panel

   Unplug the connection cable for the receiver from the crane control.

   Unplug the connection cable for the mobile control from the dummy socket and plug into the crane control.

   Plug the connection cable for the receiver into the dummy socket.

   Move the pendant control with control cable to the operating range.

   Plug the control cable of the pendant control into the mobile control.





Only with ABUControl



When the crane is operated with a pendant control as a replacement control, continuous motion control is active irrespective of the KranOS setting.



Bush multipoint connector X2

   Open the crane panel.

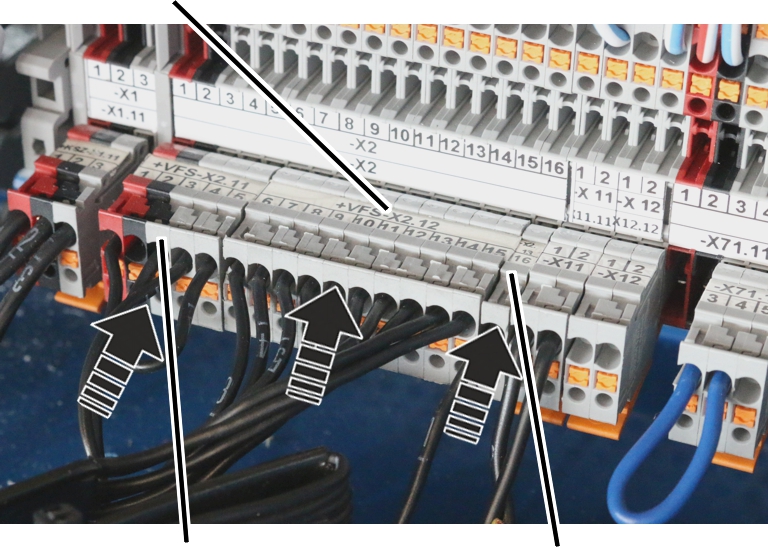

   Find bush multipoint connector X2.

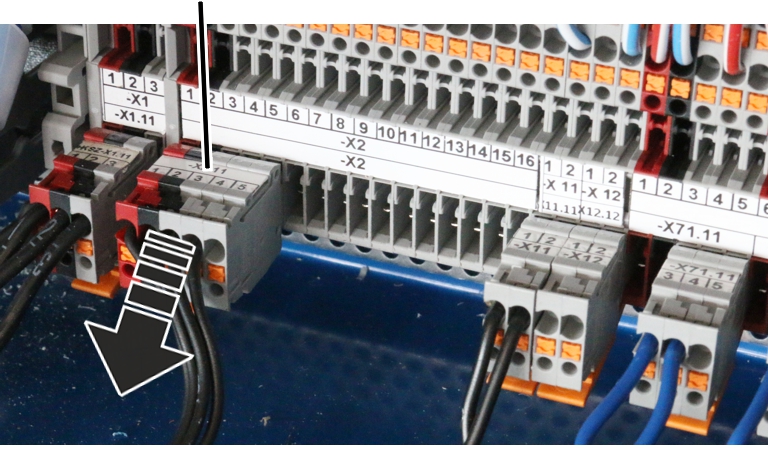

   Detach bush multipoint connector.





The bush multipoint connectors from the pendant control have already been guided into the crane panel and laid ready there.



Bush multipoint connector X2 12
Bush multipoint connector X2 11	Bush multipoint connector X2 13

   Insert bush multipoint connector from pendant control.

─     Bush multipoint connector X2.11 (terminal 1 to 5)

─     Bush multipoint connector X2.12 (terminal 6 to 15)

─     Bush multipoint connector X2.13 (terminal 16 to 27. Depending on the crane equipment, only individual terminals may be available and not all those described here)

─     Bush multipoint connector X2.14 (terminal 28 to 38. Depending on the crane equipment, only individual terminals may be available and not all those described here, or the bush multipoint connector may be entirely omitted)
