Danger from electric shock! The housing contains some parts with live voltage which could lead to electric shock. As a result of this people can be killed or injured. Before opening the pendant control, completely switch off the pendant control or the entire crane. |
Place the bayonet nut on and
turn it.
Disconnect the pendant control
from the control cable.
|
Emergency stop |
|
|
| |
|

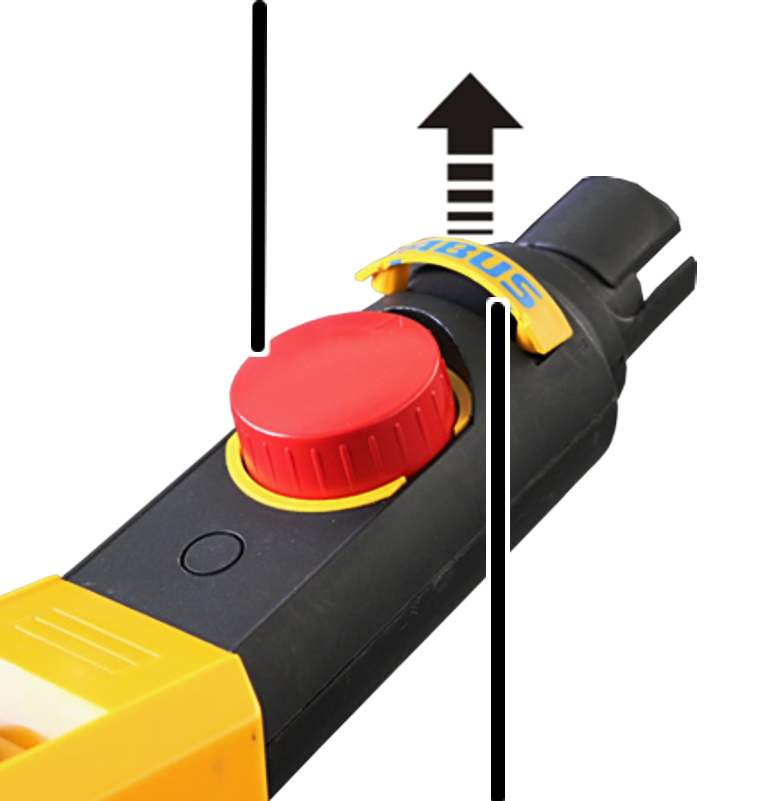

ABUS sign | |
Pry out the ABUS sign from the
emergency stop housing.
Remove exposed self-tapping screws (2x) below the ABUS sign.
|
|
|
|
| |
|
|

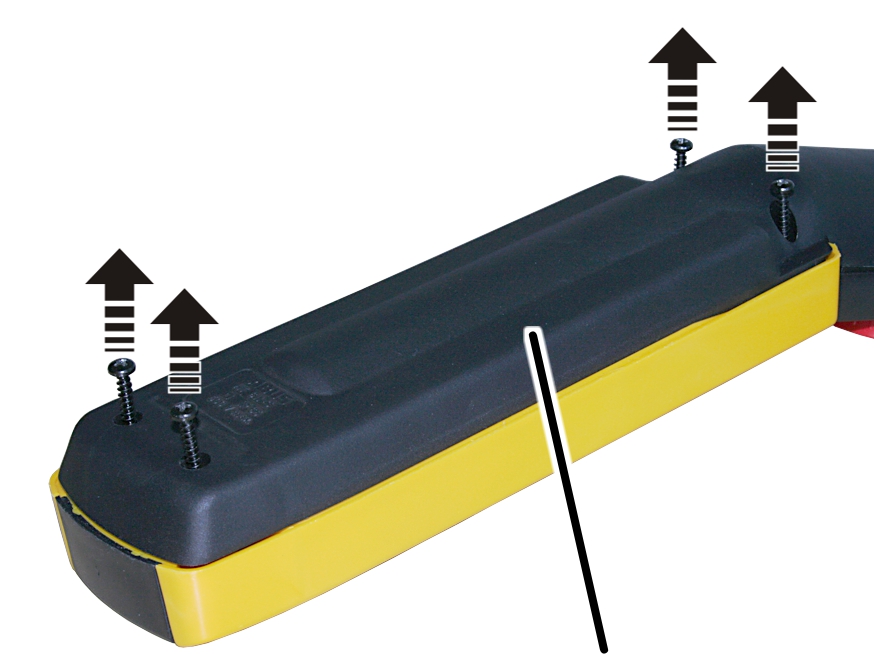

Bottom part of housing |
Remove self-tapping screws (4x)
for bottom part of housing.
Separate the top and bottom part
of housing from each other.
|
|
|
|
|

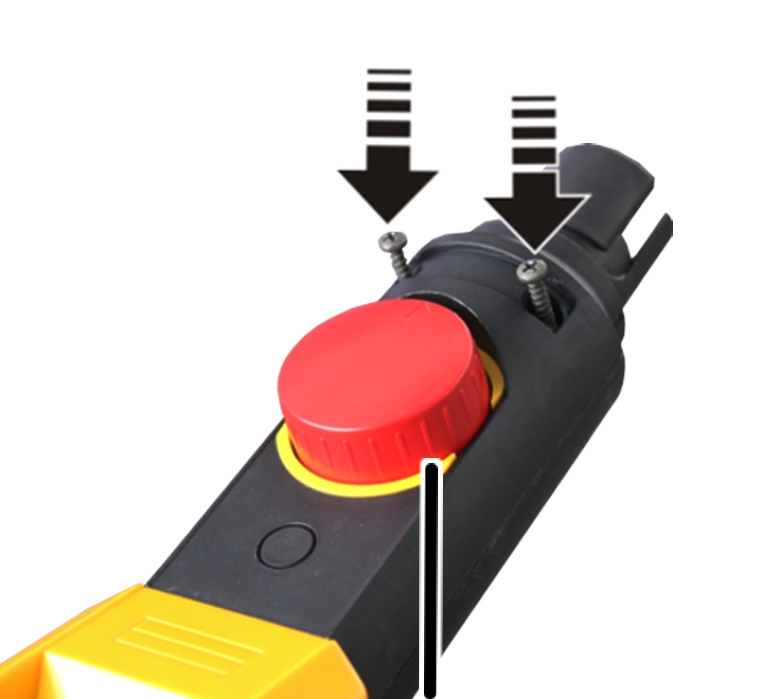

Emergency stop |
Screw on the emergency stop
housing with self-tapping screws 3x25 mm (2x) to 0.8 Nm.
|
|
|
|
| |
|
|

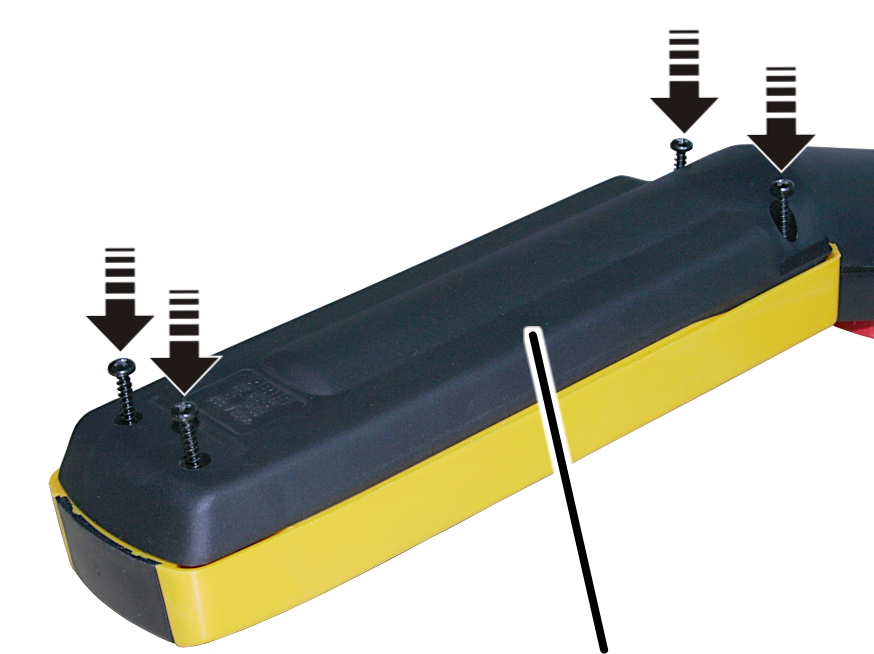

Bottom part of housing |
Tighten the bottom part of
housing with self-tapping screws 3.5x25 mm (4x). 0.8 Nm.
Fit the ABUS sign above the
emergency stop in the emergency stop housing.
