The pendant control consists of:

─     Pendant control

─     Control cable

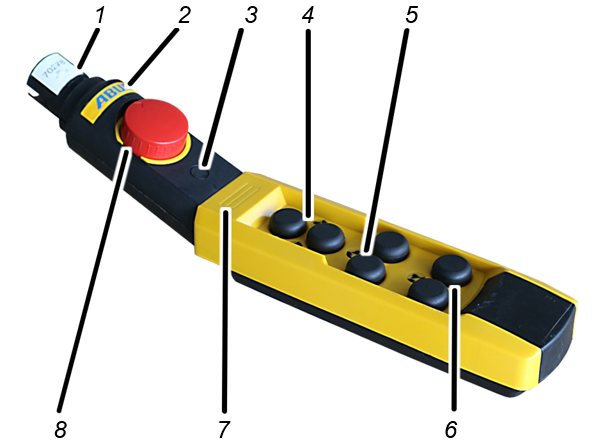

Pendant control:

─     1. Connection for the control cable

─     2: ABUS sign

3: Installation point for additional functions, e.g.: key switch

─     4: Buttons for lifting and lowering

─     5: Button for trolley travel

─     6: Button for crane travel

Only for jib crane: instead of the button labels for crane travel there are button labels for slewing.

─     7: Installation location for load display

─     8: Emergency stop button

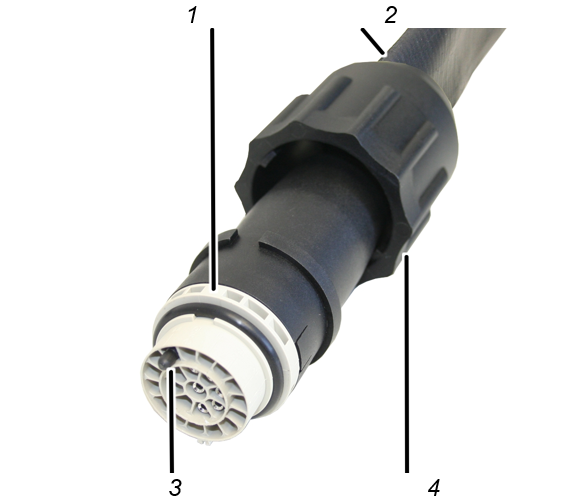

Control cable:

─     1: Bayonet connector

─     2: Control cable

─     3: Coding pin

─     4: Bayonet nut
