Only with contactor control
|
|

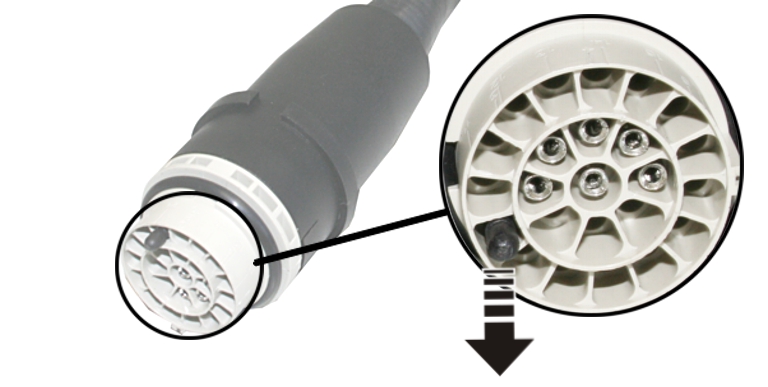

Remove coding pin with
pliers.
If contact 24 on the bush part is not assigned, provide this position with a coding pin. The coding pin prevents a control cable with a control pendant with direct control (HT-D) being connected inadvertently with a control cable with contactor control.
|
|
Remove coding pin with
pliers.
Using pliers, break off the
coding pin at the marked break point.
● The coding pin can no longer be removed. It prevents the control cable from being plugged into a crane with contactor control.
