Depending on the conditions, the pendant control can be connected to the mobile control or the trolley (chain hoist or wire rope hoist) with the control cable. The following section shows the connection process to the mobile control. The connection process for the trolley does not differ significantly from this.

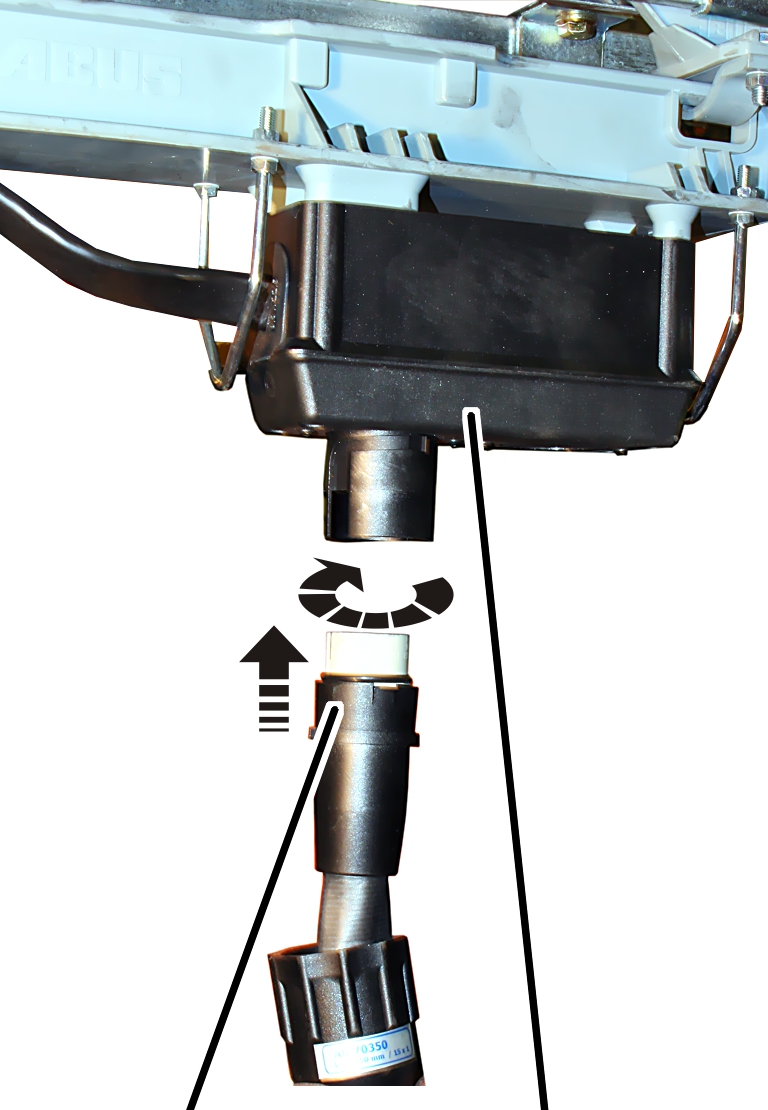

   Insert the bayonet connector for the control cable onto the socket on the control trolley. There is a notch to ensure the bayonet connector only fits in one position.

   Place the bayonet nut on and turn it.

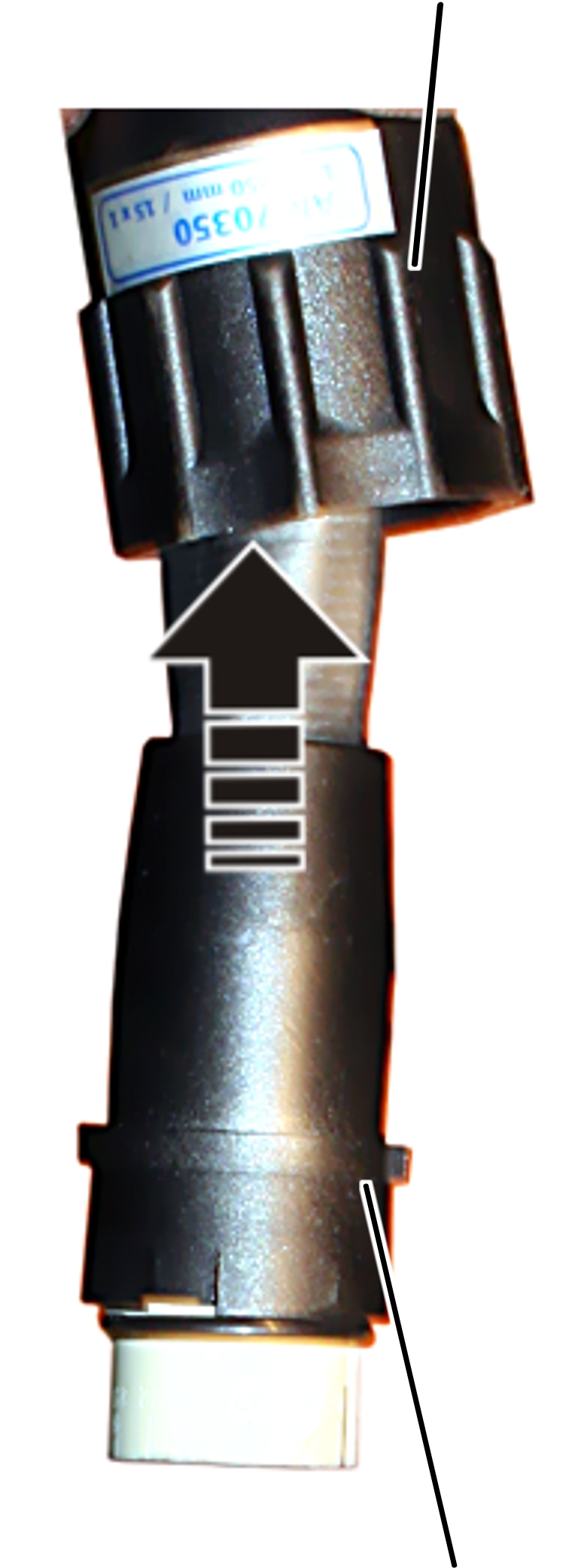

   Pull the bayonet nut back on to the control cable.

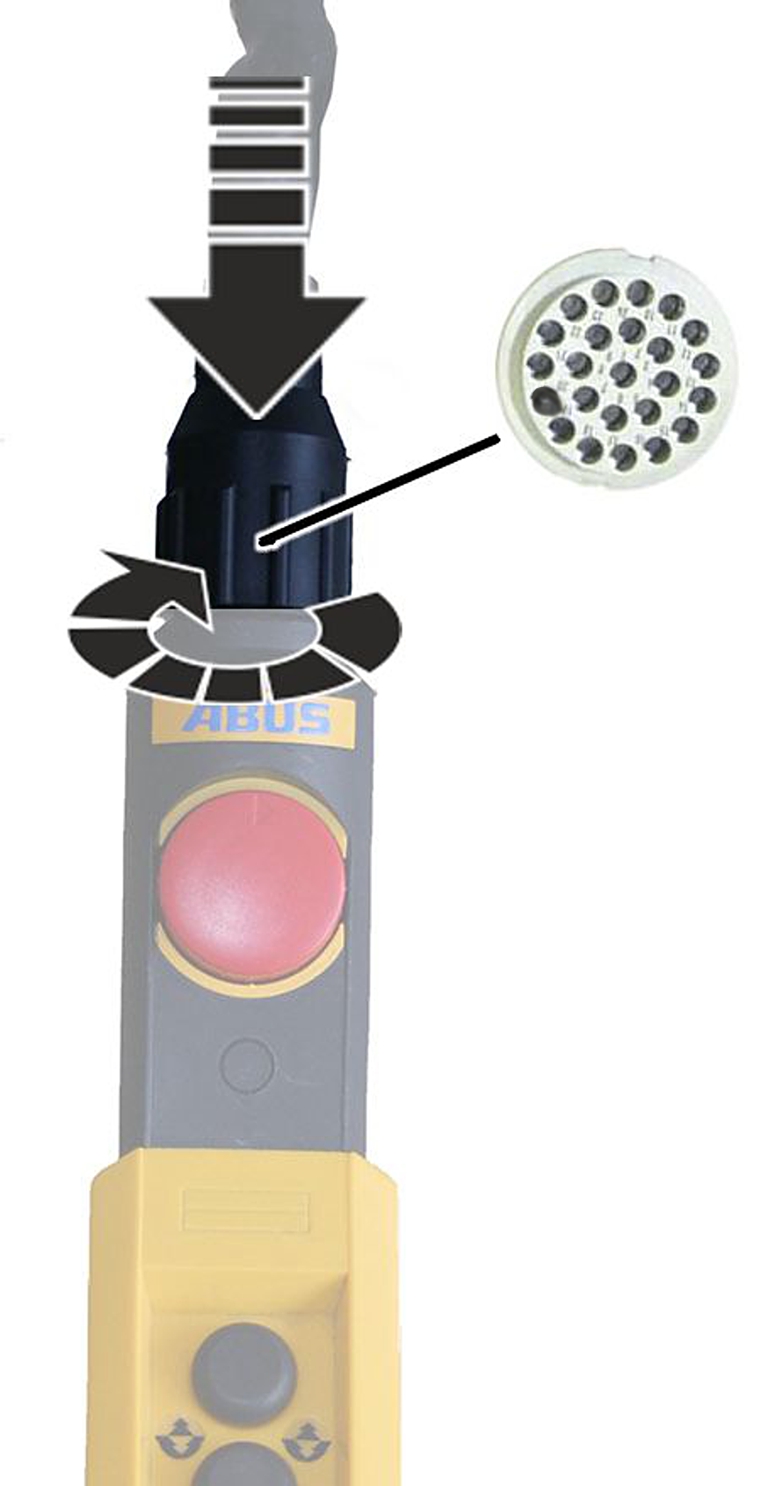

   Insert bayonet connector into bayonet coupling.

   Place the bayonet nut on and turn it.
