Technical data

Dimensions and weights:





Type

Flange width F [mm]

Weight of trolley [kg]

Add. weight of drive [kg] for electric trolley

Load capacity [kg]

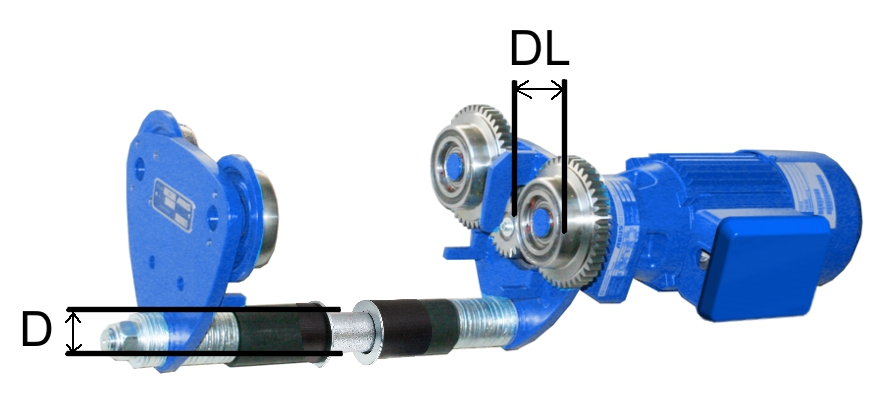

Wheel Ø DL [mm]

Bolt Ø D [mm]

HF 3

42 – 120
121 – 180

4.1
4.5



300
300

56

22

HF 6

42 – 120
121 – 220

6.0
6.7



580
580

65

30

HF 14 and EF 14

64 – 125
126 – 200
201 – 300
301 - 400

11.0
11.9
12.9
13.6

20.0

1400
1400
1400
1150

80

34

HF 22 and EF 22

82 – 150
151 – 200
201 – 300
301 - 400

23.8
24.8
26.9
28.4

20.0

2200
2200
2200
1800

112

50

HF 36 and EF 36

90 – 155
156 – 200
201 – 300
301 - 400

28.6
29.9
32.2
34.4

20.0

3600
3600
3600
2900

112

60

EF 50

100 – 190
200 – 300

87.8
94.8

30.0

5000

140

70

Table: dimensions and weights. Load capacity refers to the classification 2m according to FEM 9511.





Electrical connection



Electric trolley EF 14 with drive EF 80

Electric trolley EF 22 and EF 36 with drive EF 112

Operating voltage

220 – 240 V

380 - 415 V

460 – 500 V

Mains frequency

50 Hz

50 Hz

50 Hz

Duty cycle

50 %

50 %

50 %

Switching rate

240 c/h

240 c/h

240 c/h

Rated power

0.06 / 0.25 kW

0.06 / 0.25 kW

0.06 / 0.25 kW

Start-up current I A

1.37 / 7.7 A

0.79 / 4.5 A

0.67 / 3.7 A

cos phi A

0.75 / 0.9

0.75 / 0.9

0.75 / 0.9

Rated current I N

0.76 / 1.61 A

0.44 / 0.93 A

0.37 / 0.78 A

cos phi N

0.6 / 0.7

0.6 / 0.7

0.6 / 0.7







Electric trolley EF 14 with drive EF 80

Electric trolley EF 22 and EF 36 with drive EF 112

Operating voltage

208 – 230 V

360 – 400 V

440 – 480 V

Mains frequency

60 Hz

60 Hz

60 Hz

Duty cycle

50 %

50 %

50 %

Switching rate

240 c/h

240 c/h

240 c/h

Rated power

0.07 / 0.3 kW

0.07 / 0.3 kW

0.07 / 0.3 kW

Start-up current I A

1.71 / 10.2 A

0.99 / 5.9 A

0.77 / 4.3 A

cos phi A

0.7 / 0.9

0.7 / 0.9

0.75 / 0.9

Rated current I N

0.9 / 1.86 A

0.52 / 1.08 A

0.43 / 0.84 A

cos phi N

0.6 / 0.7

0.6 / 0.7

0.6 / 0.7







Electric trolley EF 50 with drive EF 140

Operating voltage

380 – 415 V

440 – 480 V

Mains frequency

50 Hz

60 Hz

Duty cycle

50 %

50 %

Switching rate

240 c/h

240 c/h

Rated power

0.09 / 0.37 kW

0.11 / 0.44 kW

Start-up current I A

1.02 / 5.0 A

1.02 / 5.0 A

cos phi A

0.8 / 0.9

0.8 / 0.9

Rated current I N

0.60 / 1.0 A

0.60 / 1.0 A

cos phi N

0.7 / 0.8

0.6 / 0.75





Electrical connection brake

Drive

Voltage

Electrical power

EF 80 / 112

195 VDC

21 W

EF 140

195 VDC

25 W



Ambient conditions for operation:





Ambient temperature
(for normal operation)

- 10 °C and + 40 °C

Ambient temperature
(for reduced duty cycle)

+ 40°C to 80°C



Noise emissions:

Trolley

Sound pressure level LP, m dB(A) at distance of 4 m

Sound pressure level LW, m dB(A)

EF 80 / EF 112

67

84

EF 140

64

81

Table: Noise emissions based on DIN 45635, Part 61 following the substitution process with an acoustic power source



In the table, the sound pressure level LP is specified for a distance of 4 m from the trolley. To calculate the sound pressure level LW, the sound pressure level at any distance may be used.
