Only with festoon cable system and conductor system VKL
|
|

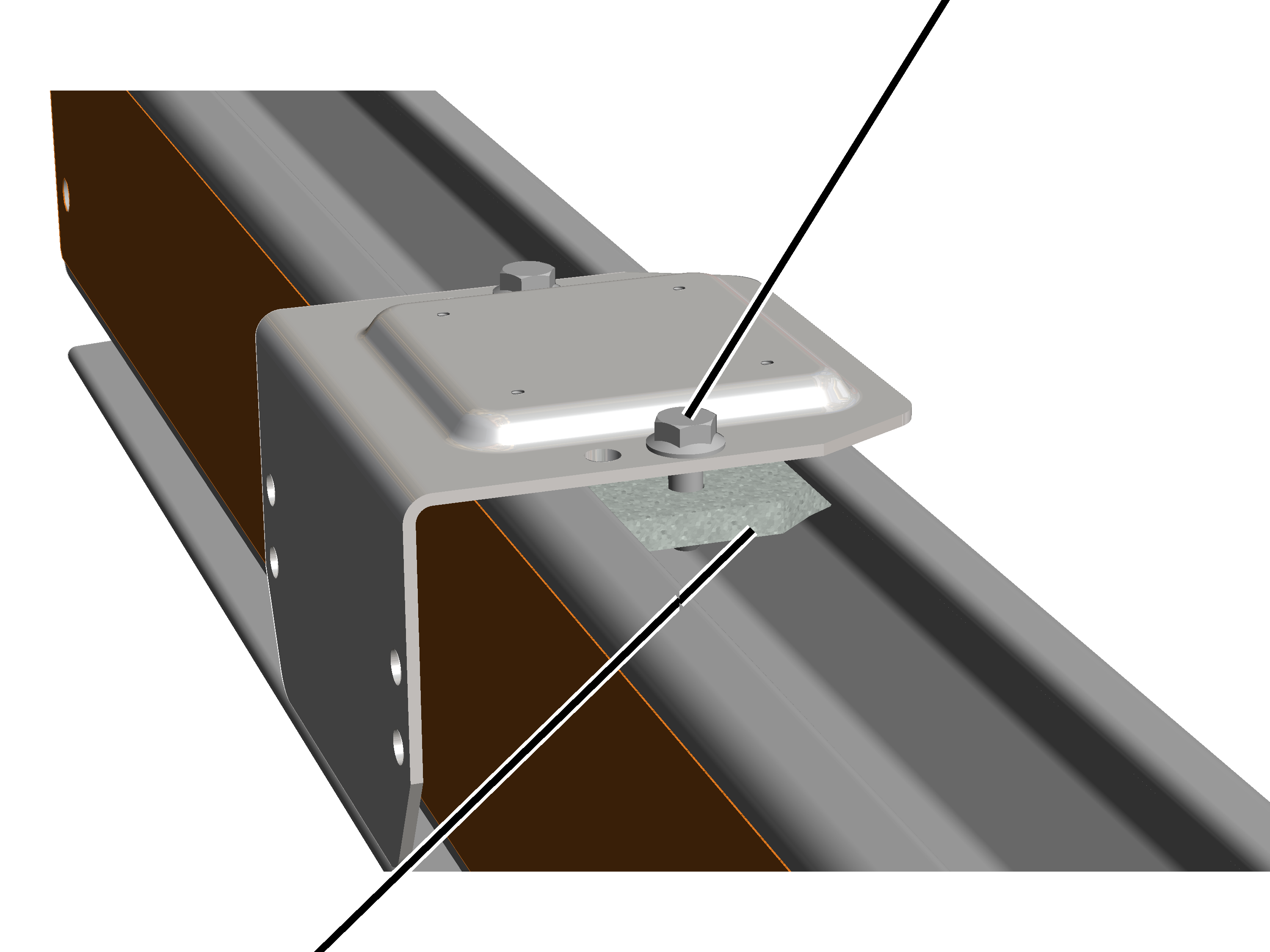

Rib screw M8x25 |
|
| |
|
Head nut |
|
If required: insert rib screw M8x25 (2x) in base plate and screw the
head nut (2x) onto the rib screw from below.
Turn the head nut in the longitudinal direction and lay the base
plate on the profile head from above.
● The head nut extends into the profile head.
Tighten the rib screws. 25 Nm.
● The head nut turns during fixing in the crosswise direction and is clamped tight in the profile head.
|
|

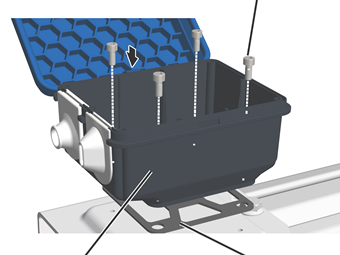

Fillister-head screw M4x10 |
|
| |
|
Connector housing |
Seal |
Stick the self-adhering seal under the connector housing.
Bolt the connector housing onto the base plate with fillister-head
screws M4x10 (4x).
