Where an anti-collision device is to be installed is specified in the planning documents.
The anti-collision device consists of trolleys on which a coupling bar is mounted.
|
|
Where an anti-collision device is to be installed is specified in the planning documents. |

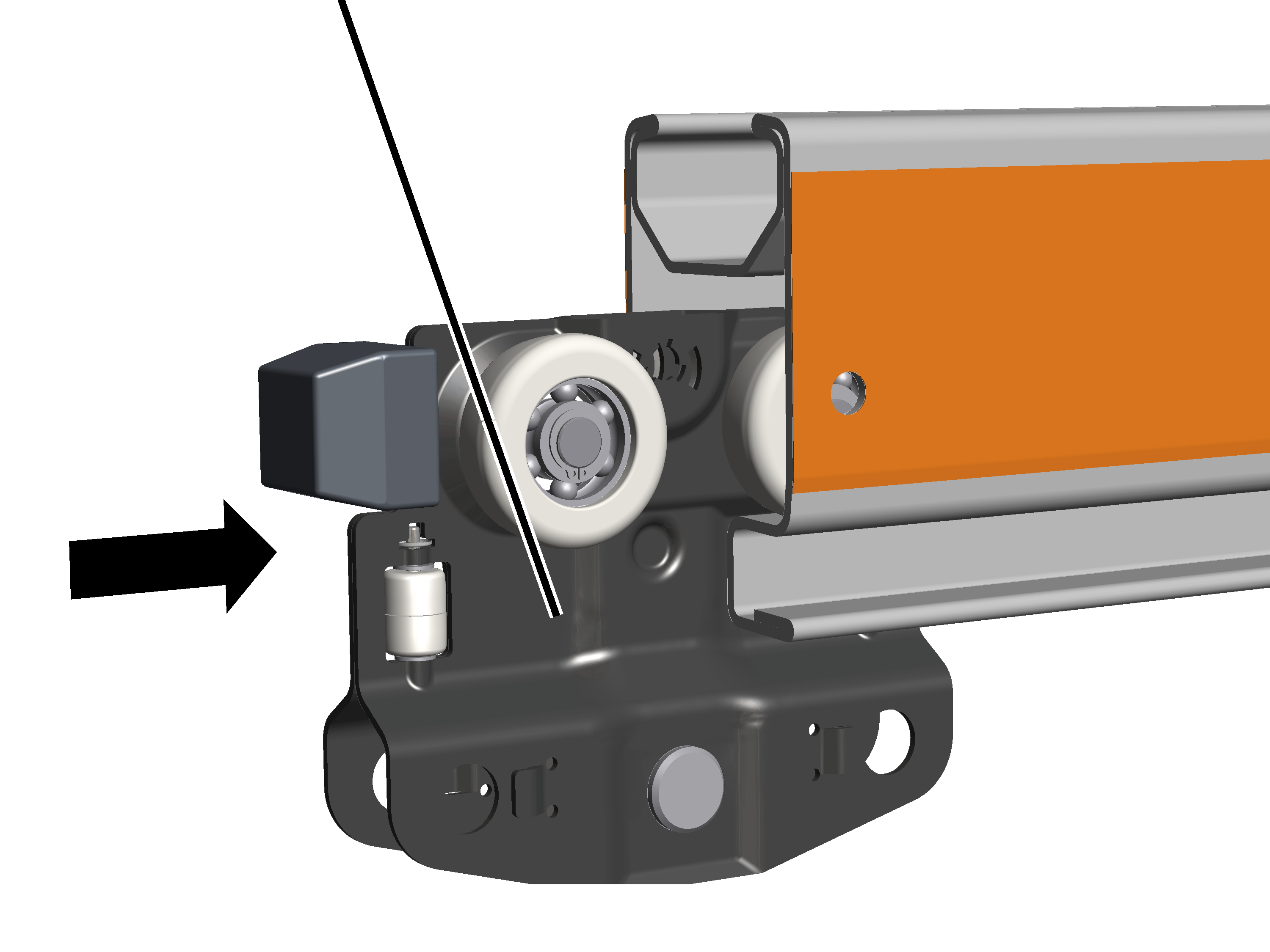

In all HB profile rails and for each anti-collision device:
|
Trolley |
|
|
| |
With an anti-collision device as preceding trolley: push an
additional trolley into each HB profile rail.
With a free-running anti-collision device: insert two additional
trolleys in each HB profile rail.
With an anti-collision device with coupling bar: no additional
trolleys are necessary.
|

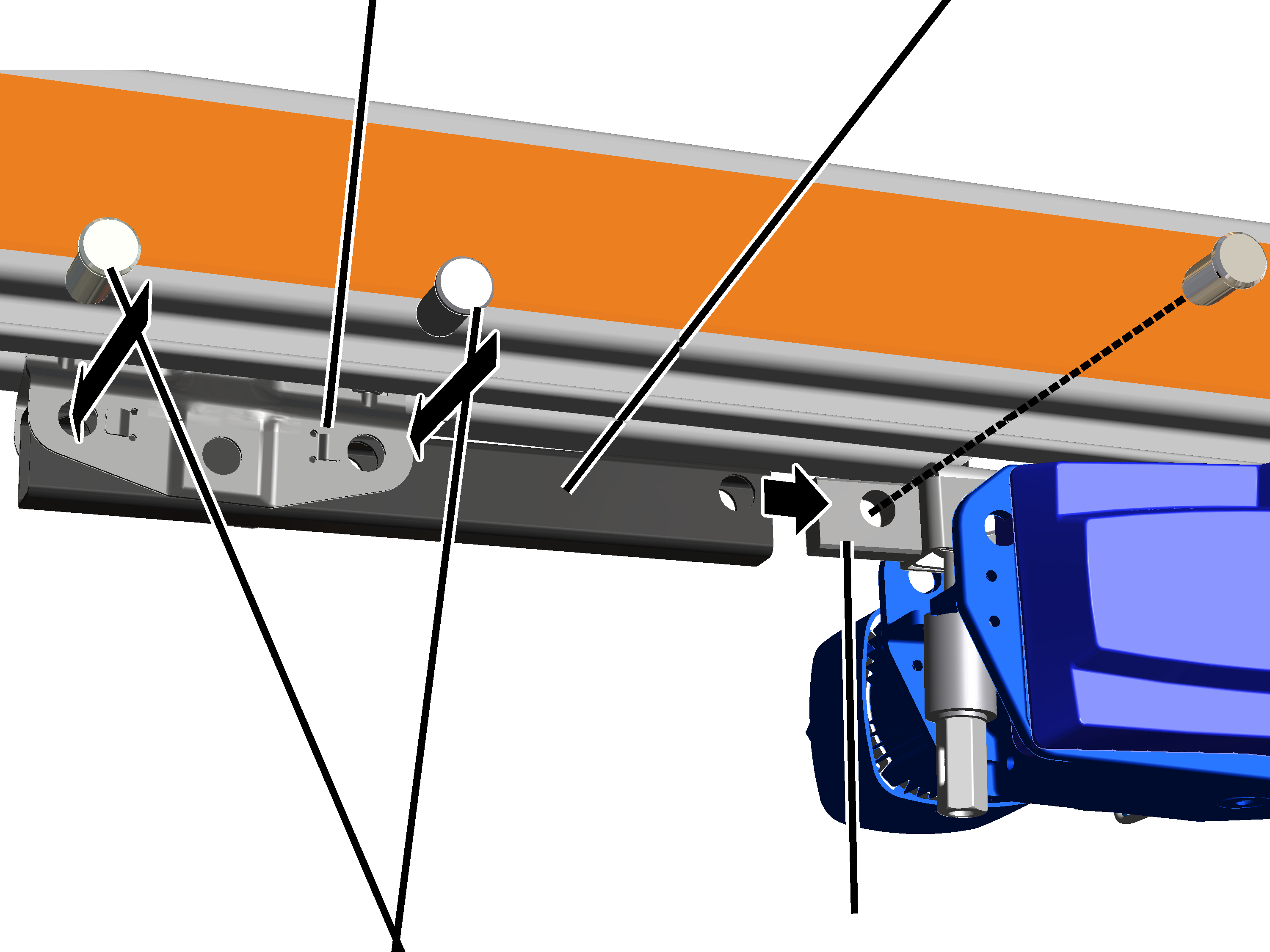

Preceding trolley |
Travel mechanism of crane or trolley |
|
| |
|
Coupling bar |
Bolt (3x) |
On the preceding trolley: push the coupling bar inside the
trolley.
Push bolts (2x) through trolley and coupling bar.
Secure bolts with SL safety clips (2x).
On the travel mechanism of the crane or trolley: insert coupling bar
through the front hole on the travel mechanism.
Push bolt (1x) through the front hole on the trolley and through the
coupling bar.
Secure bolt with SL safety clips (1x).
|

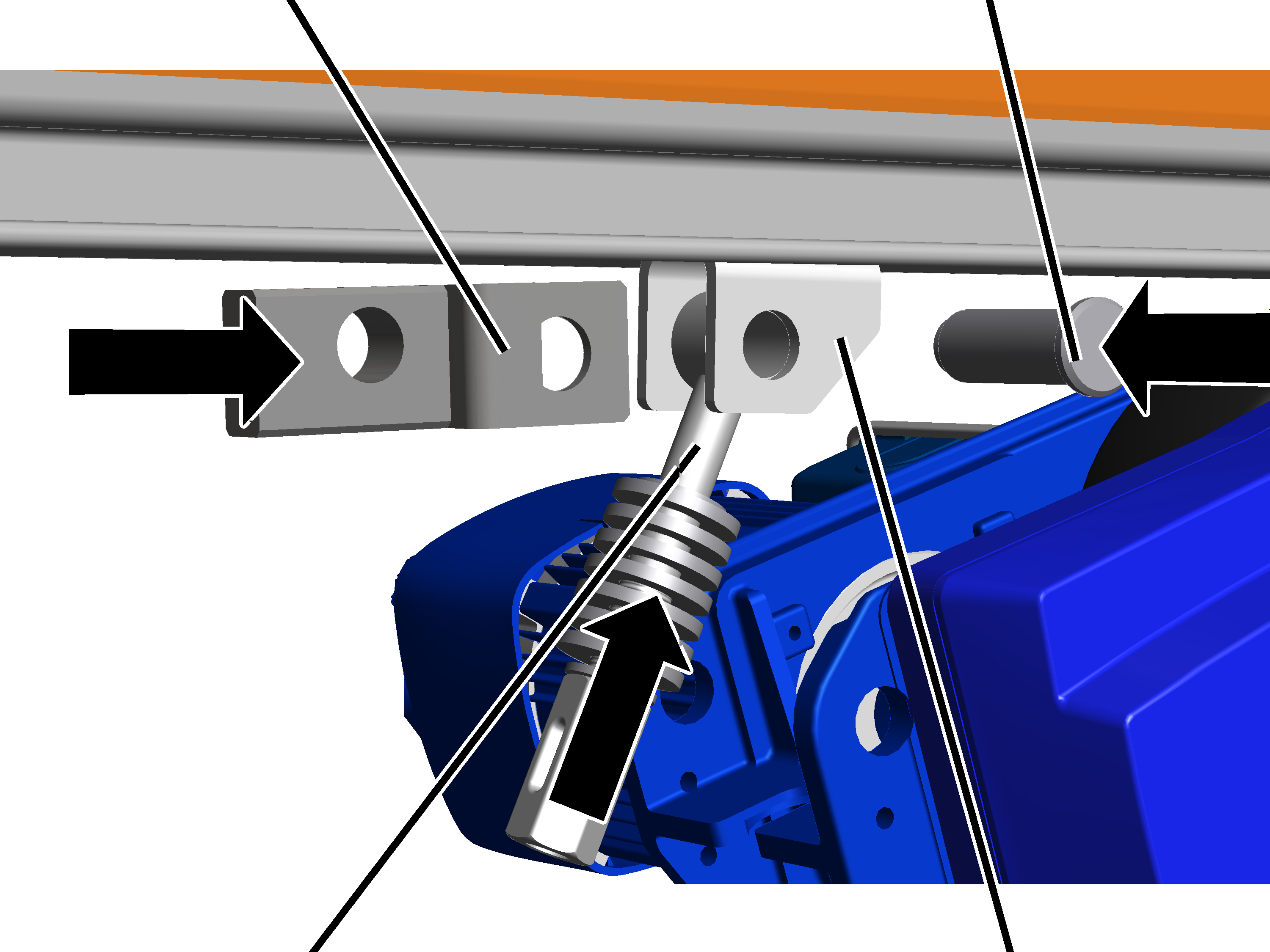

Coupling |
Bolt |
|
| |
|
Eyebolt |
Fork part on HBF trolley |
If not yet already assembled: insert eyebolt between the fork part on
the HBF drive, slide the coupling over the fork part, insert bolt and secure
with the SL safety clip.
Connecting coupling bar with preceding trolley:
|
Preceding trolley |
Coupling bar |
|
| |
|
Bolt |
Coupling |
On the preceding trolley: push the coupling bar inside the
trolley.
Push bolts (2x) through trolley and coupling bar.
Secure bolt with SL safety clips (2x).
On the HBF drive: push the coupling bar over the coupling.
Push the bolt through the coupling rod and coupling.
Secure bolt with SL safety clip.

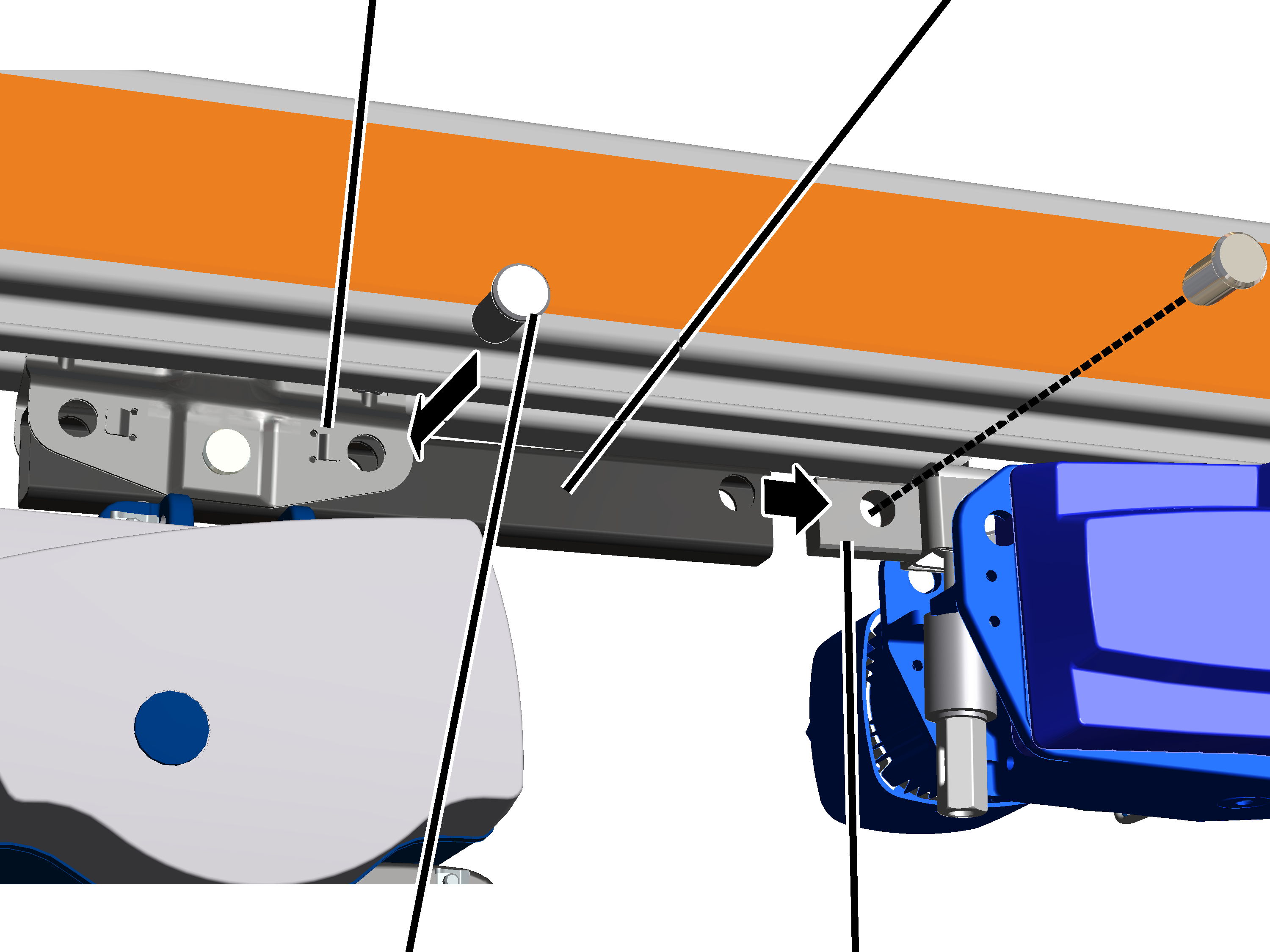

Connecting coupling bar with other HB crane trolley or hoist trolley:
|
Hoist trolley (or crane trolley) |
Coupling bar |
|
| |
|
Bolt |
Coupling |
On the crane trolley or hoist trolley: push the coupling bar inside
the trolley.
Push bolts (1x) through trolley and coupling bar.
Secure bolt with SL safety clips (1x).
On the HBF drive: push the coupling bar over the coupling.
Push the bolt through the coupling rod and coupling.
Secure bolt with SL safety clip.
|

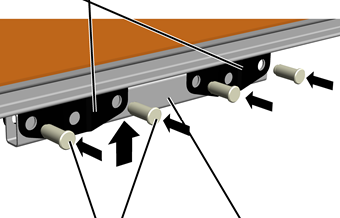

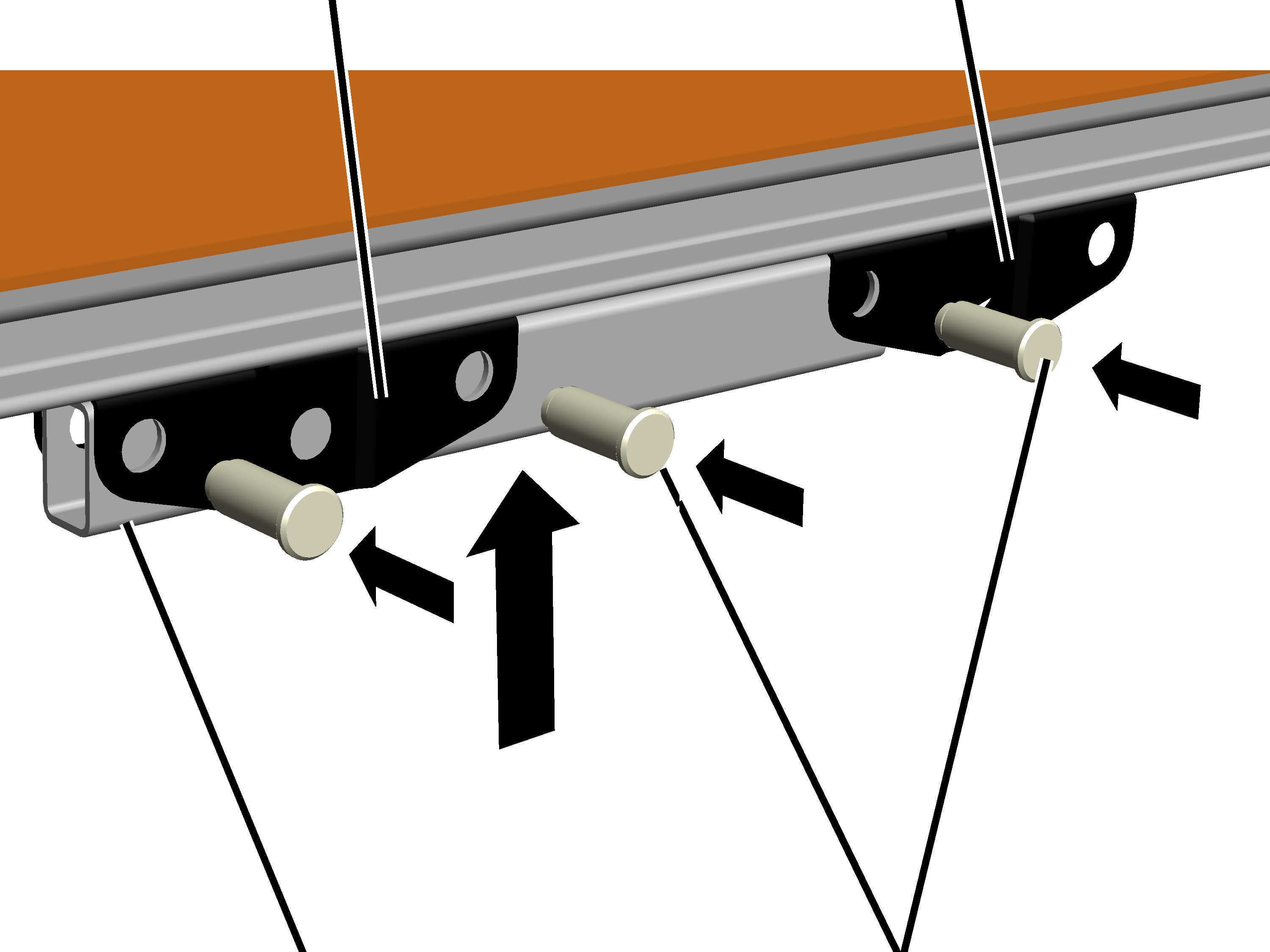

Trolleys for anti-collision device |
|
|
| |
|
Bolts (4x) |
Coupling bar |
Push the coupling bar between the trolleys.
Push bolts (4x) through trolley and coupling bar.
Secure bolts with SL safety clips (4x).
|
|
The figures show the assembly of the coupling bar between the two single-rail trolleys ESK. The assembly between two cranes EHB or ZHB, or between double-rail trolleys, does not differ significantly. |
|
Bolt |
|
|
| |
|
Coupling bar |
|
Push the coupling bar between the trolleys.
Push bolts (2x) through trolley and coupling bar.
Secure bolts with SL safety clips (2x).
