Installing an additional ceiling-mounted bracket 2LP/M16 (for stiffener or V-suspension)



Only with normal stiffener, inclined stiffener and V-suspension



This section only applies if an additional stiffener will be used (normal stiffener or inclined stiffener), or if a V-suspension will be used.

Planungsunterlagen

Whether an additional stiffener or V-suspension is to be used is specified in the planning documents.

The specified dimensions, positions and clearances must be followed exactly.



Installing an additional ceiling-mounted bracket 2LP/M16

Additional ceiling-mounted bracket 2LP/M16

(for stiffener or V-suspension)

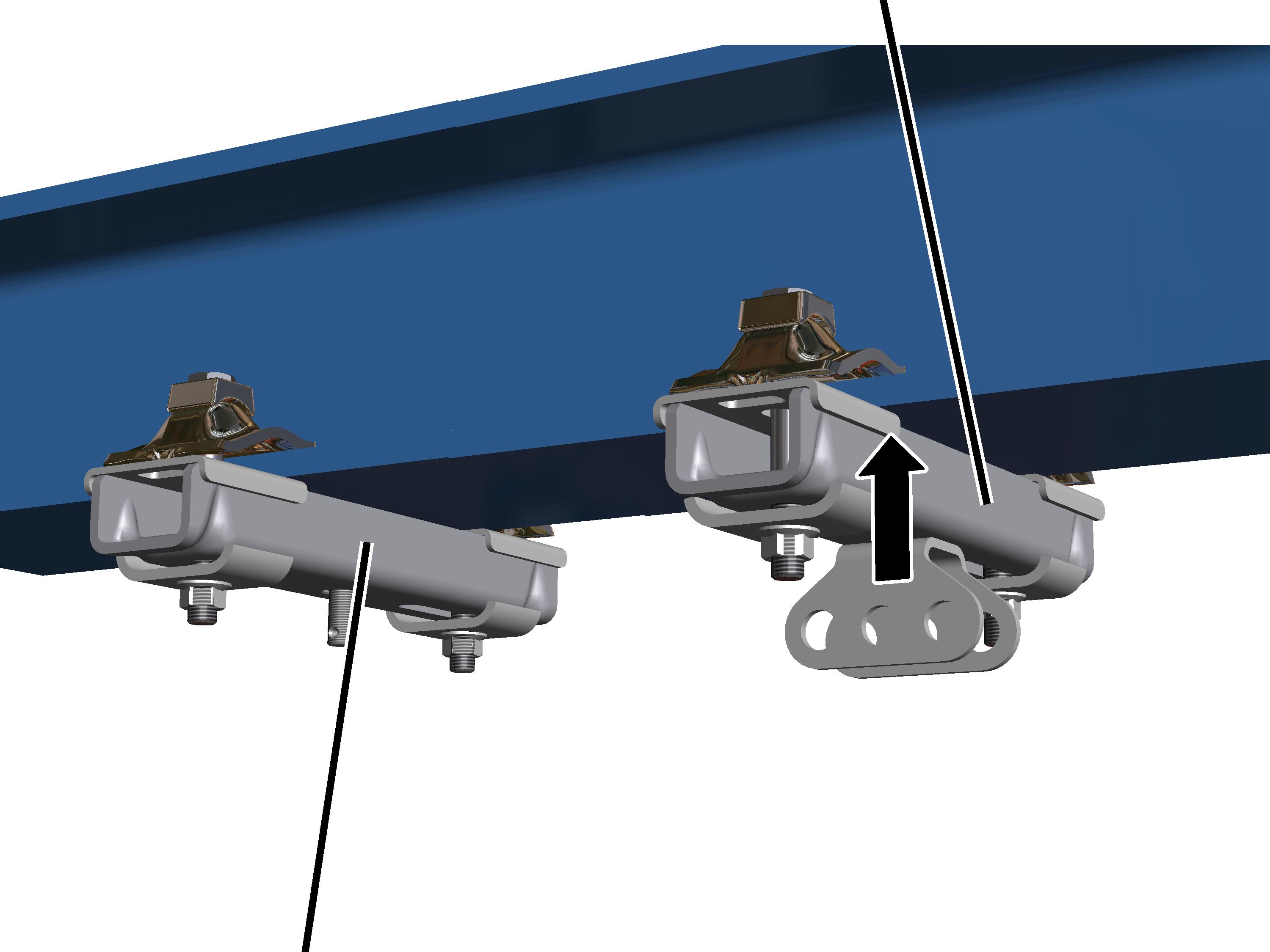

Already installed ceiling-mounted bracket 2LP/M16 (with threaded rod or articulated girder)



*  Install the additional ceiling-mounted bracket with articulated girder next to the already existing ceiling-mounted bracket.



Verweis

This product manual describes ceiling-mounted brackets 2LP/M16 or M20 A, B and C. To install the ceiling-mounted bracket 4LP/M20 on the supporting structure, see product manual "Installing the ceiling-mounted bracket 4LP/M20 and craneway suspension M20".





Planungsunterlagen

Refer to the planning documents for the points on the supporting structure intended for a stiffener or V-suspension.

Planungsunterlagen

The spacing at which the additional ceiling-mounted bracket should be mounted is specified in the planning documents.

The specified dimensions, positions and clearances must be followed exactly.
