The figures show the inspection on a 2LP ceiling-mounted bracket. Inspection on a 4LP ceiling-mounted bracket is the same.
|
|
The figures show the inspection on a 2LP ceiling-mounted bracket. Inspection on a 4LP ceiling-mounted bracket is the same. |
On all craneway suspensions:
|
| |
|

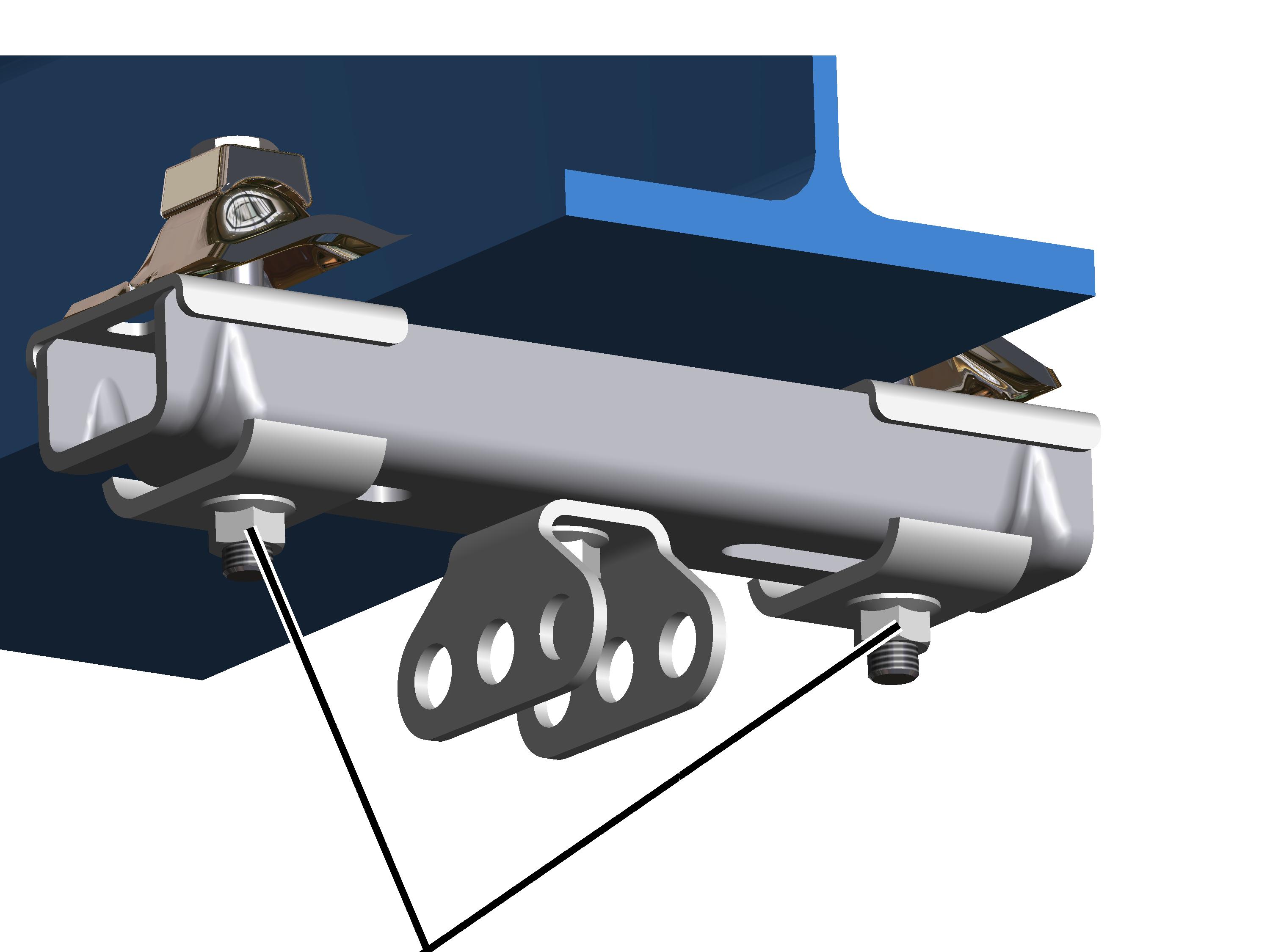

Rib nuts on the ceiling-mounted bracket |
|
Inspect the rib screws or rib nuts on the ceiling-mounted bracket.
They must be tightened with the correct torque.
If the ceiling-mounted brackets are not properly tightened: tighten
the rib screws or rib nuts to the correct torque.
On all craneway suspensions:
|
| |
|
|

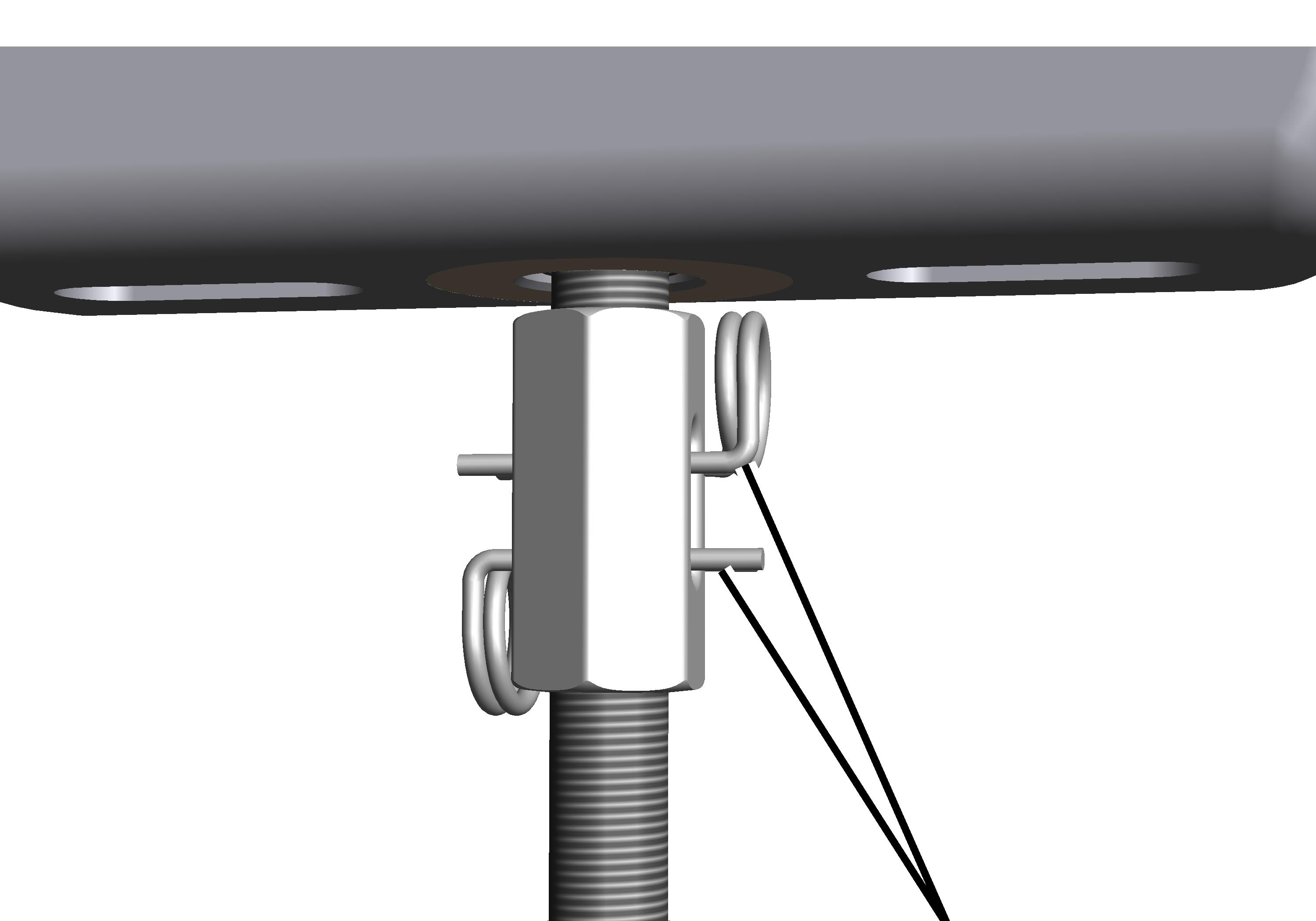

Spring cotter |
Inspect the spring cotters. They must be present and fully
inserted.
If a spring cotter is missing: insert a new spring cotter.
If a spring cotter is not correctly inserted: fully insert the spring
cotter.
