The figures show the installation of the HB6, HB11 and HB22 trolleys on a steel HB profile rail of the size HB150S. The work step for larger or smaller HB profile rails and for aluminium profile rails does not differ significantly from this.
|
|
The figures show the installation of the HB6, HB11 and HB22 trolleys on a steel HB profile rail of the size HB150S. The work step for larger or smaller HB profile rails and for aluminium profile rails does not differ significantly from this. |
|
Trolley |
|
|
| |

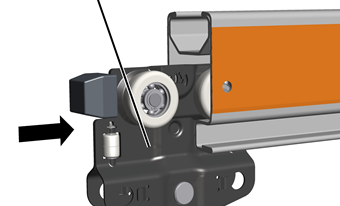

Slide a trolley HB5 / HB6 into the HB profile rail.
With trolley HB10 / HB11: slide two trolleys (prefitted with cross
bar HB10/HB11 if appropriate) into the HB profile rail.
With trolley HB22: slide four trolleys (prefitted with cross bar HB22
if appropriate) into the HB profile rail.
A cross bar HB10/HB11 is now fitted to the trolleys.
|
Trolleys |
|
|
| |
|
Cross bar HB10/HB11 |
SL safety clip |

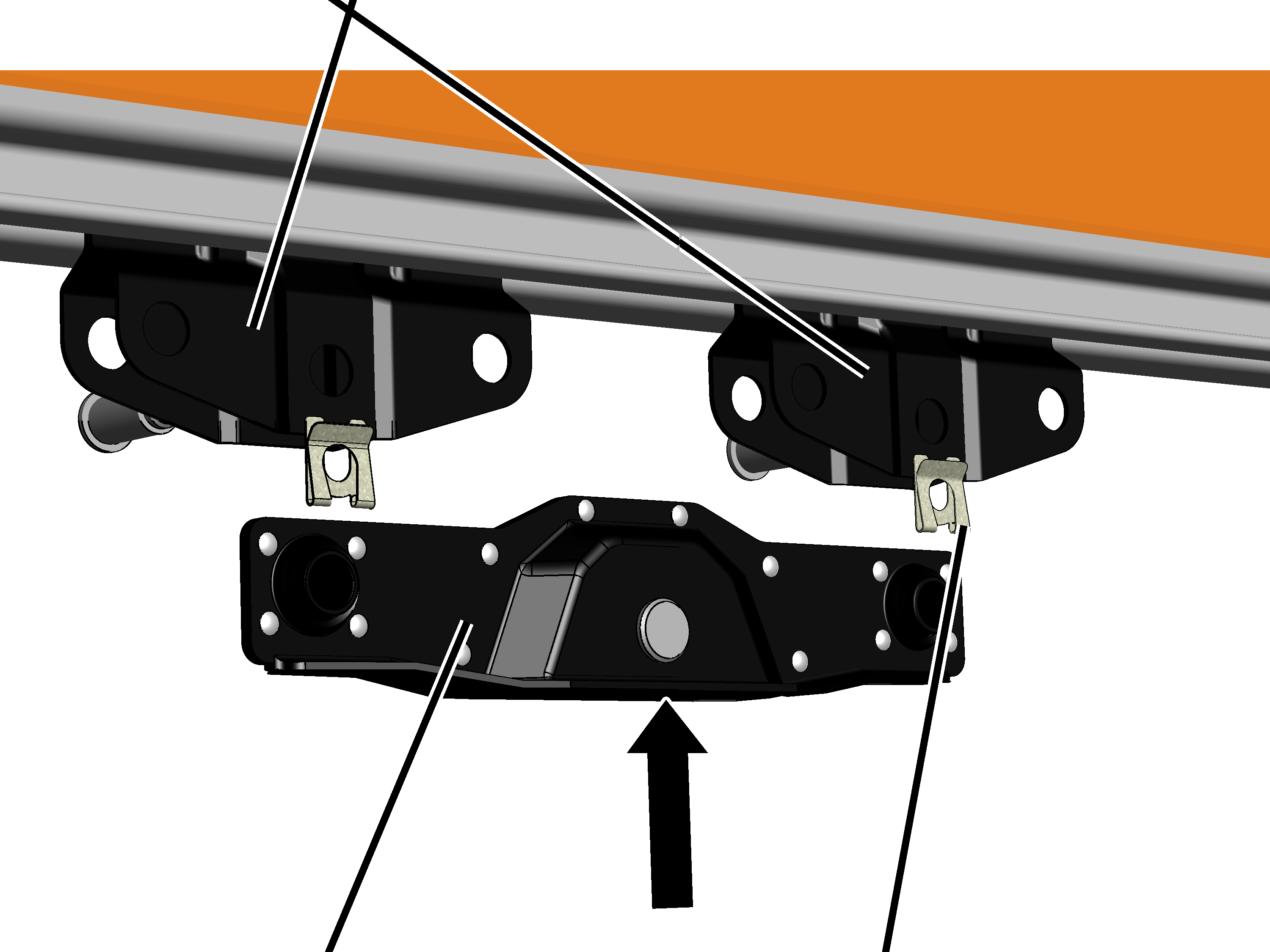

Push the cross bar HB10/HB11 into the two trolleys HB6 from
below.
Push the bolts (2x) through the trolleys HB6 and cross bar
HB10/HB11.
Secure the bolts with the SL safety clips (2x).
One cross bar HB10/HB11 each is now fitted to the trolleys. Then one cross bar HB22 is fitted to these.
|
Trolley |
|
|
| |
|
Cross bar HB10/HB11 |
SL safety clip |

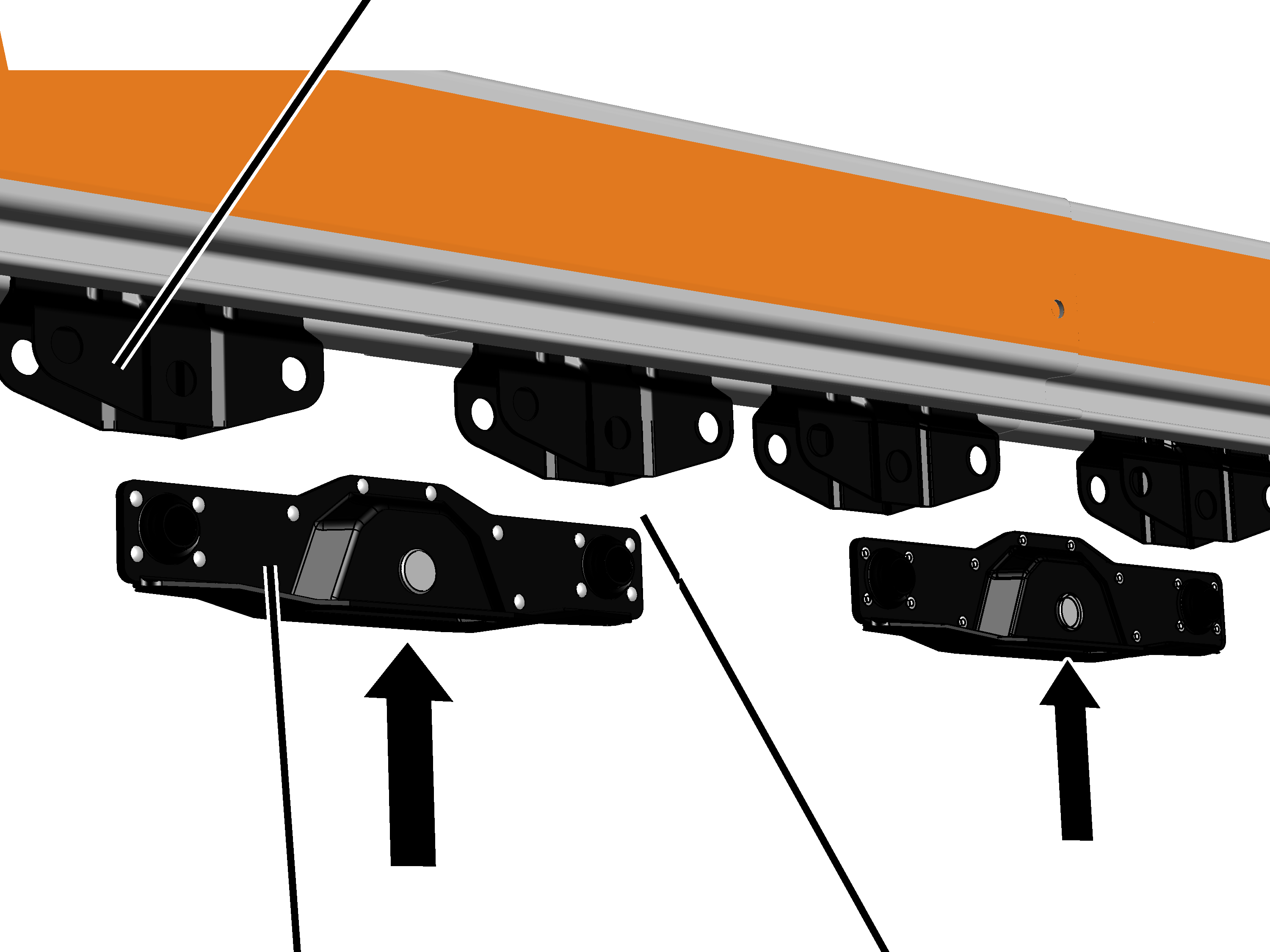

Push the cross bar HB10/HB11 (2x) into the trolleys HB6 from
below.
Push the bolts (4x) through the trolleys HB6 and cross bar
HB10/HB11.
Secure the bolts with the SL safety clips (4x).
|
Cross bar HB10/HB11 |
|
|
| |
|
Cross bar HB22 |
|

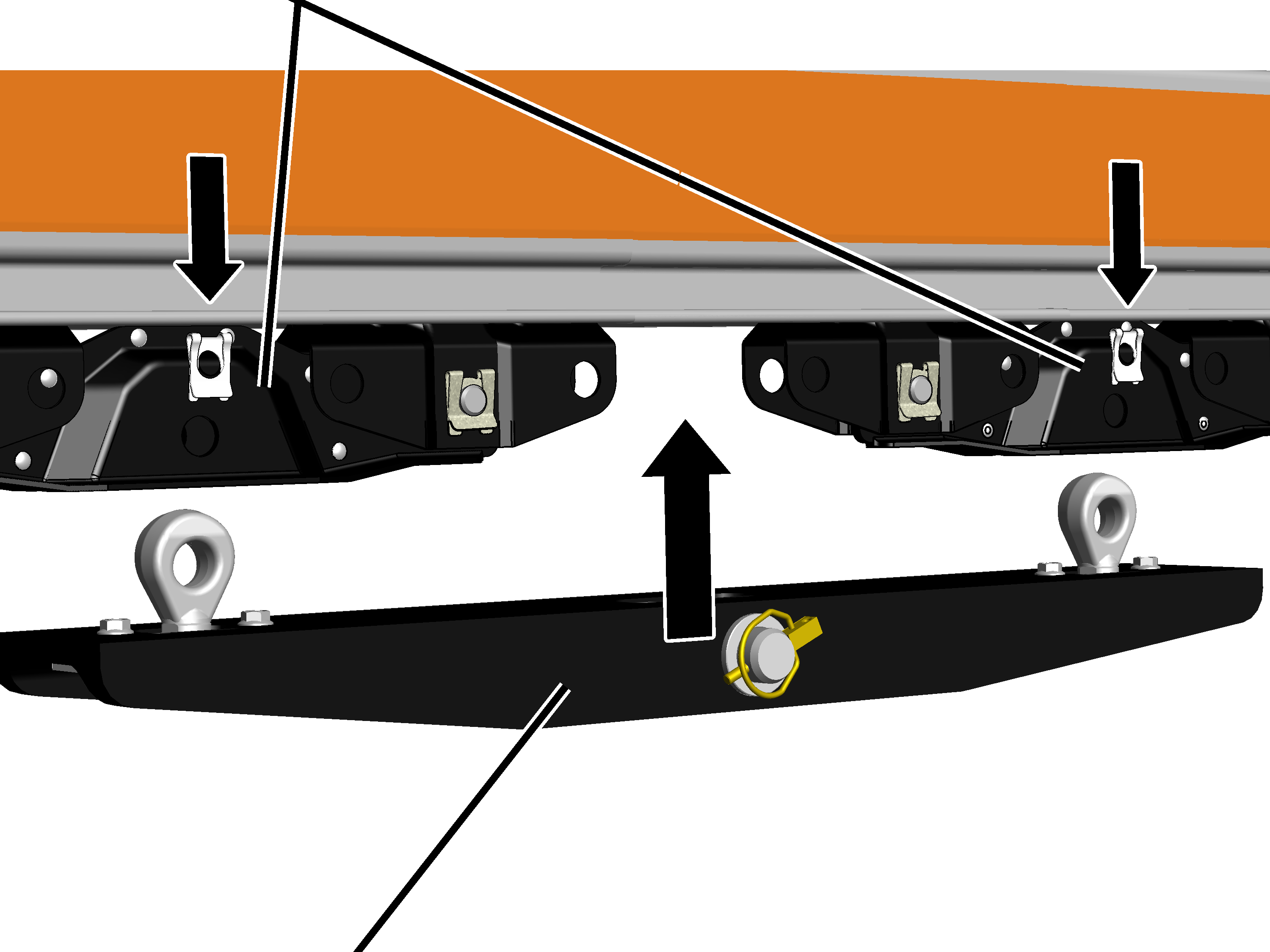

Push cross bar HB22 into the cross bar HB10/HB11 from below.
Push the bolts (2x) through the cross bar HB10/HB11 and the eyebolts
of the cross bar HB22.
Secure bolt with SL safety clip.
Further installation of an HB crane or trolley is described in the corresponding product manual.
