Craneway suspension M16: Installing a short suspension



The tension nuts from which the crane track will later be directly hung are now fitted on the installed ceiling-mounted bracket.



Verweis

This product manual describes the installation of an M16 suspension. To install an M20 suspension, see product manual "Installing the ceiling-mounted bracket 4LP/M20 and craneway suspension M20".



The short suspension is used for especially short clearances between ceiling-mounted bracket and crane track.

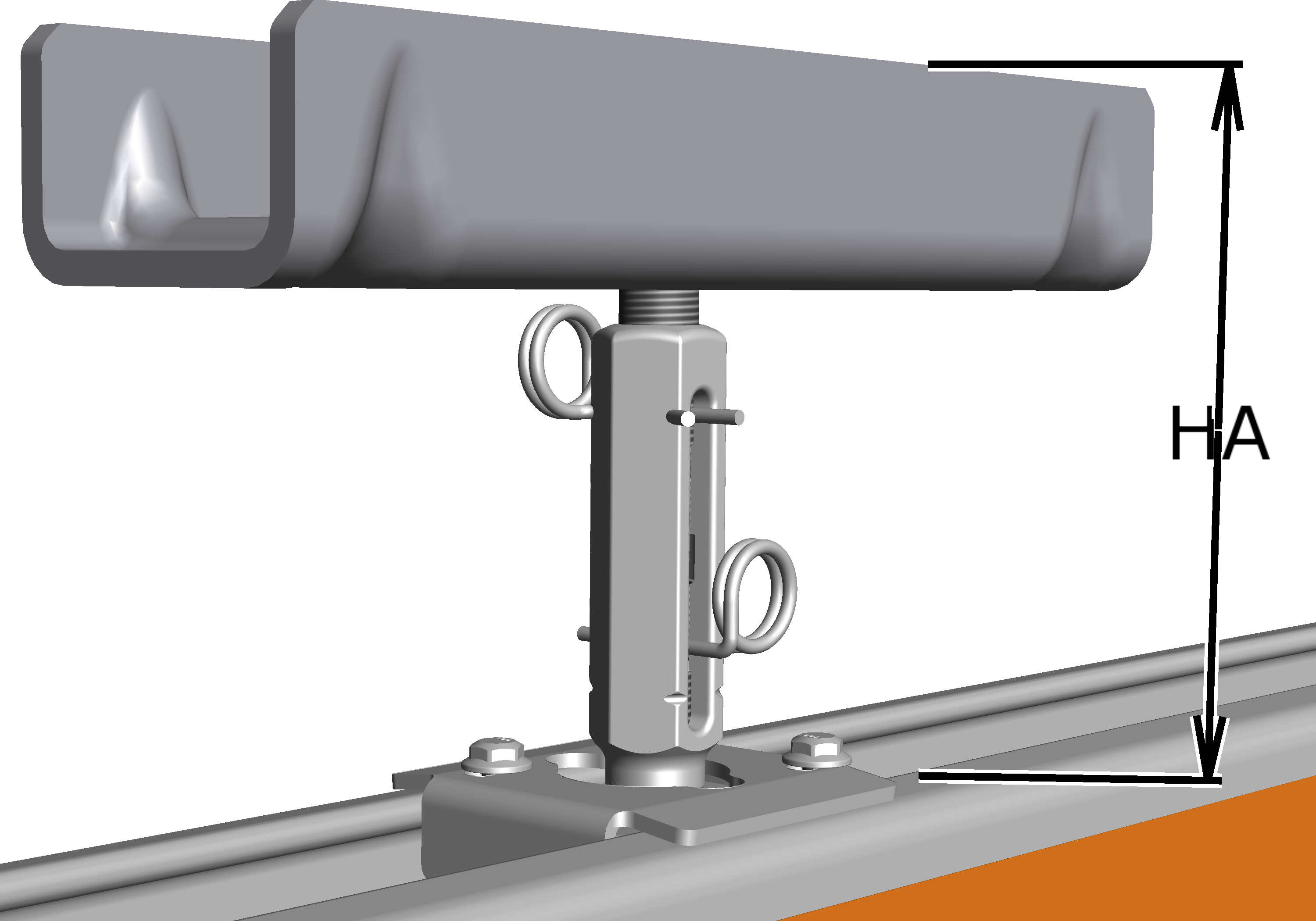

Overview of short suspension XS and S:

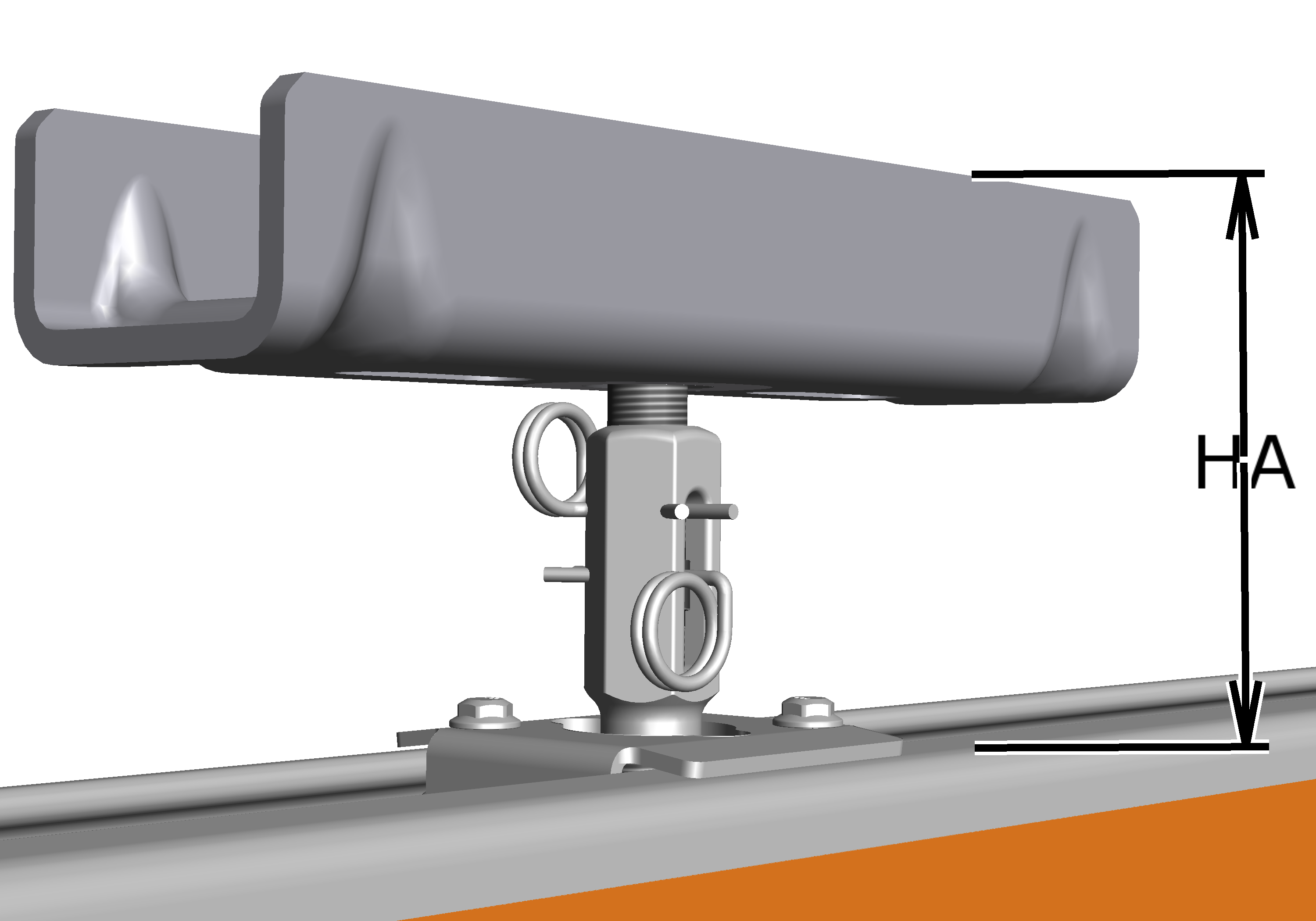

Overview of short suspension M and L:





Size

HA with short suspension XS

HA with short suspension S

HA with short suspension M

HA with short suspension L

HB110

105 to 125 mm

125 to 145 mm

135 to 175 mm

155 to 195 mm

HB150

102 to 124 mm

122 to 144 mm

132 to 174 mm

142 to 194 mm

HB190

102 to 124 mm

122 to 144 mm

132 to 174 mm

142 to 194 mm

HB240

102 to 124 mm

122 to 144 mm

132 to 174 mm

142 to 194 mm





Only for short suspension and ceiling-mounted brackets 2LP/M16 or M20 with flange clamps over a profile joint

This section only applies if a short suspension is mounted on a ceiling-mounted bracket 2LP/M16 or M20 with flange clamps and two profile rail sections are connected exactly in the area of the ceiling-mounted bracket (profile joint).



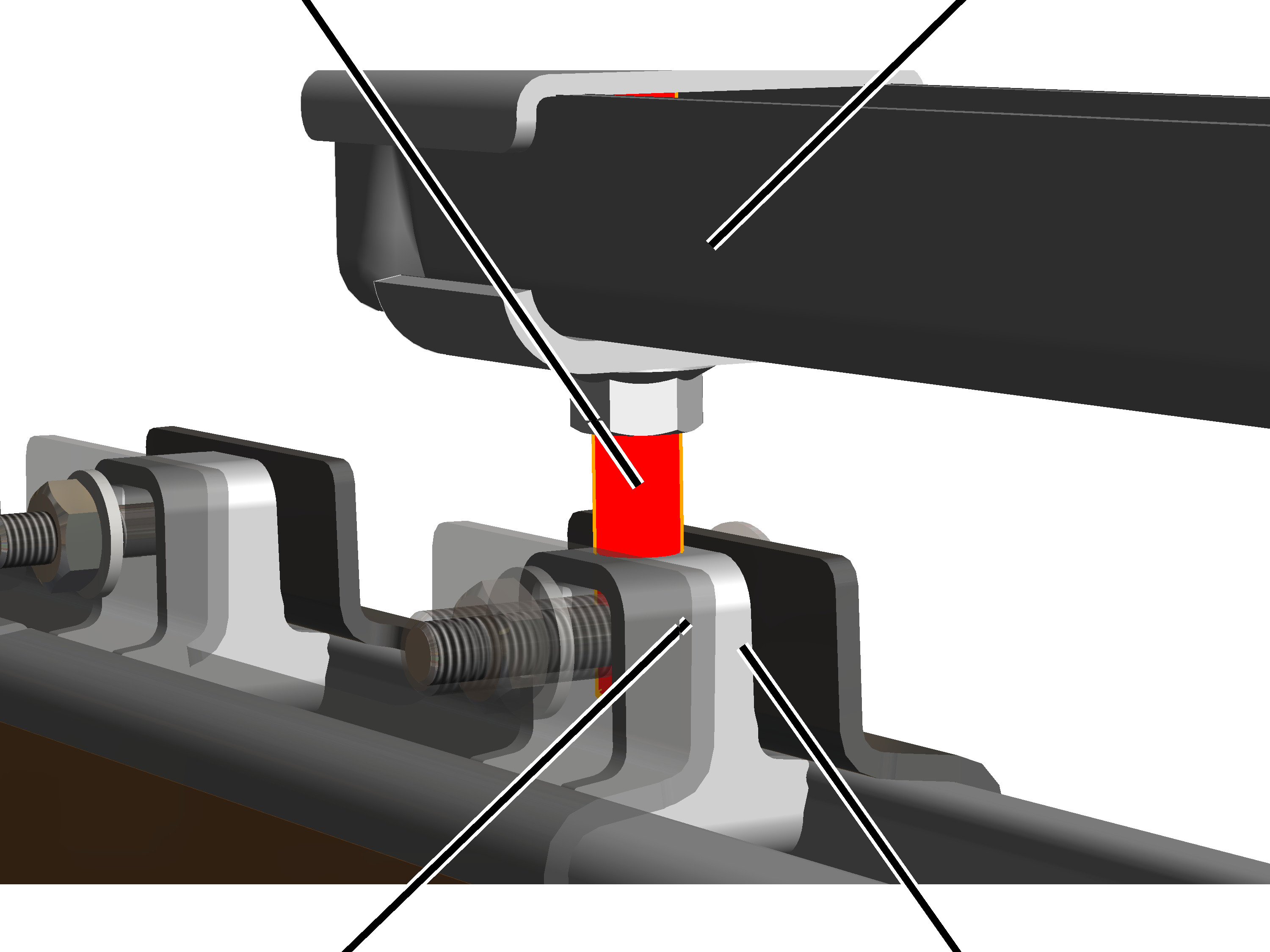

If the thread of the ceiling-mounted bracket collides with components on the profile joint (e.g. clamping plate bracket, spacer part between clamping plates):

Thread of ceiling-mounted bracket

Ceiling-mounted bracket

Clamping plate brackets

Spacer part

*  Shorten the thread of the ceiling-mounted bracket

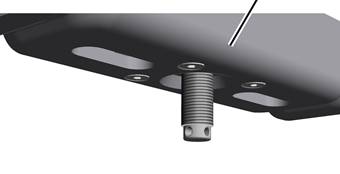

Preparing the ceiling-mounted bracket

On the ceiling-mounted bracket:



Ceiling-mounted bracket

●   There are no further preparations required for the ceiling-mounted bracket. The assembly of the tension nuts is described in the next sections.



The crane track will later be installed on the ceiling-mounted bracket.
