This product manual describes the installation of an M16 suspension. To install an M20 suspension, see product manual "Installing the ceiling-mounted bracket 4LP/M20 and craneway suspension M20".
|
|
This product manual describes the installation of an M16 suspension. To install an M20 suspension, see product manual "Installing the ceiling-mounted bracket 4LP/M20 and craneway suspension M20". |
|
|
|

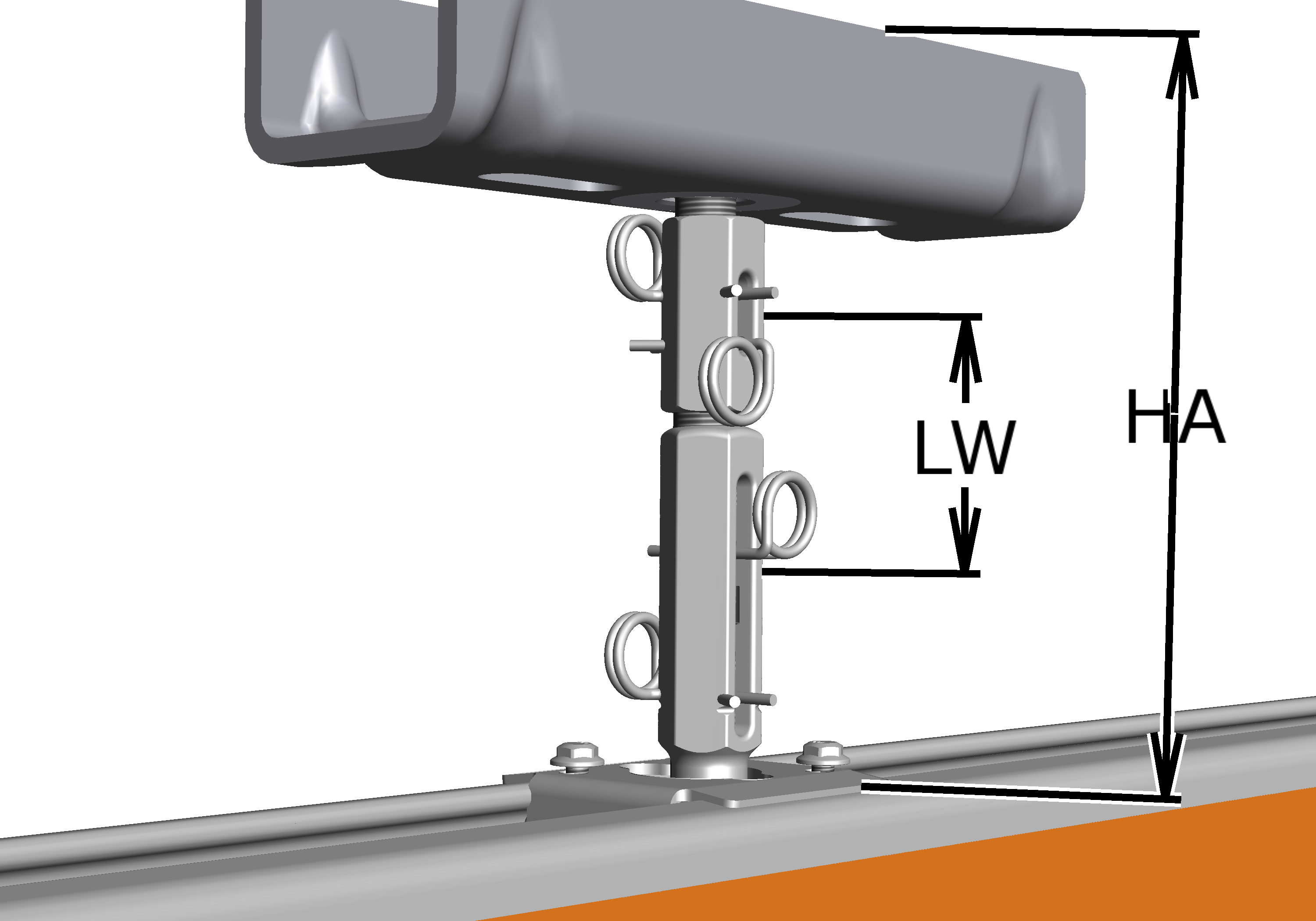

Size |
HA |
|
HB110 |
HA = LW ± 25 mm |
|
HB150 |
HA = LW ± 28 mm |
|
HB190 |
HA = LW ± 28 mm |
|
HB240 |
HA = LW ± 28 mm |

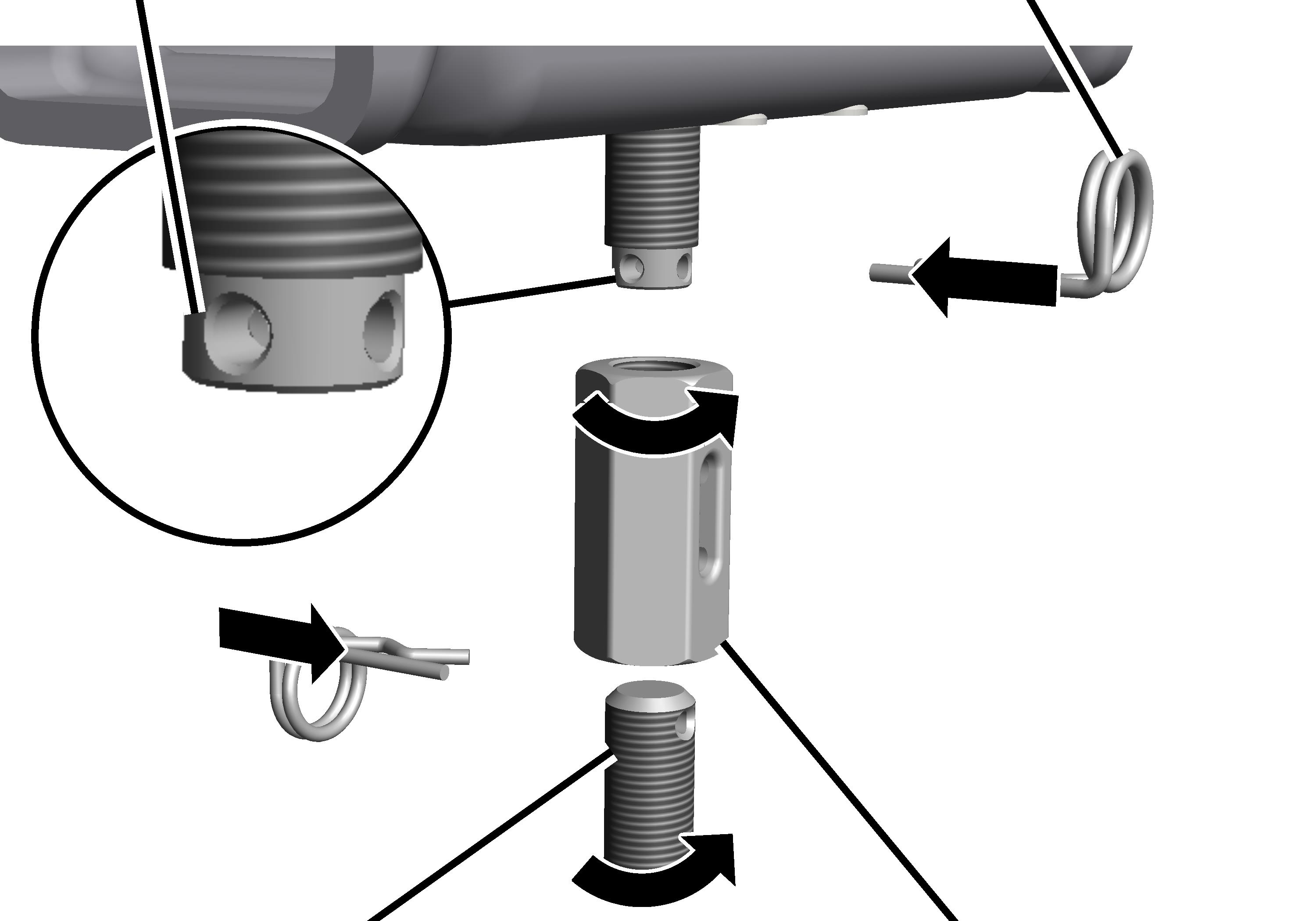

On the ceiling-mounted bracket:
|
Cross-drilled hole |
Spring cotter |
|
| |
|
Threaded rod |
Coupling |
Screw the coupling (both sides with
right-hand thread) on the ceiling-mounted bracket.
Screw the shortened or lengthened
threaded rods in the coupling.
Turn the coupling so that the
boreholes are visible.
The threaded rod has a cross-drilled hole on the ceiling-mounted bracket. Turn the coupling in such a way that the hole facing across the later HB crane runway is used.
Insert spring cotters (2x).
The HB crane runway will later be installed on the lower end of the threaded rod.
