Craneway suspension M16: installing an inclined suspension

The threaded rods from which the crane track will later be hung are now fitted on the installed ceiling-mounted bracket with articulated girder.

Verweis

This product manual describes the installation of an M16 suspension. To install an M20 suspension, see product manual "Installing the ceiling-mounted bracket 4LP/M20 and craneway suspension M20".

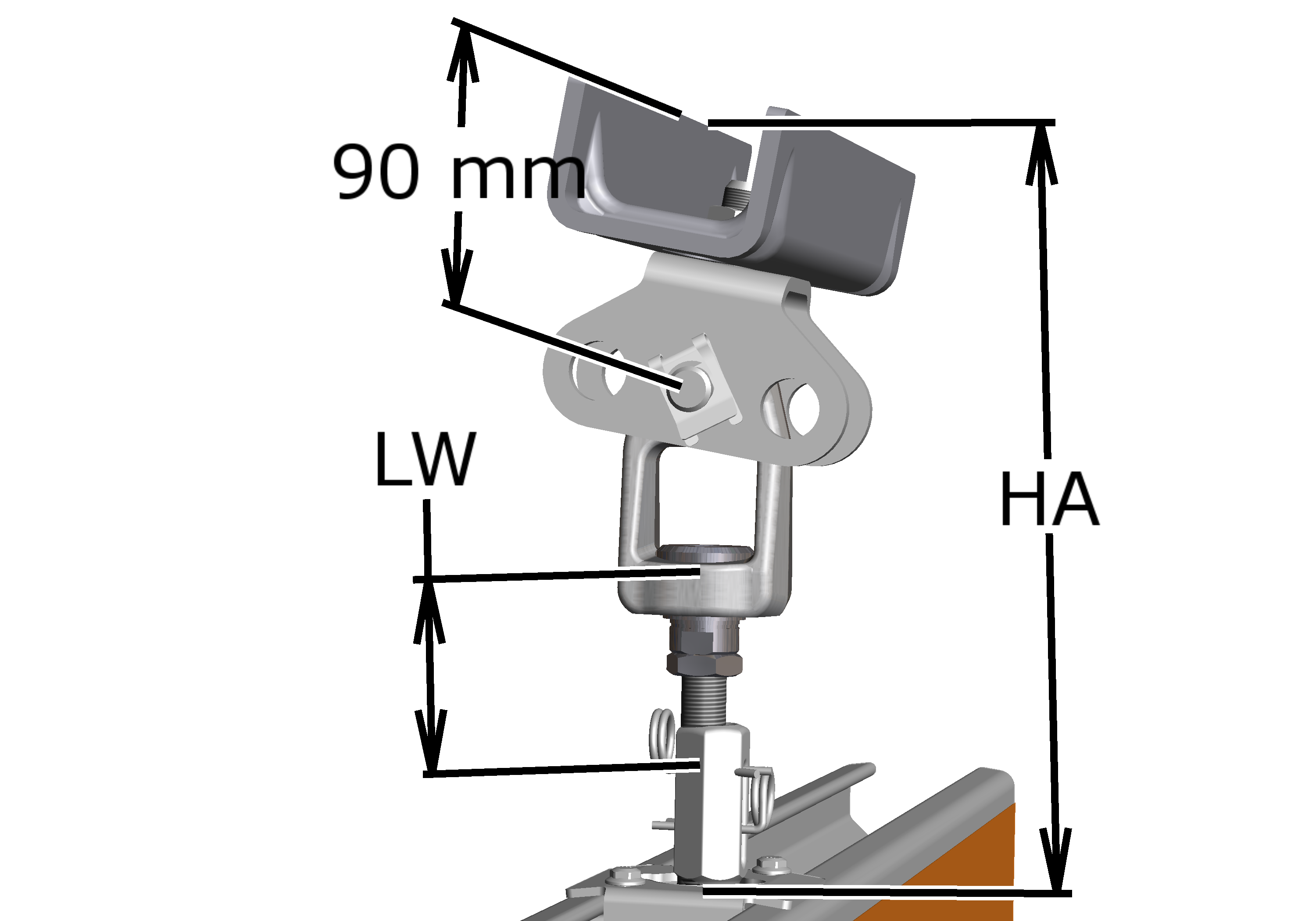

Overview:

Size	HA with LW 80 mm	HA with LW from 100 mm
HB110	HA = 190 + LW ± 10 mm	HA = 190 + LW ± 20 mm
HB150	HA = 190 + LW ± 10 mm	HA = 190 + LW ± 20 mm
HB190	HA = 190 + LW ± 10 mm	HA = 190 + LW ± 20 mm
HB240	HA = 190 + LW ± 10 mm	HA = 190 + LW ± 20 mm

Preparing the threaded rod

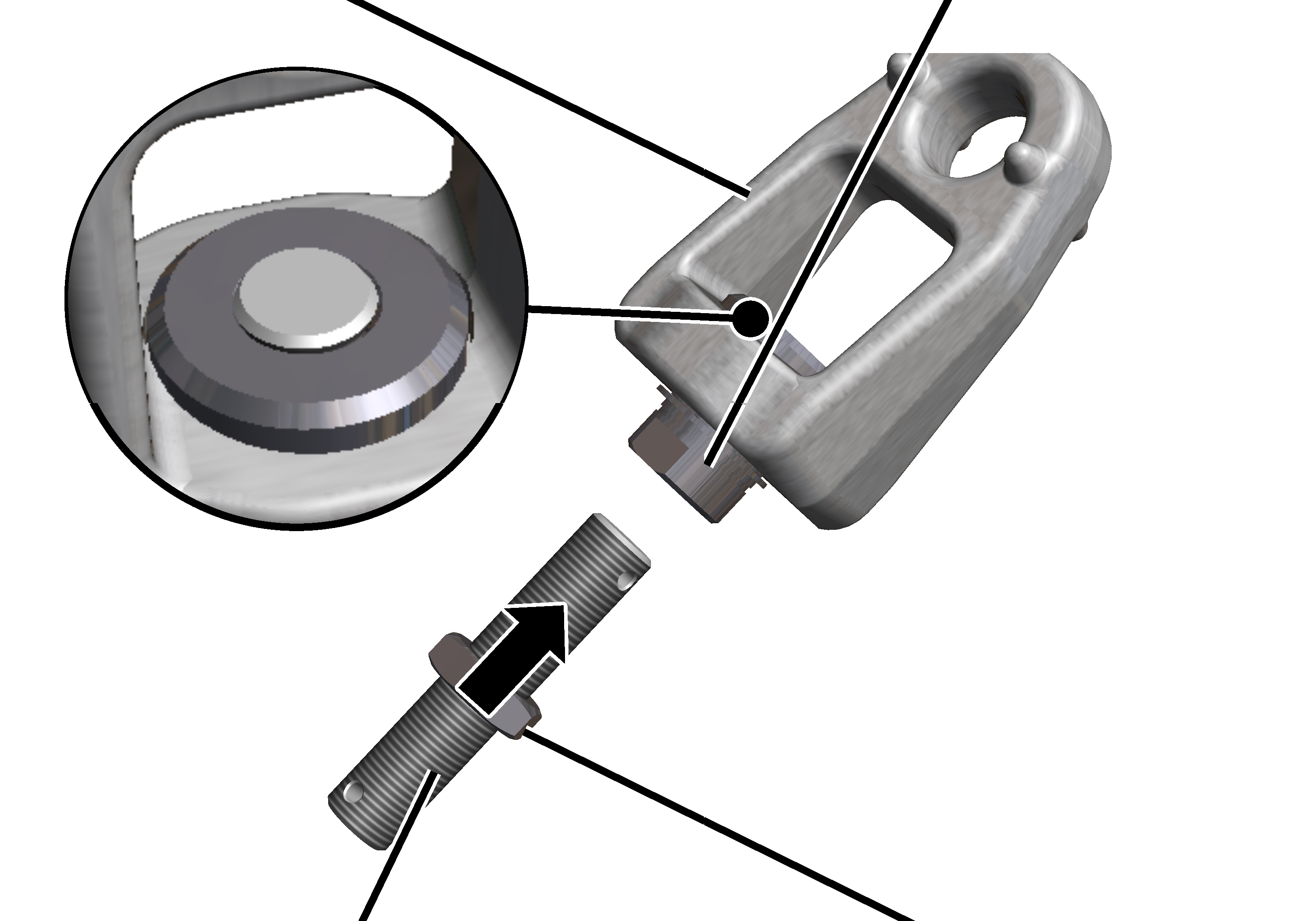

On upper end of the threaded rod:

Clamping joint	Tension nut

Threaded rod	Hexagonal nut

Screw the M16x1.5 hexagonal nuts (2x) onto the shortened or lengthened threaded rod.

Screw the threaded rod into the tension nut until the end of the threaded rod is flush with the tension nut on the inside (see enlarged section of the illustration)

Lock with hexagonal nut.

The HB crane runway will later be installed on the lower end of the threaded rod.

Fastening the threaded rod

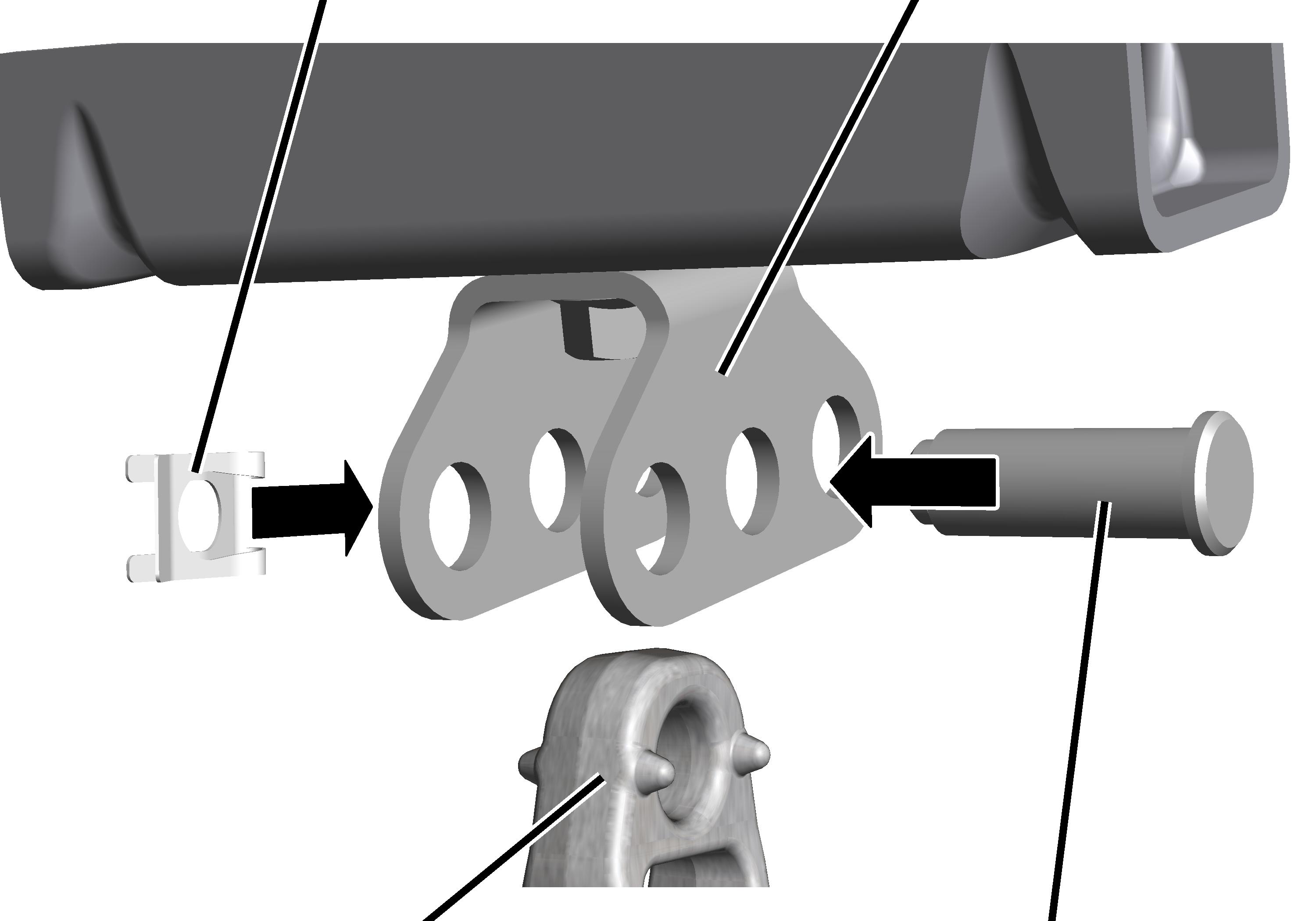

On the ceiling-mounted bracket:

SL safety clip	Articulated girder

Clamping joint	Bolt

Insert the clamping joint between the articulated girders on the ceiling-mounted bracket.

Insert bolt through articulated girder and clamping joint.

Secure bolt with SL safety clip.
