Only with HB240
Before installing the crane track on the suspensions, the ABUS manufacturer labels are applied on the profile rails of the crane track. The HB profile rails of the crane girders are provided with a yellow adhesive foil and the load capacity sign and do not receive an ABUS manufacturer label.
|
|
|
|
| |
|

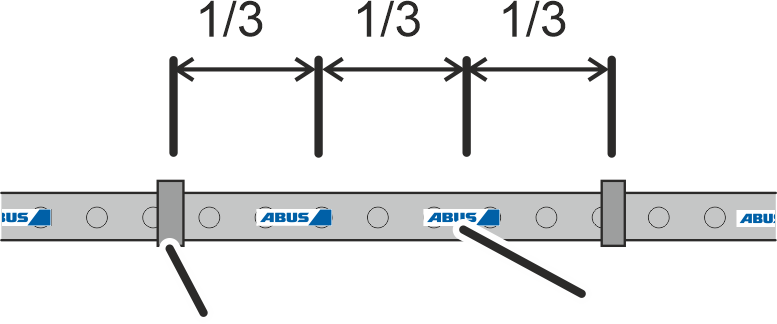

Profile joint |
ABUS manufacturer label |
On each profile rail section two ABUS manufacturer labels are
applied.
Space the ABUS manufacturer labels at 1/3 of the length of the
profile rail section.
Depending on the on-site conditions in the building (e.g. length of
the entire crane track, visibility of the profile rail sections, length of
sections), the exact position of the ABUS manufacturer labels can be optimised
individually.
|
|

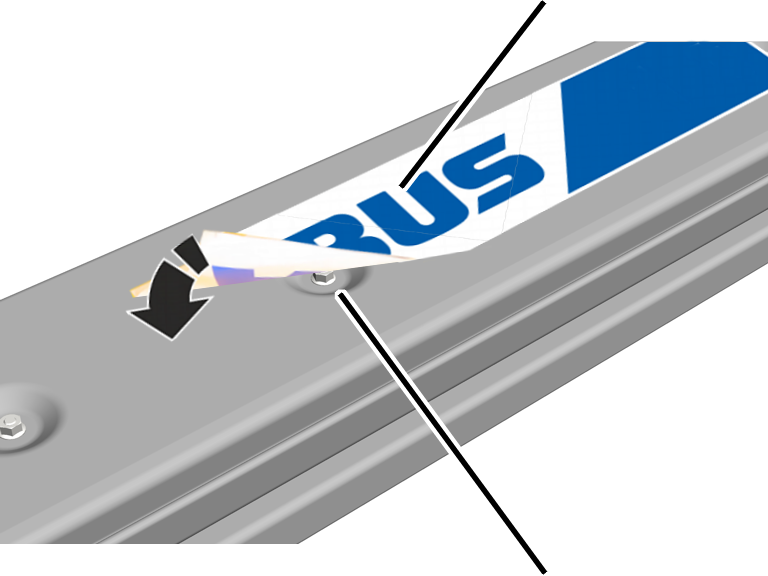

ABUS manufacturer label |
|
| |
|
|
Bead |
Pull off the protective foil and adhere the ABUS manufacturer label
horizontally on the HB profile rail.
The beads in the HB profile rail can be covered over when doing this. Each ABUS manufacturer label covers two beads.
