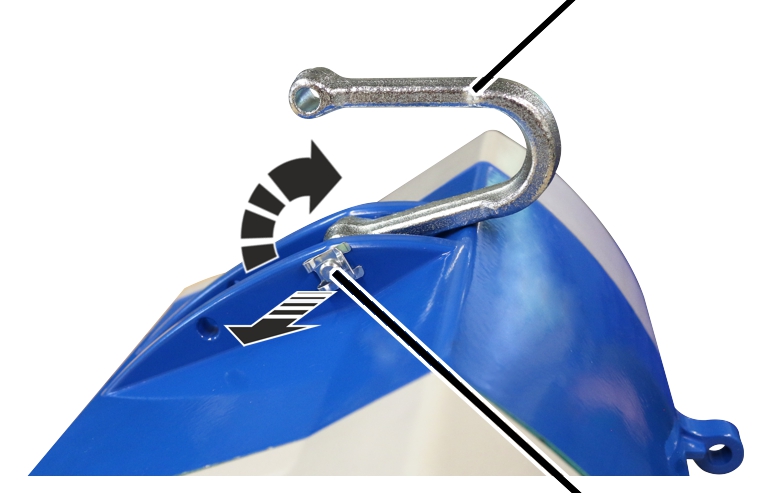

Suspension bracket
Bolt
|
|
Suspension bracket |
|
| |
|
|
Bolt |
Detach the SL safety clip from the bolt.
Pull out the bolt.
Fold out the suspension
bracket.
Lift the chain hoist and attach
it under the supporting structure, under the trolley or under the crane.
Fold the suspension bracket over
an appropriate anchorage or the travelling gear bolt of the trolley.
Insert the bolt.
Secure bolt with SL safety
clip.

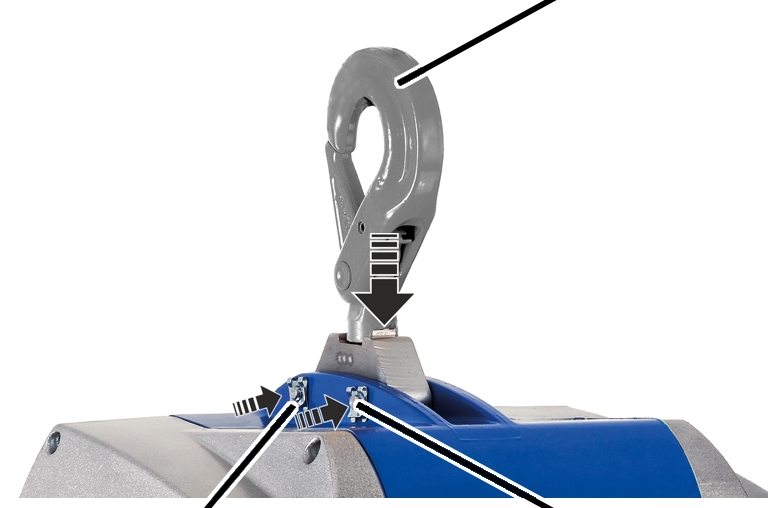

If required, the chain hoist can be installed with an optional suspension hook.
|
|
Suspension hook |
|
| |
|
SL safety clip |
Bolt |
Insert bolts (2x).
Secure bolts with SL safety
clips (2x).
|

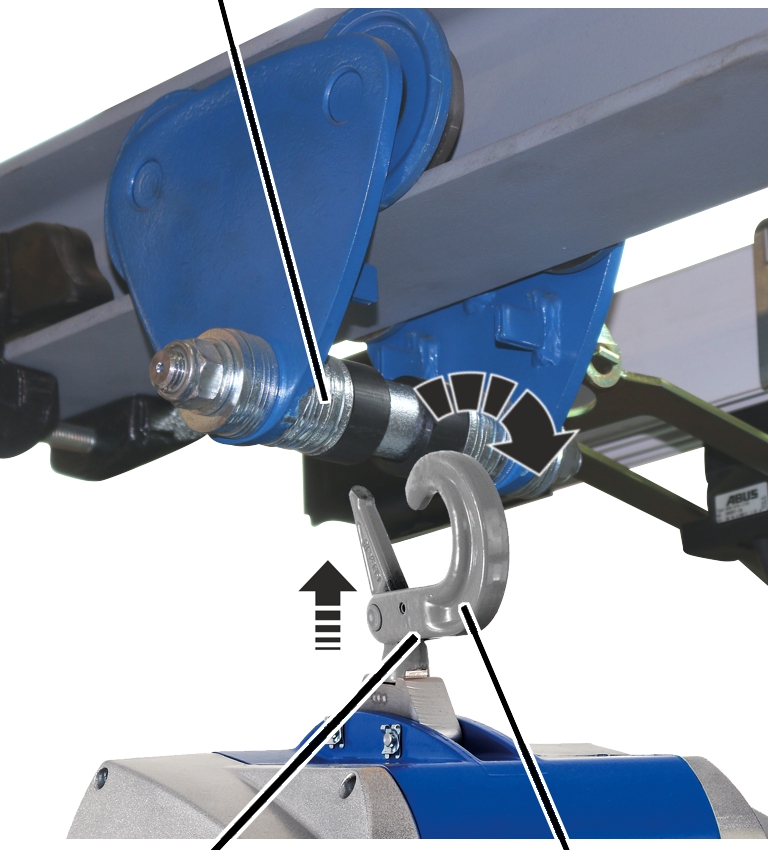

Supporting structure |
|
|
| |
|
Safety device |
Suspension hook |
Undo the
safety device and open the suspension hook.
Lift the chain hoist and attach
it under the supporting structure, under the trolley or under the crane.
Close the suspension hook over
an appropriate anchorage or the travelling gear bolt of the trolley.
